2007 Chevrolet Cobalt Remote Start Tips


Post ReplyPost New Topic
< Prev Topic Next Topic >
hondaoskar
Member - Posts: 5
Member spacespace
Joined: December 28, 2010
Location: Quebec, Canada
Posted: December 28, 2010 at 4:55 PM / IP Logged

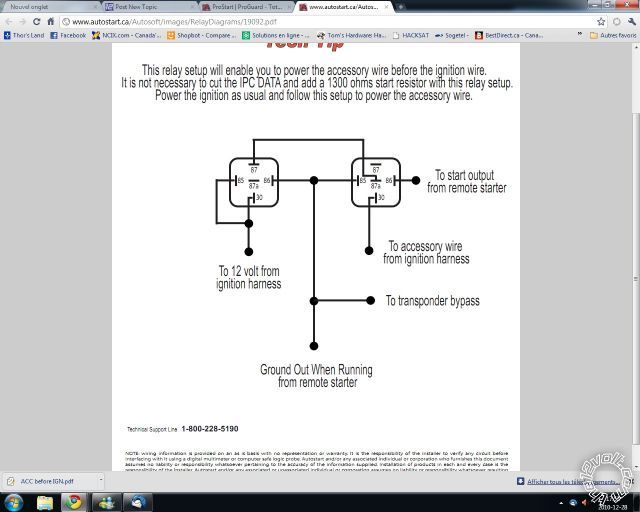

Hi, I installed today a R/S on a Chevrolet Cobalt 2007 with a prostart. Car wont start rs because sequence of rs. ACC must be on before IGNITION. So it need two extra relays .2007 Chevrolet Cobalt Remote Start Tips -- posted image.
and for others wires
FUNCTION     DATACOLOR     LOCATION     POLARITY     PICTURE
+12 VOLTS     RED / BLACK     BODY CONTROL MODULE     +
Comments: BCM is located in central console below climate control on the passenger side. Wire is located in the red connector. Can also use RED / black at the power steering module below the steering column.
IGNITION     YELLOW     IGNITION HARNESS     +
ACCESSORY     BROWN     IGNITION HARNESS     +
STARTER     N/A     SEE NOTES     SEE NOTES
Comments: No connection, when accessory shuts down, vehicle cranks by itself. PASSLOCK II new generation and Passkey 3+. You can use the ACC before IGN schematic.
TACHOMETER     ODD WIRE AT COILS     COIL     AC
PARKING LIGHTS     BROWN / WHITE     BODY CONTROL MODULE     -
Comments: BCM is located in central console below climate control on the passenger side. Wire is located in the left connector.
BRAKESWITCH     LIGHT BLUE     BRAKE SWITCH     +
Comments: Can also be found at the BCM in the left connector.
PARKING BRAKE     LIGHT BLUE     BODY CONTROL MODULE     -
Comments: BCM is located in central console below climate control on the passenger side. Wire is located in the bottom connector.
LOCK     WHITE     DRIVER'S KICK PANEL OR BODY CONTROL MODULE     MULTIPLEX
Comments: Use a straight negative trigger to lock. BCM is located in central console below climate control on the passenger side. Wire is located in the bottom connector.
UNLOCK     WHITE     DRIVER'S KICK PANEL OR BODY CONTROL MODULE     MULTIPLEX
Comments: To unlock, ground through 1500 ohms resistor. BCM is located in central console below climate control on the passenger side. Wire is located in the bottom connector.
TRUNK RELEASE     TAN     TRUNK RELEASE SWITCH     -
ARM     ARM WITH LOCK AND OPENNED DOOR     SEE NOTES     N/A
Comments: To arm, trigger left front door switch while locking.
DISARM     DISARM WITH IGNITION     SEE NOTES     N/A
Comments: The factory remote will still work during remote start. No external disarm capability but will disarm by itself upon remote start.
HORN     TAN     BODY CONTROL MODULE     -
Comments: BCM is located in central console below climate control on the passenger side. Wire is located in the left connector.
DOORPIN     SEPARATE DOORPIN     BODY CONTROL MODULE     -
Comments: BCM is located in central console below climate control on the passenger side.
LEFT FRONT DOORPIN     GRAY/BLACK     BODY CONTROL MODULE     -
Comments: Located in the bottom connector.
PASSENGER'S DOORPINS     TAN/WHITE     BODY CONTROL MODULE     -
Comments: Located in the bottom connector.
TRUNK PIN     ORANGE / BLACK     BODY CONTROL MODULE     -
Comments: Located in the bottom connector.
SINGLE WIRE CAN     GREEN     DIAGNOSTIC CONNECTOR     DATA SIGNAL
PASSLOCK DATA     WHITE     IGNITION HARNESS     DATA SIGNAL
Comments: Can also be found at the BCM in the left connector at pin #56.
PASSLOCK GROUND     WHITE/ BLACK     IGNITION HARNESS     -
TRANSPONDER'S SECURITY LIGHT     GREEN     BODY CONTROL MODULE     N/A
Comments: BCM is located in central console below climate control on the passenger side. Wire is located in the left connector at pin #11.
Security: OEM ALARM,PASSLOCK II,TRANSPONDER
Comments:
I put a transponder key on ignition barrel with two tayraps and all is done !
Oskar
hondaoskar
Member - Posts: 5
Member spacespace
Joined: December 28, 2010
Location: Quebec, Canada
Posted: December 30, 2010 at 10:34 AM / IP Logged
maybe most use parking light output (-) than ground out when runnig with prostart rs . I try it this or next week.
Oskar
