latched on/off output, 2 momentary inputs

Home / the12volt's Install Bay / Relays / latched on/off output, 2 momentary inputs (

Topic Closed)

Welcome Guest :)

Members

Next Page > < Prev Topic Next Topic >

woodsbuggy3

Member - Posts: 3

Joined: April 08, 2011

Location: Ohio, United States

Posted: April 11, 2011 at 10:39 AM / IP Logged

I want to use the circuit below but I need both pulsed triggers to be + instead of - , how would I go about doing that?

latched on/off output, 2 momentary inputs -- posted image.

howie ll

Pot Metal - Posts: 16,466

Joined: January 09, 2007

Location: United Kingdom

Posted: April 11, 2011 at 11:11 AM / IP Logged

Make the red wire in the diagram go to ground.

woodsbuggy3

Member - Posts: 3

Joined: April 08, 2011

Location: Ohio, United States

Posted: April 11, 2011 at 11:22 AM / IP Logged

Then what do I do with 85 on the center relay? just wire it to + ?

I guess I was afraid that would break the latching function?

howie ll

Pot Metal - Posts: 16,466

Joined: January 09, 2007

Location: United Kingdom

Posted: April 11, 2011 at 12:25 PM / IP Logged

If you want a negative output leave it as it is, if you want a positive output, make the black in the diagram positive. This isn't rocket science.

woodsbuggy3

Member - Posts: 3

Joined: April 08, 2011

Location: Ohio, United States

Posted: April 11, 2011 at 12:35 PM / IP Logged

I know, its just been a long time since I have done this stuff! I appreciate your help.

So this is what I want then, right?

latched on/off output, 2 momentary inputs -- posted image.

hotwaterwizard

Silver - Posts: 1,350

Joined: December 11, 2003

Location: California, United States

Posted: April 13, 2011 at 12:34 AM / IP Logged

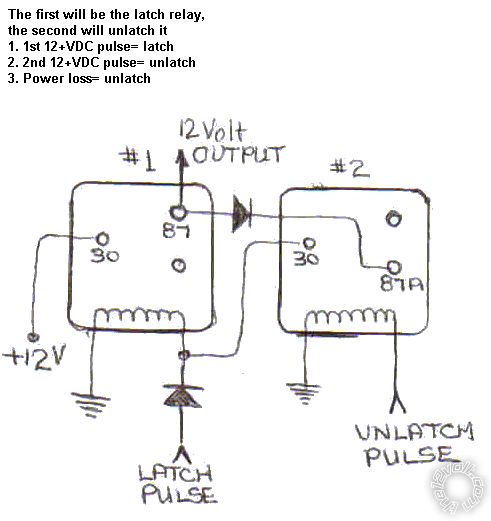

latched on/off output, 2 momentary inputs -- posted image.

John DeRosa (Hotwaterwizard)

Stockton California

When in doubt, try it out !

Search for other posts by hotwaterwizard

the12volt

Administrator - Posts: 3,955

This member has made a donation to the12volt.com. Click here for more info.

This member has been recognized as an authority in Electrical Theory. Click here for more info.

This member has been recognized as an authority in Mobile Audio and Video. Click here for more info.

This member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.

Joined: March 07, 2002

Location: Louisiana, United States

Posted: April 13, 2011 at 12:53 AM / IP Logged

woodsbuggy3 wrote:

I want to use the circuit below but I need both pulsed triggers to be + instead of - , how would I go about doing that?

latched on/off output, 2 momentary inputs -- posted image.

Connect the terminals in the diagram that go to the negative pulses to turn on and off to ground (terminal 86 of the first relay and terminal 85 of the third relay). Terminal 85 of the first relay and terminal 86 of the third relay will no longer go to a constant 12V+ source. Instead, terminal 85 of the first relay will be your positive input to turn on and terminal 86 of the third relay will be your positive input to turn off.

When i get a moment, I'll draw one to add to the database.

the12volt • Support the12volt.com

the12volt

Administrator - Posts: 3,955

Joined: March 07, 2002

Location: Louisiana, United States

Posted: April 13, 2011 at 10:54 PM / IP Logged

https://www.the12volt.com/relays/relaydiagram63.html

the12volt • Support the12volt.com

howie ll

Pot Metal - Posts: 16,466

Joined: January 09, 2007

Location: United Kingdom

Posted: April 14, 2011 at 1:36 AM / IP Logged

Er guys were running around in circles here, 12volt and HWW you're both correct but this is what I told the poster to do originally!

the12volt

Administrator - Posts: 3,955

Joined: March 07, 2002

Location: Louisiana, United States

Posted: April 14, 2011 at 1:42 AM / IP Logged

Howie, read what the op wrote and your replies again. He was asking for positive input pulses. Making the red wire go to ground is not the solution. See the diagram I linked to in my previous post. https://www.the12volt.com/relays/relaydiagram63.html

the12volt • Support the12volt.com
