schmoo

Copper - Posts: 62

Joined: April 21, 2005

Location: Canada

Posted: November 26, 2011 at 8:56 PM / IP Logged

trying to connect my factory seat heater controls to a remote start. I have fopund info that shows wht/blue and grey / YELLOW as the wires going into the heater module. But testing shows a change on two wires in the 8 volt range(output side?) Any insite? Don't really want to mess up the heater module on this one.(it's cold up here)

a true canadian eh!

Back to Top

schmoo

Copper - Posts: 62

Joined: April 21, 2005

Location: Canada

Posted: November 26, 2011 at 8:57 PM / IP Logged

some places say positive, while others say its negative. it rest at 10 volts and goes to ground when you press the factory button, but is this just the input side before the buttons or is it the output?

a true canadian eh!

Back to Top

Mike M2

Platinum - Posts: 2,652

Joined: June 29, 2005

Location: United States

Posted: November 26, 2011 at 9:12 PM / IP Logged

Can't help with your Q, but "heat seaters" made me chuckle...

Mike M2

Tech Manager

CS Dealer Services

Back to Top

howie ll

Pot Metal - Posts: 16,466

Joined: January 09, 2007

Location: United Kingdom

Posted: November 27, 2011 at 7:44 AM / IP Logged

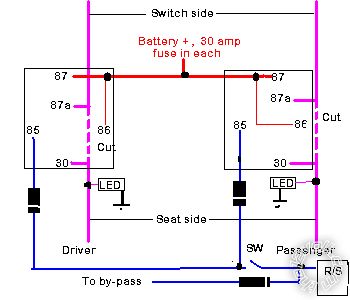

Mike would that have anything to do with heat seekers? Or have I lost the plot? Poster here's a way to do it by avoiding the BCU just go directly to the element pos wires.

The switch lower right is optional allows you to turn it off in summer, 12v LEDs are optional but the 3 diodes, 1N4004 AREN'T.


Back to Top
