remote start, 03 gmc sierra?


Post ReplyPost New Topic
< Prev Topic Next Topic >
jd_21
Member - Posts: 30
Member spacespace
Joined: November 07, 2005
Location: Canada
Posted: December 19, 2011 at 7:53 PM / IP Logged
Hi there, I was just wondering on a 2003 gmc sierra 1500 base model truck, if i am wiring up the door locks to work with a remote start system. Is all i have to do is supply a ground to the lt. blue and white wires going into the BCM to have the doors lock and unlock? If anyone could give me some ideas on what needs to be done here that would be great. Thanks
jd_21
Member - Posts: 30
Member spacespace
Joined: November 07, 2005
Location: Canada
Posted: December 19, 2011 at 8:07 PM / IP Logged

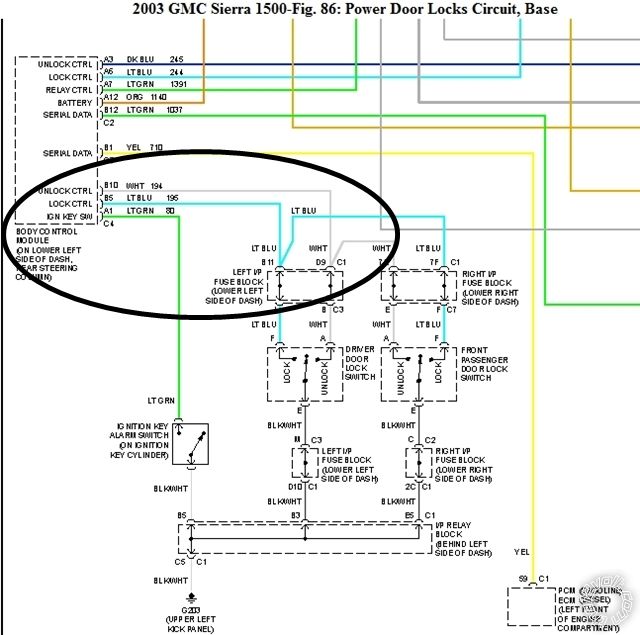

remote start, 03 gmc sierra? -- posted image.
hope you will see what wires im talking about in this image
smokeman1
Platinum - Posts: 1,588
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: September 14, 2009
Location: Wisconsin, United States
Posted: December 19, 2011 at 8:16 PM / IP Logged
What make/model is the remote start?
When all else fails, Read the Instructions
Support the12volt.com Make a Donation
jd_21
Member - Posts: 30
Member spacespace
Joined: November 07, 2005
Location: Canada
Posted: December 19, 2011 at 8:25 PM / IP Logged
It is a pro start remote starter. not sure of model if if it helps the part number is CT-5472TW and brief description of the system is 6 button 2-Way LCD AM Starter/Alarm/Keyless Entry (Auto/Man. Let me know if that is helpful. Its for my buddies truck and he purchased it at a Canadian Tire store.
jseibold
Copper - Posts: 98
Copper spacespace
Joined: December 14, 2008
Location: Illinois, United States
Posted: December 20, 2011 at 12:15 PM / IP Logged

I'm not sure if it makes a difference being a Canadian truck, but if it's like the US '03 model you should get yourself a bypass module that integrates with the vehicle's OBD2 plug (purple wire) and controls the locks and passlock 2 system.  To control the door locks without using a module, you will need to run wires into both the driver's and passenger's doors.  Your idea of zpping the blue and whte wires at the BCM only works on Sierras through '02.

Here is what DEI shows for that truck (US model):

If interface module is not available, refer to Tech Doc 1601.

The driver door lock/unlock motor wires are gray - tan (5 wire)
at the driver window switch, black 26 pin plug, pins 21 and 20.
The passenger door lock/unlock motor wires are gray - tan (5 wire)
at the passenger window switch, black 26 pin plug, pins 10 and 11.
The rear doors power lock/unlock wires are gray/black (-) - tan/black
(-) at the BCM, gray plug, pins A6 and A3. The BCM (Body Control Module)
 is under the driver dash. It has 6 plugs, the purple plug is on the back.

ON BASE MODELS, THE POWER LOCK - UNLOCK WIRES ARE LT. BLUE - WHITE (-) AT THE BCM, LT. BLUE PLUG, PINS B5 and B10.

If the truck is not truly a base model and you are not planning to use a bypass module,

here is a link that shows how to do the locks.

http://www.directechs.com/tech_docs/Document5868-603.pdf

jd_21
Member - Posts: 30
Member spacespace
Joined: November 07, 2005
Location: Canada
Posted: December 20, 2011 at 4:50 PM / IP Logged
everything is already installed and working except the door locks so i just need to get those working. The link u gave me to open in the above post i can not see the PDF file. I think it needs you to be logged in to view it.
jd_21
Member - Posts: 30
Member spacespace
Joined: November 07, 2005
Location: Canada
Posted: December 20, 2011 at 6:57 PM / IP Logged
Would anyone else happen to have any information that I can use for this situation? Any little bit helps. Thanks

Sorry, you can NOT post a reply.
This topic is closed.
