2012 Lincoln MKZ Remote Start Pictorial


Post ReplyPost New Topic
< Prev Topic Next Topic >
kreg357
Platinum - Posts: 7,489
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Electrical Theory. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: January 30, 2009
Location: New York, United States
Posted: February 17, 2012 at 8:54 PM / IP Logged

This is a pictorial for the 2010 – 2012 Lincoln MKZ.  The sister vehicles, Ford Fusion

and Mercury Milan, should be the same.

The pictures are from a 2012 Lincoln MKZ.  This car has a standard key ignition and

the factory alarm.  Install was for Remote Start with Keyless Entry.

Disassembly:

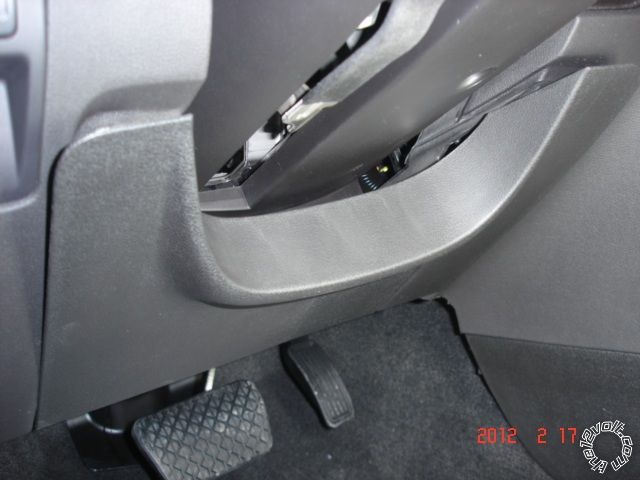

Remove the drivers side lower dash panel by pulling in straight away from the dash.
It has four snap fasteners, one at each corner.

2012 Lincoln MKZ Remote Start Pictorial -- posted image.

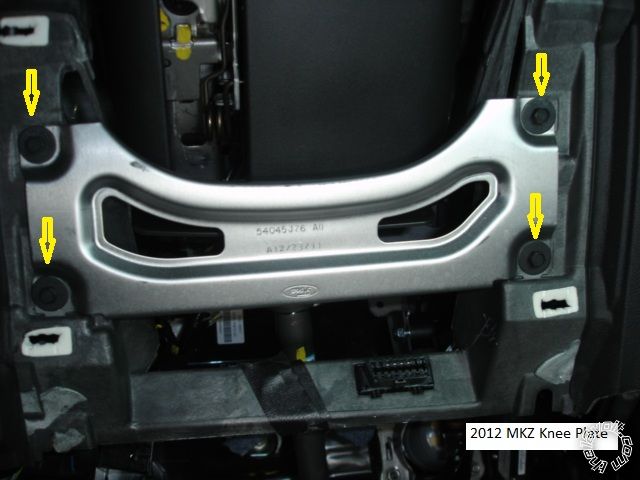

Remove the knee plate by removing the four 10MM bolts indicated.

2012 Lincoln MKZ Remote Start Pictorial -- posted image.

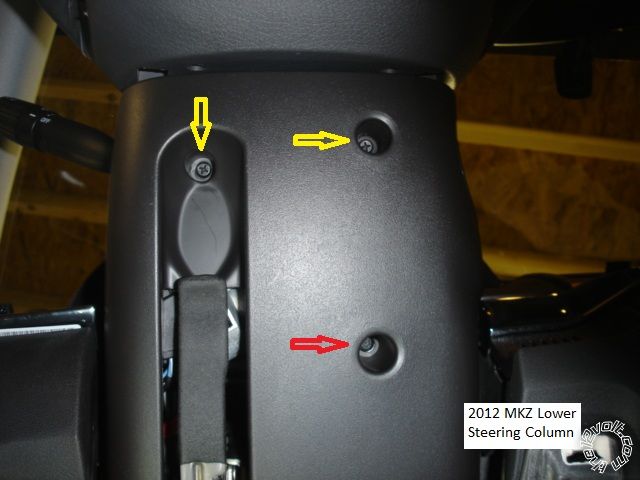

Remove the lower steering column cover by removing two Phillips (screws shown by the

Yellow arrows) and one Torx T-20 machine screw ( Red arrow ).  Separate from the upper cover and remove.

2012 Lincoln MKZ Remote Start Pictorial -- posted image.

Pop out the trunk release switch panel by reaching behind the panel and pressing on the four retaining tabs

( two on top & two on bottom ).    Remove the passengers kick panel cover by pulling it straight rearward
and then up from the door sill.

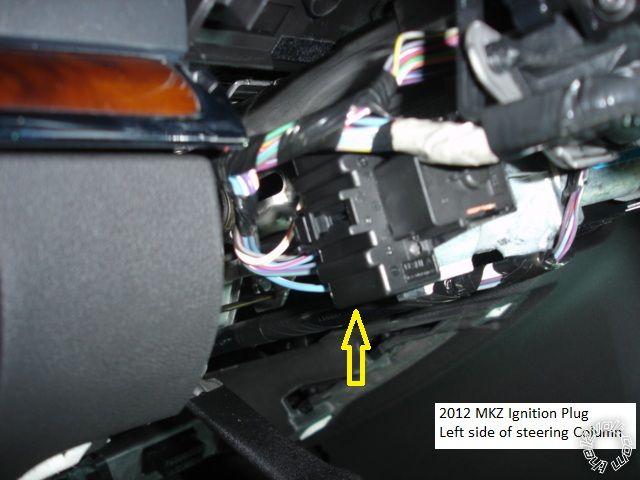

Here is a picture of the left side of the steering column and the ignition connector.

2012 Lincoln MKZ Remote Start Pictorial -- posted image.

Here is the ignition plug with the wires marked.

2012 Lincoln MKZ Remote Start Pictorial -- posted image.

This a picture of the Horn wire at the steering column connector.

2012 Lincoln MKZ Remote Start Pictorial -- posted image.

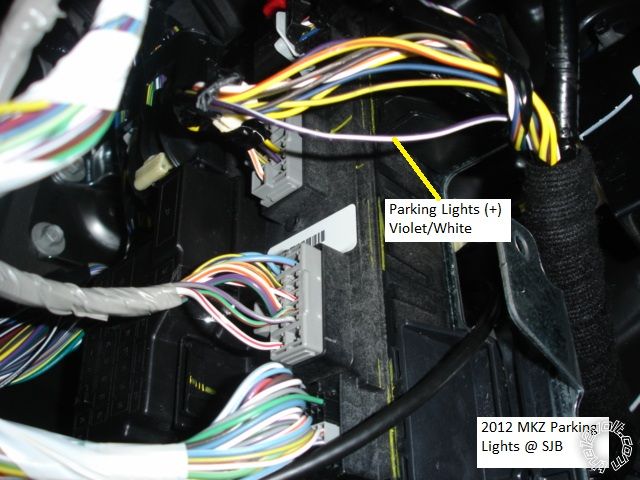

This is a picture of the Parking Light wire at the Smart Junction  Box under drivers dash.

2012 Lincoln MKZ Remote Start Pictorial -- posted image.

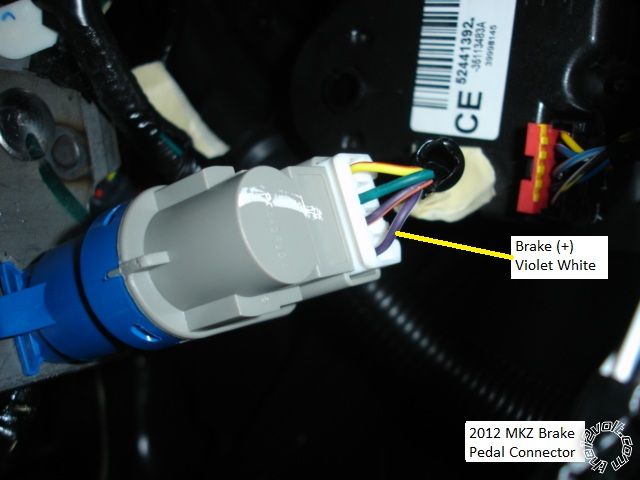

This is a picture of the Brake wire at the brake pedal switch.

2012 Lincoln MKZ Remote Start Pictorial -- posted image.

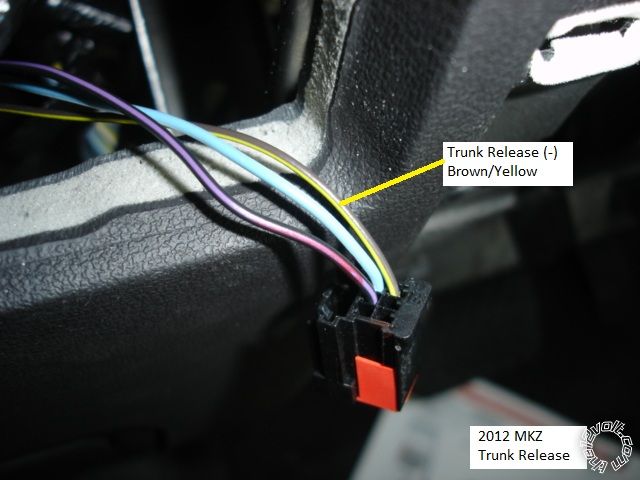

Here is a picture of the Trunk Release plug ( switch panel removed ).

2012 Lincoln MKZ Remote Start Pictorial -- posted image.

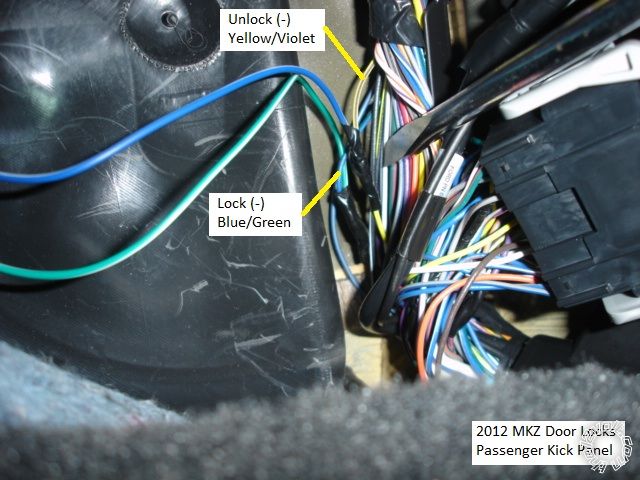

This is picture of the door lock wires in the passenger kick panel.

2012 Lincoln MKZ Remote Start Pictorial -- posted image.

Here is a picture of the PATS transponder connector.

2012 Lincoln MKZ Remote Start Pictorial -- posted image.

Important tid-bits…

This car had a “HA” stamped key.  Ford is in the process of switching to 80 bit encryption.  Any key

 with “SA” or “HA” is capable of 80 Bit Encryption.  The easy test to verify 40 or 80 bit is as follows:
Connect a DMM to the PATS power wire ( Light Blue/Black ).
Switch OFF without key = 0V
Insert a working key in to the ignition switch.
Switch OFF with key inserted = 0V     40 Bit Encryption
Switch OFF with key inserted = 12V   80 Bit Encryption
If you have 80 Bit, you will need a bypass module capable of 80 Bit systems.  Currently DEI PKTX,
Fortin EVO-Ride or the iDatalink KLON process.
If you have 40 Bit, any bypass module capable of PATS3 should work.   I used a DEI
1100F bypass module ( ADS TB with ADS TB FM firmware ) but there is one important
wiring change.  The bypass modules W2W ground input must come from the PATS
Ground wire ( BLACK/ Violet ).

Factory Alarm

To disarm the Factory Alarm, the remote start must pulse the Ignition wire,  the bypass module ( GWR in W2W mode )

and, according to some, the Accessory wire.  Some remote starters have a programming option to do this.  The Ultra Start
U1272 I used has an option to pulse GWR and Accessory with a disarm.  I wired a relay using the disarm output to pulse
the vehicles Ignition wire to achieve a Factory Alarm disarm.

One Touch Start

This car has one touch start with built in anti-grind.  If the R/S system is capable, a fixed crank time will work fine.

Soldering is fun!
racerjames76
Silver - Posts: 581
Silver spacespace
Joined: November 22, 2008
Location: Ohio, United States
Posted: February 18, 2012 at 1:49 PM / IP Logged
Very good write up on these cars. Havent done the MKZ, but I have done the fusion and milan. They are pretty much identical.
To master and control electricity is perfection. *evil laugh*
pts760
Copper - Posts: 403
Copper spacespace
Joined: December 11, 2009
Location: United States
Posted: February 22, 2012 at 2:04 AM / IP Logged
If you pulse the ignition/accessory, granite it disarms the alarm but turns the radio on as well. If you bump unlock by accident in your pocket this could be a problem.
I drink current, eat ohms, and bleed voltage
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: February 24, 2012 at 1:00 AM / IP Logged
Personally I think you are doing a grand job and Racer James, know one has a go, to critique something after the event is only human nature especially if they thought of it first 2012 Lincoln MKZ Remote Start Pictorial -- posted image.
kreg357
Platinum - Posts: 7,489
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Electrical Theory. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: January 30, 2009
Location: New York, United States
Posted: March 29, 2012 at 8:56 PM / IP Logged

Info update:

Excellent point concerning the remote starters disarm signal ( as wired - a pulse to ACC, IGN and transponder bypass )

causing the cars radio to come on ( if it was left on when the vehicle was last driven and exited ).  An errant unlock
could indeed cause problems.   Had the customer do a couple of tests to make sure the auto shutdown happened and
the actual time period involved.  At exactly the 10 minute mark the radio is turned off.  The doors do not automatically
re-lock.

Soldering is fun!
cmk0808ny
Copper - Posts: 203
Copper spacespace
Joined: June 02, 2007
Posted: March 31, 2012 at 4:43 PM / IP Logged
i believe you only need to pulse ignition and disarm only of you do an alarm/ keyless with non factory remotes. a one button will disarm when you remote start with transponder and ignition.
lucasoil4u
Copper - Posts: 317
Copper spacespace
Joined: May 11, 2009
Location: Minnesota, United States
Posted: July 17, 2013 at 3:08 PM / IP Logged
Are you pulsing the ignition to wake up the GEM module?
kreg357
Platinum - Posts: 7,489
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Electrical Theory. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: January 30, 2009
Location: New York, United States
Posted: July 17, 2013 at 6:37 PM / IP Logged
No, the Ignition pulse was only for the Factory Alarm disarm. This car did not exhibit the typical Ford GEM issue with the door Unlock going to sleep and needing a wake-up trigger. Think the newer Fords with the Smart Junction Box ( SJB ) don't have that problem.
Maybe an installer with a Ford dealer account can chime in with more info.
Soldering is fun!
pts760
Copper - Posts: 403
Copper spacespace
Joined: December 11, 2009
Location: United States
Posted: July 18, 2013 at 2:16 PM / IP Logged
kreg357 wrote:
No, the Ignition pulse was only for the Factory Alarm disarm. This car did not exhibit the typical Ford GEM issue with the door Unlock going to sleep and needing a wake-up trigger. Think the newer Fords with the Smart Junction Box ( SJB ) don't have that problem.
Maybe an installer with a Ford dealer account can chime in with more info.
I've done hundreds of newer ford's with the SJB and have never had to wake it up for lock/unlock
I drink current, eat ohms, and bleed voltage
kreg357
Platinum - Posts: 7,489
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Electrical Theory. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: January 30, 2009
Location: New York, United States
Posted: July 19, 2013 at 10:47 AM / IP Logged
Thank you, pts760, for the helpful info / confirmation. 2012 Lincoln MKZ Remote Start Pictorial -- posted image.
Soldering is fun!
