2003 dodge dakota alarm/ remote start

Home / the12volt's Install Bay / Car Security and Convenience / 2003 dodge dakota alarm/ remote start (

Topic Closed)

Welcome Guest :)

Members

< Prev Topic Next Topic >

dodgethis03

Member - Posts: 10

Joined: October 06, 2011

Location: Washington, United States

Posted: April 20, 2012 at 11:39 AM / IP Logged

I am trying to put a viper 5601 alarm/ remote start into my truck. It is a quad cad truck but I am a little stuck on how to wirer the door locks. I know it is calling for a 300 ohm and 820 ohm resistors. I have also read somewhere that says you may need some relays also. Any help would be great.

howie ll

Pot Metal - Posts: 16,466

Joined: January 09, 2007

Location: United Kingdom

Posted: April 20, 2012 at 12:48 PM / IP Logged

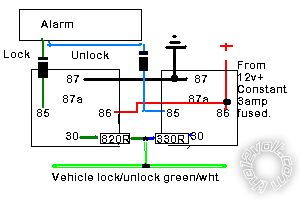

There's a 451 module for Chrysler from DEI but if not use this diagram:-


dodgethis03

Member - Posts: 10

Joined: October 06, 2011

Location: Washington, United States

Posted: April 20, 2012 at 1:17 PM / IP Logged

Thanks a lot. I will try that. Thank you again.

dodgethis03

Member - Posts: 10

Joined: October 06, 2011

Location: Washington, United States

Posted: April 20, 2012 at 1:22 PM / IP Logged

What are those things right after the alarm?

chev104275

Gold - Posts: 1,428

This member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.

Joined: November 26, 2007

Location: Massachusetts, United States

Posted: April 20, 2012 at 1:28 PM / IP Logged

Diodes

If i Can't Install it I Don't need it Joe

dodgethis03

Member - Posts: 10

Joined: October 06, 2011

Location: Washington, United States

Posted: April 20, 2012 at 2:08 PM / IP Logged

So I am guessing that the dei 451 is going to be the fastest way to go. Found one that comes with resistors and it looks like it will plug right into my alarm.
