driver's door priority dei 451m setup?


Post ReplyPost New Topic
< Prev Topic Next Topic >
mmh1
Copper - Posts: 117
Copper spacespace
Joined: May 10, 2005
Location: United Kingdom
Posted: June 05, 2012 at 4:33 PM / IP Logged
Hi All,
I'm trying to add power door locks to a car that has none at all.
I've added 3 x 2wire door lock actuators (1 in each door and 1 in the trunk).
What I would like to do is have a setup with a Drivers Door Priority ('Progressive Unlocking' as the alarm has 2x unlock wires and 1x lock wire all negative pulse).
I have a couple of DEI 451M modules and was wondering whether anyone can guide me to achieve the setup with DDP?
Many thanks,
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: June 06, 2012 at 4:18 AM / IP Logged

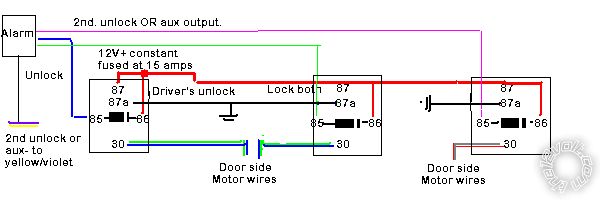

Use this, fuse at 15 amps per two doors, this represents 1.5 x 451s!
Thin red going to each 451 must be powered as well it's 86 on those relays. F7C_priority_unlock.bmp
All BROWN / blacks and WHITE/ blacks to ground, purple and PURPLE / blacks to power source.
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: June 06, 2012 at 6:52 AM / IP Logged

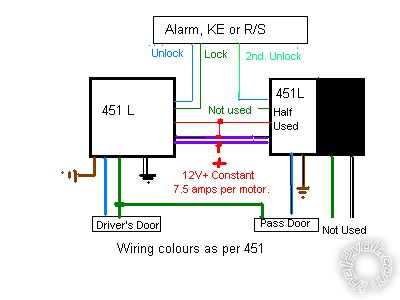

Sorry this diagram might be easier to understand:-
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: June 06, 2012 at 6:56 AM / IP Logged
Use a 25 amp fuse and wire the boot unlock in parallel with the passenger door, or a second relay as the boot, you can't split a 451 unfortunately.
I usually keep the boot out of the system, use a separate "trunk solenoid".
