adding cockpit speakers to stereo


Post ReplyPost New Topic
< Prev Topic Next Topic >
peaboy
Member - Posts: 8
Member spacespace
Joined: October 28, 2012
Location: Mexico
Posted: October 28, 2012 at 10:43 PM / IP Logged

I have a Kenwood KDC-X794 which can handle 4-8 Ohm speakers and will deliver 50Wx4.

I currently have salon speakers (4 Ohm) on the front channel and aft cabin speakers on the rear channel (4 Ohm). I want to add a set of cookpit speakers to the rear channel (also 4 ohm). I know if I wire the new speakers in parallel with the aft cabin I will get 8 ohms and everything is fine. But the problem with that is I also want to be able to turn on\off the cookpit speakers or the aft cabin speakers so that I can have all four rear speakers or just one set of them on. Attached is a diagram which shows basically what each state should look like from a wiring perspective. I'm not sure the proper way top draw the switch schematically, but I think you get the idea. There don't seem to be any true 12V speaker selectors on the market. Anyone know of a switch which can handle this kind of configuration?

adding cockpit speakers to stereo -- posted image.

Thanks!

-patrick

Ween
Platinum - Posts: 1,303
Platinum spacespace
Joined: August 01, 2004
Location: Illinois, United States
Posted: October 28, 2012 at 11:38 PM / IP Logged
hi,
use a SPDT 3 position center off switch, and 2 DPDT(or DPST) 12 volt relays, 5 amp contacts should be more than adequate. have the normally open contacts of each relay wire across each pair of speakers. wire the relay coils to the switch, each relay to one side of the switch.
the relays will shunt the pair of speakers they are connected to, giving you cookpit, both, and aft cabin settings.
mark
peaboy
Member - Posts: 8
Member spacespace
Joined: October 28, 2012
Location: Mexico
Posted: October 29, 2012 at 4:19 AM / IP Logged

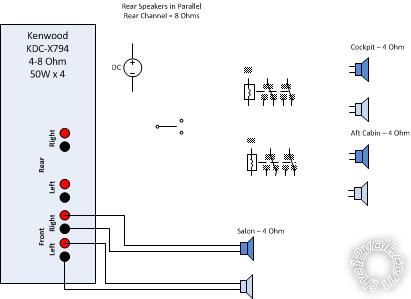

Thanks a lot for the help. I modified my drawing to have two DPDT RElays and a SPDT switch and a 12VDC power surce. I've spent several hours trying to figure out how this shoudl be wired and I guess I'm not understanding it.

adding cockpit speakers to stereo -- posted image.

Can you walk me through how the output of the deck connects to the relays and then how the speakers connect to the relay. I think each relay will be controll Rear Left and Rear Right and if that's the case I could see how the relay could toggle between each pair of speakers by hooking one set to the NC and one to the NO on each relay, but I'm not seeing how I get Aft, cookpit, and Aft + cookpit.

I'm not that up on how relays work though.

Thanks,

Patrick

Ween
Platinum - Posts: 1,303
Platinum spacespace
Joined: August 01, 2004
Location: Illinois, United States
Posted: October 29, 2012 at 6:30 PM / IP Logged

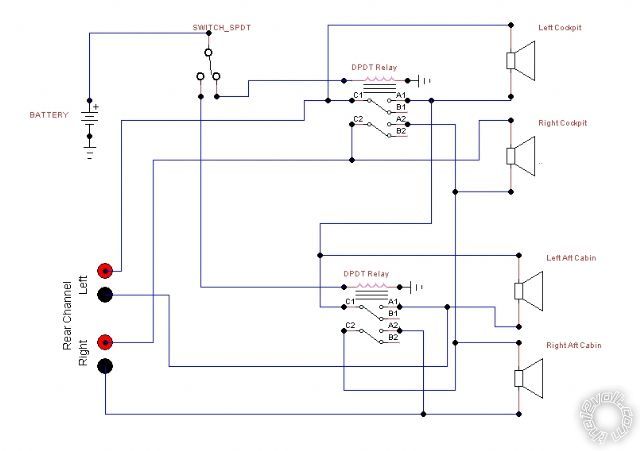

adding cockpit speakers to stereo -- posted image.
this should work
peaboy
Member - Posts: 8
Member spacespace
Joined: October 28, 2012
Location: Mexico
Posted: October 29, 2012 at 9:31 PM / IP Logged
I NEVER would have figured that out. I can't wait to get the pieces and give it shot. I'm on the boat in Mexico so getting things can take soem time, but I will definitely let you know how it goes.
Thanks a lot!
-patrick
peaboy
Member - Posts: 8
Member spacespace
Joined: October 28, 2012
Location: Mexico
Posted: November 23, 2012 at 1:51 PM / IP Logged

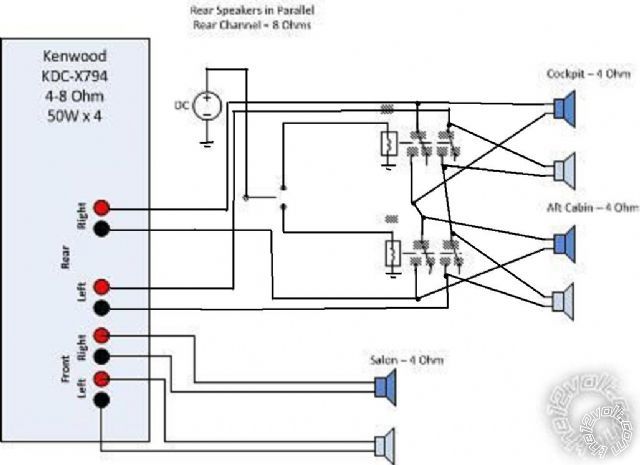

Finally got around to updating my drawing. TinyCad somuch better than Visio for this!
This week I'll be off to Steren and Autozone in Puerto Vallarta to try and find the parts. If not, then I'll have friends bring them in from the US.adding cockpit speakers to stereo -- posted image.
peaboy
Member - Posts: 8
Member spacespace
Joined: October 28, 2012
Location: Mexico
Posted: November 23, 2012 at 2:00 PM / IP Logged
I should mention one thing. I'm not 100% sure that SPDT id the right icon. It should be a SPDT ON-OFF-ON. I'm not sure if that is conveyed here or not.
Ween
Platinum - Posts: 1,303
Platinum spacespace
Joined: August 01, 2004
Location: Illinois, United States
Posted: November 23, 2012 at 5:48 PM / IP Logged
put an extra circle between the lower two
peaboy
Member - Posts: 8
Member spacespace
Joined: October 28, 2012
Location: Mexico
Posted: December 27, 2012 at 5:26 PM / IP Logged
OK, finally got all the pieces and there was no surf so I got around to working on this.
Its all wired up, but its not working as planned. With it all wired up ALL the speakers are on regardless of the position of the switch. When I flip the switch though, I do see the green indicator relay and I do see the relay close. Very confusing...
The relays are IDEC RH2B-UL and the switch is an Amico 3 position on/off/on SPDT. I numbered the relay connections on the drawing to match the socket in the IDEC documentation.
adding cockpit speakers to stereo -- posted image.
You can see more pics in this Flickr Set for the Speaker Switch.
Any ideas?
Thanks a lot,
patrick
Ween
Platinum - Posts: 1,303
Platinum spacespace
Joined: August 01, 2004
Location: Illinois, United States
Posted: December 27, 2012 at 9:29 PM / IP Logged
do the relays have sockets with screw terminals? manually add jumper wires to mimic the operation of the relay contacts to see if the speakers mute. or unplug relay and insert wires?
