hondaek

Member - Posts: 14

Joined: January 30, 2013

Location: Colorado, United States

Posted: February 03, 2013 at 1:03 AM / IP Logged

i just recently installed a new Viper 350 responder 2way alarm. and just purchased the the DEI 516L voice module. everything looks easy to wire up.

just wondering on the wires

H1/6 Blue/White

H1/7 RED / White

H1/8 BLACK/ White

where do these connect to? i know you can record a custom message. which i want to do for custom arm, and disarm messages. im just completely lost in to how to do that. any help would be greatly appreciated.

howie ll

Pot Metal - Posts: 16,466

Joined: January 09, 2007

Location: United Kingdom

Posted: February 03, 2013 at 3:16 AM / IP Logged

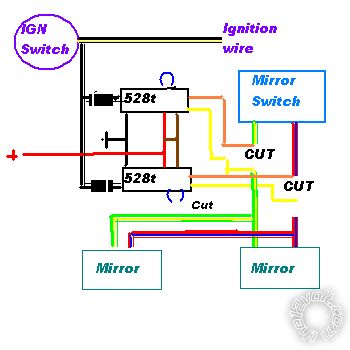

Look;- ign_mirror_fold.bmp

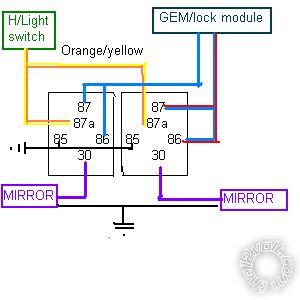

and here's another I found:-


You will need two timed aux outputs for the second, I don't thin k the 350 is sophisticated enough for it.

hondaek

Member - Posts: 14

Joined: January 30, 2013

Location: Colorado, United States

Posted: March 01, 2013 at 3:32 AM / IP Logged

thanks again howie!

well i found out that the DEI 516L does not let you over record "VIPER ARM" OR the prerecorded messages. So i ditched it, and was very lucky to score a Scytek true Mp3 siren.

which is soooo much better!!
