2007-2008 Honda CR-V Remote Start w/Keyless Pictorial


Post ReplyPost New Topic
< Prev Topic Next Topic >
kreg357
Platinum - Posts: 7,529
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Electrical Theory. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: January 30, 2009
Location: New York, United States
Posted: February 16, 2013 at 8:41 PM / IP Logged

This is a pictorial for a remote start with keyless entry system install on a 2007 Honda CR-V.  The 2008 model is the same.

The vehicle is a standard LX model with automatic transmission.  The LX model does not have a Factory Alarm system.  As

with all Honda's, the factory keyless entry system is disabled while the engine is running, so a remote start with keyless
entry is recommended.  This vehicle does not have "one-touch" starting so Tach Mode remote start operation is a good
idea.  The trunk unlocks with the other 4 doors.  Additionally, there is no built-in anti-grind so this might be a good option
to add with the remote starter.

There are many good transponder bypass modules available for this vehicle.  Since all of the wires are convenient and available,

a basic bypass module like the XpressKit PKALL, iDatalink ADS TBSL-KO, Fortin Key-Override-All or Honda SL3 are good choices.
If cost is a major consideration, the PKH34 is a reliable and less expensive alternative ( used for this install ).

This system I installed over 5 years ago and these pictures were taken during system un-install, prior to dealer trade-in.

Disassembly :

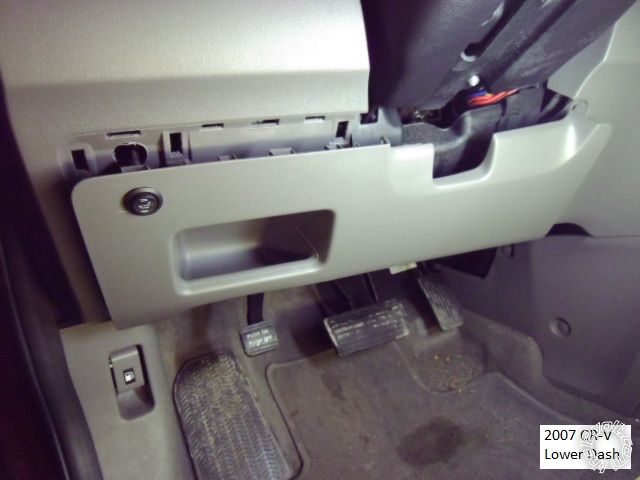

Remove the lower dash panel by pulling it straight away at the bottom and then at the top. There are no screw fasteners used,

just plastic snaps.  ( The heated seat control is non-factory. )

2007-2008 Honda CR-V Remote Start w/Keyless Pictorial -- posted image.

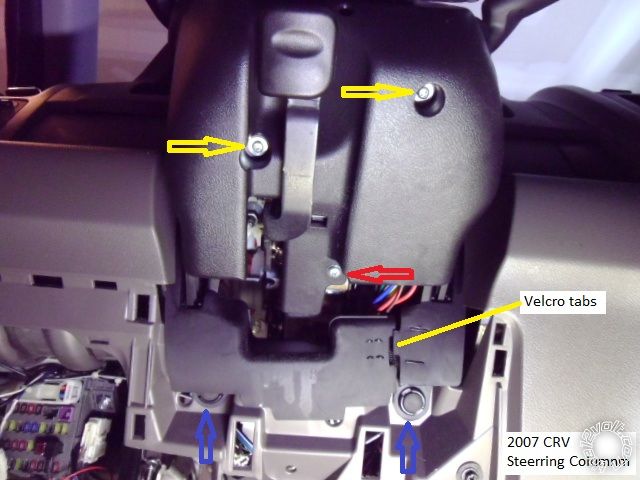

Remove the lower steering column cover by removing the 3 screws indicated ( Yellow's are the same while the Red one is a

machine screw.)

2007-2008 Honda CR-V Remote Start w/Keyless Pictorial -- posted image.

Gently squeze at the seems of the upper and lower halves to seperate and remove the steering column covers.   The rubber

shield can be opened for better access by separating the two sections at the Velcro split and removing the two poppers
indicated with blue arrows.

Wiring :

This is a picture of the main ignition and transponder connectors found at the ignition switch at the right side of the column.

Space is tight and wiring allowances should be made for the tilt / telescopic movements of the steering column.

2007-2008 Honda CR-V Remote Start w/Keyless Pictorial -- posted image.

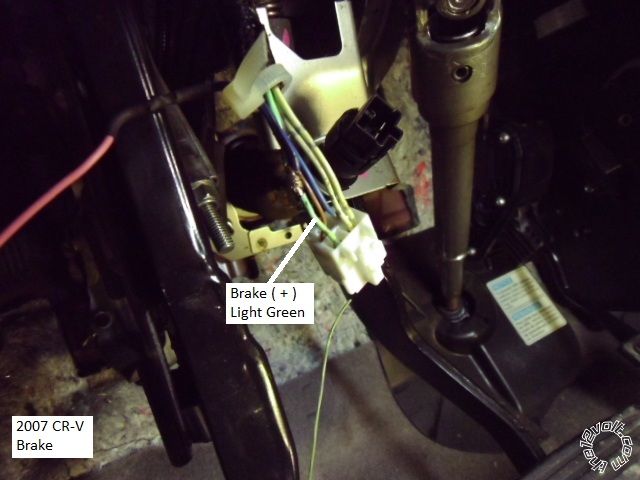

This is a photo of the brake wire ( connector removed from pedal switch in background ).

2007-2008 Honda CR-V Remote Start w/Keyless Pictorial -- posted image.

Here is a picture of the (+) parking light wire at the bottom middle connector on fuse box.  Also shown is the Domelight

supervision wire.  There is also a (-) Parking Light wire available at the headlight switch, not pictured.

2007-2008 Honda CR-V Remote Start w/Keyless Pictorial -- posted image.

This is a shot of the horn wire.

2007-2008 Honda CR-V Remote Start w/Keyless Pictorial -- posted image.

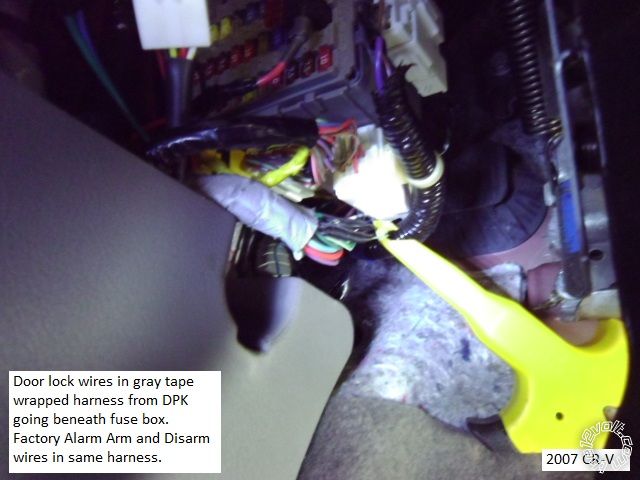

This is a photo of the door lock wire location.

2007-2008 Honda CR-V Remote Start w/Keyless Pictorial -- posted image.

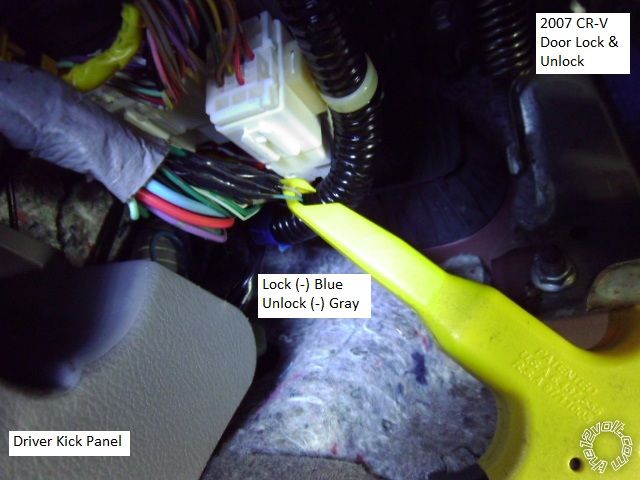

This is a close-up the lock wires.

2007-2008 Honda CR-V Remote Start w/Keyless Pictorial -- posted image.

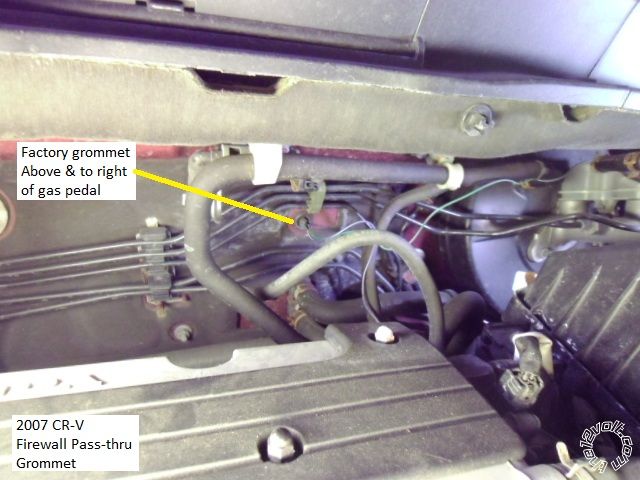

Firewall pass-thru for the tach and hood pin wires is found above the gas pedal, as shown below.

2007-2008 Honda CR-V Remote Start w/Keyless Pictorial -- posted image.

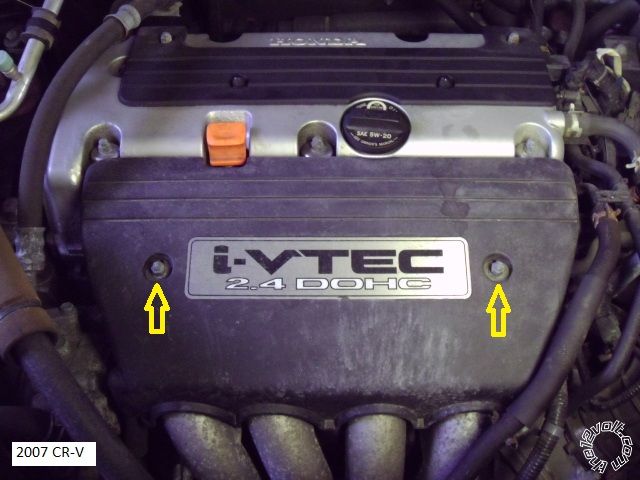

The F.I.'s are located below this engine cover.  Remove the two 10mm nuts indicated and lift the cover off.

2007-2008 Honda CR-V Remote Start w/Keyless Pictorial -- posted image.

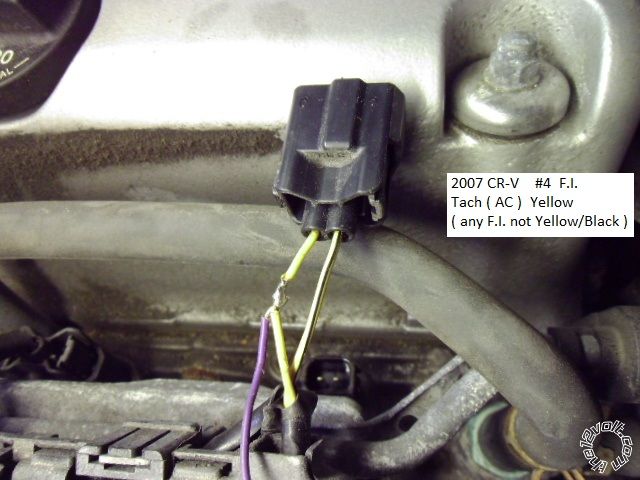

This is a picture of the F.I. tach signal wire ( connector removed ).

2007-2008 Honda CR-V Remote Start w/Keyless Pictorial -- posted image.

Please note that a properly soldered and insulated wire connection still works & shines after 5 years.  That won't be the

case for a T-Tap or ScotchLok connection.

Soldering is fun!
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: February 17, 2013 at 6:45 AM / IP Logged
Nice to see you using 33+ on those joints, just a thought remove (one at a time of course) those ignition connectors and slide some 9 mm (3/8") sleeving over the solder joints. I was doing a Nissan yesterday with a similar plug and the thought occurred to me.
Great minds, amazing how your injector wiring is identical to mine.....
kreg357
Platinum - Posts: 7,529
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Electrical Theory. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: January 30, 2009
Location: New York, United States
Posted: February 17, 2013 at 9:44 AM / IP Logged
Excellent idea.  I wasn't sure if the 3/8" diameter heat shrink tube would make it over the de-pinned Honda spade terminal lug and still shrink enough to make a tight fit but with a wrap or two or Scotch Super 33+ first, it would work.  2007-2008 Honda CR-V Remote Start w/Keyless Pictorial -- posted image.
Soldering is fun!
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: February 17, 2013 at 10:00 AM / IP Logged
I was too lazy to do it yesterday   2007-2008 Honda CR-V Remote Start w/Keyless Pictorial -- posted image.
kreg357
Platinum - Posts: 7,529
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Electrical Theory. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: January 30, 2009
Location: New York, United States
Posted: February 17, 2013 at 10:05 AM / IP Logged
De-pinning the vehicles connectors can be time consuming and risky.
Soldering is fun!
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: February 17, 2013 at 10:10 AM / IP Logged
Yes but not at our level of competence, agree though about time consuming, it's why I didn't do it.
Let's face it, on my car, everything not soldered I'm using (expensive) Amp Sureseal and convoluted tubing under the hood. Would you do that for a customer with time and budget constraints?
kreg357
Platinum - Posts: 7,529
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Electrical Theory. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: January 30, 2009
Location: New York, United States
Posted: February 17, 2013 at 3:29 PM / IP Logged
Split loom tube, mercury tilt switches and soldered connections are standard.  Haven't had any requests for more but if the price is right...
Soldering is fun!
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: February 17, 2013 at 5:30 PM / IP Logged
I always keep to a certain standard, you don't want to be sl*gged off by the next techie who gets into that car.Fabric tape inside, especially on Euro cars, in fact Saturday's customer who works in electronics noticed me using it and was most pleased.
aaronrhorn
Member - Posts: 1
Member spacespace
Joined: January 31, 2015
Posted: January 31, 2015 at 11:43 AM / IP Logged
This has been very helpful for me. The only thing I'm stuck on is the door lock wires. Your picture shows blue and gray wires (which the DBALL2 manual agrees with) but I don't know if it is light blue or dark blue. There are dark blue and gray wires with silver marks on them (which I connected to without success. My tester registered change when I locked and unlocked) and there are smaller light blue and gray wires too.
Any chance anyone knows which wires it should be? Were they the really small wires or the larger?
Aaron
kreg357
Platinum - Posts: 7,529
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Electrical Theory. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: January 30, 2009
Location: New York, United States
Posted: January 31, 2015 at 4:11 PM / IP Logged
They are very thin gauge ( and fragile ).  Always test and locate all wires with a DMM ( or very computer safe test LED ).  PM sent.
Soldering is fun!
