disable door solenoid when alarm is activ

It would actually be safer all round to use an aux output timed to give them power only when the alarm is disarmed for about 1 minute. And then wire them through the ignition.

My native language is english. The purpose of this is because sometimes I accidentally press the buttons on my keys and open the doors while I'm not at the car. The alarm dosnt go off when the pooper pushes the door out, it dosnt push it far enough for the door jam switch to move only when you open the door the rest of the way by hand or if the shock sensor goes off. I also have an emergency switch located under my rocker ( typical spot) My aux output are all currently being used Thanks do much for the help!

I can disable the buttons on my remote but it's an awful pain and I forget to most of the time lol

You have used up all 9 POC outputs??? Damn, what are you running... lol. I thought I went nuts on mine and I still have 3 or 4 left.Kenny

Owner / Technician

KKD Garage LLC

Albany, NY 12205

No I have the cm3000 and I have 2 aux output and I need a seperate modual that will add another 7 aux outputs, but I would rather not purchase this at this point just for the purpose of disabling the solenoids. Also what is POC?

I actually just found this thread. https://www.the12volt.com/installbay/forum_postsm.asp?tid=132895&tpn=1&PN=1 It seams to be what I want but it's awfully complicated. I like howies idea on using the latching solenoid, it seams a whole lot simpler

Programmable output. It's only on the newer Compustar modules. Basically there are 9 wires that you can choose what they function as.Kenny

Owner / Technician

KKD Garage LLC

Albany, NY 12205

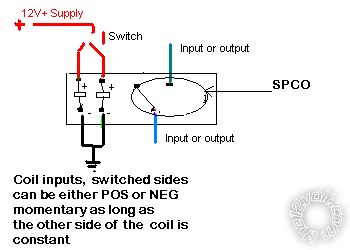

Make those buttons only work when the alarm is disarmed. 448_latch.bmp Interrupt either the 12V+ or ground wires, you will need one each, 10amp rating for each door.

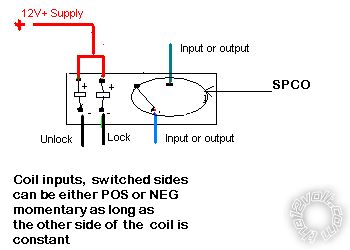

I've modified that drawing assuming you have NEG (-) output lock wires:- 8FB_latch.bmp I see a train crash here.

I don't really understand what wires are what on the diagram, the black lock, unlock wires are the disarm and rearm wires that give the neg pulses ?
