2003 silverado horn issue


Post ReplyPost New Topic
< Prev Topic Next Topic >
jaimejr18
Member - Posts: 26
Member spacespace
Joined: February 24, 2013
Location: Texas, United States
Posted: March 06, 2013 at 9:45 PM / IP Logged
alrght so my steering wheel honks the horn everytime i turn the steering wheel or when i slightly tilt it does anyone know wich wire is the one for the steering wheel so i can splice it and put a push button for it so i can use the horn right noe i have the fuse taken off of the fuse block
i am an idiot
Platinum - Posts: 13,666
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: March 06, 2013 at 9:54 PM / IP Logged
     Horn BLACK OR BLACK / YELLOW (-) AT STEERING COLUMN HARNESS
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: March 06, 2013 at 11:58 PM / IP Logged
Or even check the steering column loom to see if you have any loose wire shorting probably when you wired up your 350.
oldspark
Gold - Posts: 4,913
Gold spacespace
Joined: November 03, 2008
Location: Australia
Posted: March 07, 2013 at 1:02 AM / IP Logged
Ditto. Quite possibly if not a loose or floating terminal, then worn-thru insulation.
Trust me, dash mounted buttons are not good.   (Yeah, I'll fix mine one day...)
jaimejr18
Member - Posts: 26
Member spacespace
Joined: February 24, 2013
Location: Texas, United States
Posted: March 07, 2013 at 4:29 AM / IP Logged
it had done it even before i had put in the alarm but not as mucj im guessing when i was putting it in it losened it up more how do i take off the steerin cover for the column
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: March 07, 2013 at 5:19 AM / IP Logged
Don't even attempt, I saw the problems you had with a basic alarm, take it to a dealer or auto electrics pro.
Airbag in steering wheel? And then think $$$ if you try this yourself.
offroadzj
Gold - Posts: 2,043
Gold spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: June 03, 2005
Location: New York, United States
Posted: March 07, 2013 at 5:57 AM / IP Logged
The cover will either be all clips between the 2 halves or you may have a couple screws going up from the bottom. DO NOT ATTEMPT TO REMOVE THE STEERING WHEEL!!!!! If not done properly you can deploy the airbag and it can injure you (or at the very least, injure your wallet). Check through the loom all around there and make sure the wire isn't pinched anywhere or the insulation worn. Since it has to do with a specific movement, it is almost guaranteed to be a bad wire somewhere near there. Hopefully it's not in the steering wheel itself... but I doubt that.
Kenny
Owner / Technician
KKD Garage LLC
Albany, NY 12205
Mike M2
Platinum - Posts: 2,652
Platinum spacespace
Joined: June 29, 2005
Location: United States
Posted: March 07, 2013 at 5:29 PM / IP Logged

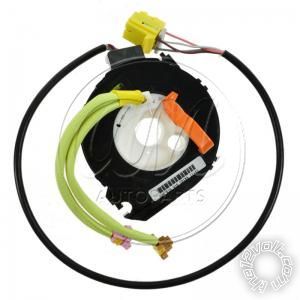

You have a bad clock spring, plain and simple. It's a common fialure in GM trucks and you need to remove the steering wheel to change it. Here's what it looks like...

2003 silverado horn issue -- posted image.

Mike M2
Tech Manager
CS Dealer Services
