2010 Jeep Liberty Remote Start Pictorial


Post ReplyPost New Topic
< Prev Topic Next Topic >
smokeman1
Platinum - Posts: 1,588
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: September 14, 2009
Location: Wisconsin, United States
Posted: October 19, 2013 at 9:49 PM / IP Logged
Installed a Python 580 Remote Starter with DB-ALL in D2D mode in a 2010 Jeep Liberty, factory keyless entry, NO factory alarm. I did this one in the D2D instead of Wire 2 Wire. Wanted to try a D2D to see what happens. I'll post later if there are any D2D issues. The DB-ALL was flashed with 401.CHRYSLER v5.06. DB-ALL programed first time per the instructions.
Was a pretty easy install. This was very close to a 2007 Dodge Nitro I did back in August. Four connections at ignition switch, two to 12 Volt Constant, Parking Light wire, Ground wire, and Horn.
Brake, Ignition, GWR status, and Door Locks were through the DB-ALL.
This one would NOT do the TACH through the DB-ALL in D2D. Don't know if W2W would have been any different, so I ran the tach wire out to the fuel injector. Lots of room under the dash, just like the Dodge Nitro, and a easy access grommet to the engine compartment, left side of drivers side firewall. Lower steering cover is removed by taking out three torx screws. T-15 I believe.
This install took me 5 hours total, including prep time.

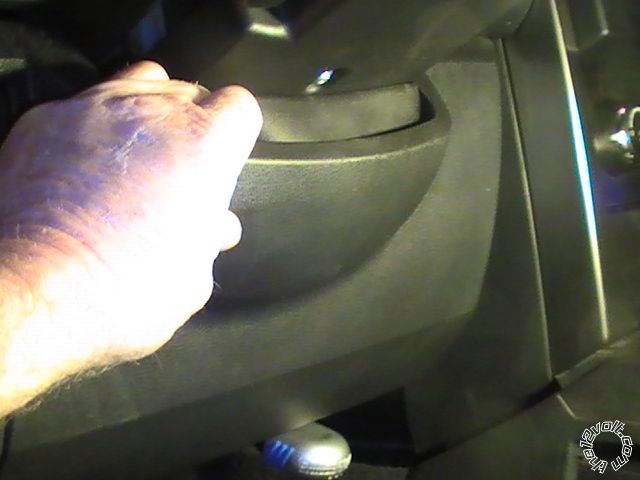

Remove lower dash panel by pulling down from top and sliding left.
2010 Jeep Liberty Remote Start Pictorial -- posted image.
Lots of room under dash.
2010 Jeep Liberty Remote Start Pictorial -- posted image.
Brake Switch Harness
2010 Jeep Liberty Remote Start Pictorial -- posted image.

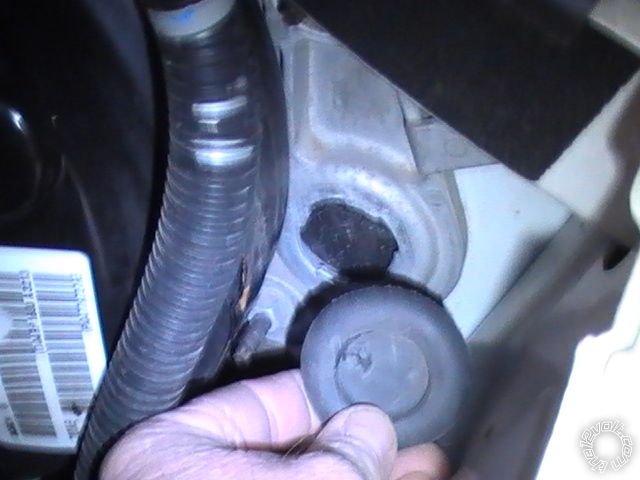

Nice Easy Grommet to Engine Bay
2010 Jeep Liberty Remote Start Pictorial -- posted image.

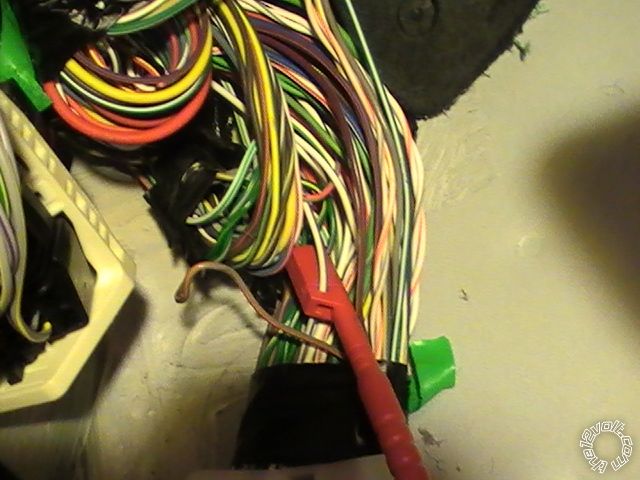

Parking Light (+) in Drivers Kick Panel
2010 Jeep Liberty Remote Start Pictorial -- posted image.

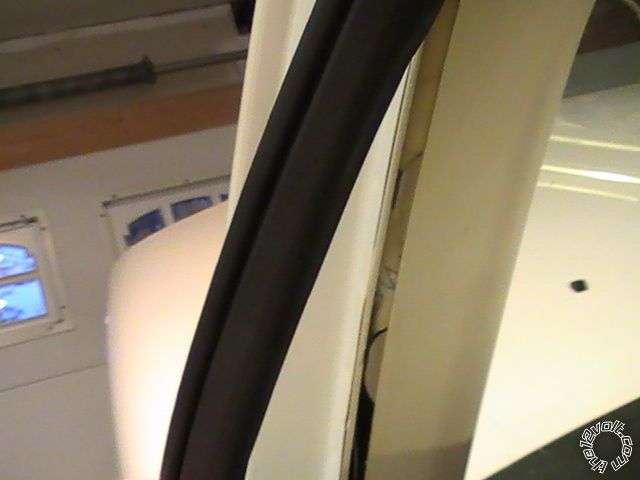

Ran Antenna wire behind weather strip. Lots of room. Notice "A" pillar air bag.
2010 Jeep Liberty Remote Start Pictorial -- posted image.
Connector on right contains MUX, Ignition, CAN High, & CAN Lo
2010 Jeep Liberty Remote Start Pictorial -- posted image.

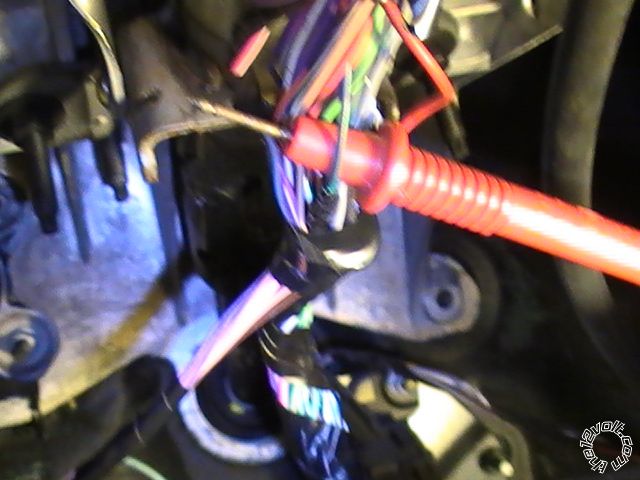

Horn wire in steering column wire harness
2010 Jeep Liberty Remote Start Pictorial -- posted image.

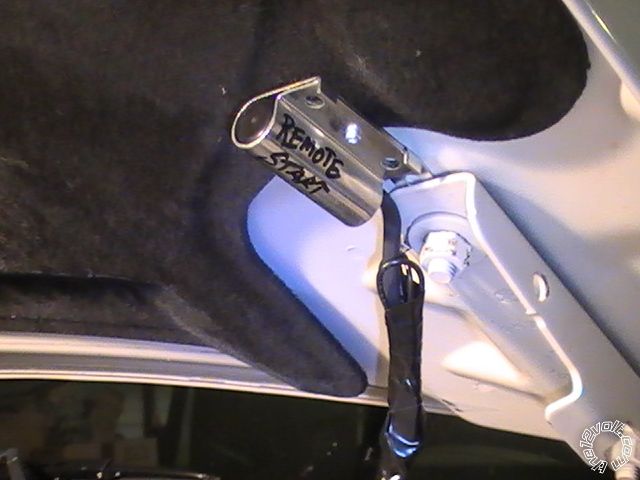

Hood Safety Switch.
2010 Jeep Liberty Remote Start Pictorial -- posted image.

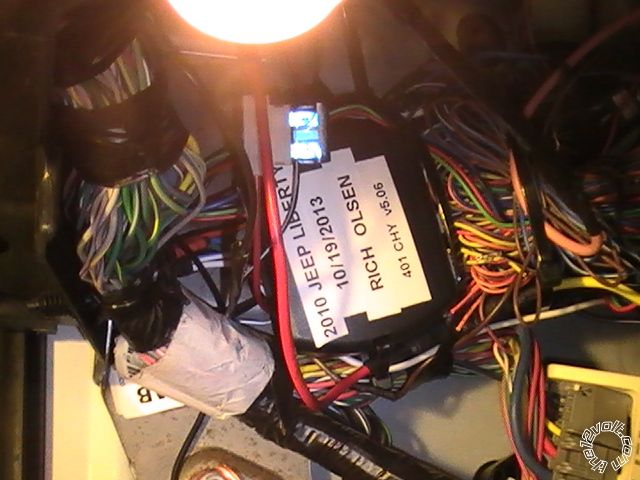

All bundled up and tucked away.
2010 Jeep Liberty Remote Start Pictorial -- posted image.
When all else fails, Read the Instructions
Support the12volt.com Make a Donation
kreg357
Platinum - Posts: 7,529
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Electrical Theory. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: January 30, 2009
Location: New York, United States
Posted: October 23, 2013 at 4:48 AM / IP Logged

Very nice write-up!  Doing newer Chrysler vehicles is almost enjoyable.  All three bypass manufacturers ( Fortin, Directed and iDatalink ADS ) have excellent solutions for these vehicles.

Really like the rust-proof Hood Pin and the info label on the bypass.   2010 Jeep Liberty Remote Start Pictorial -- posted image.

Soldering is fun!
kreg357
Platinum - Posts: 7,529
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Electrical Theory. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: January 30, 2009
Location: New York, United States
Posted: November 01, 2013 at 9:27 PM / IP Logged
Hey, Mr Smoke!  Kudos on a job well done from Howie II.  2010 Jeep Liberty Remote Start Pictorial -- posted image.   He used this Pictorial and the DB-ALL to do
a Euro Spec Jeep Liberty with a diesel engine.   He even got the Tach signal thru D2D.  Couldn't get the
NSS signal, though, and Priority Unlock didn't work either.
Soldering is fun!
smokeman1
Platinum - Posts: 1,588
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: September 14, 2009
Location: Wisconsin, United States
Posted: November 02, 2013 at 2:43 PM / IP Logged
Ahh Shucks... 2010 Jeep Liberty Remote Start Pictorial -- posted image. Always nice to get a pat on the back from the Pros. Tell Howie thanks for the kind words and yours as well. Sure do miss Howard on this forum. I always got a laugh from his posts
When all else fails, Read the Instructions
Support the12volt.com Make a Donation
smokeman1
Platinum - Posts: 1,588
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: September 14, 2009
Location: Wisconsin, United States
Posted: November 14, 2014 at 7:21 AM / IP Logged
Just an update on this one.
This was an install using the DB-ALL in a D2D mode. First D2D install for me and wanted to see D2d vs W2W.
It has been over a year and customer has had no issues at with it. She has lived in northern Wisconsin, North Dakota, and Montana. Some cold climates for sure and no problems.
