2007 Jeep Commander Remote Start Pictorial


Post ReplyPost New Topic
< Prev Topic Next Topic >
smokeman1
Platinum - Posts: 1,588
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: September 14, 2009
Location: Wisconsin, United States
Posted: December 14, 2013 at 4:27 PM / IP Logged

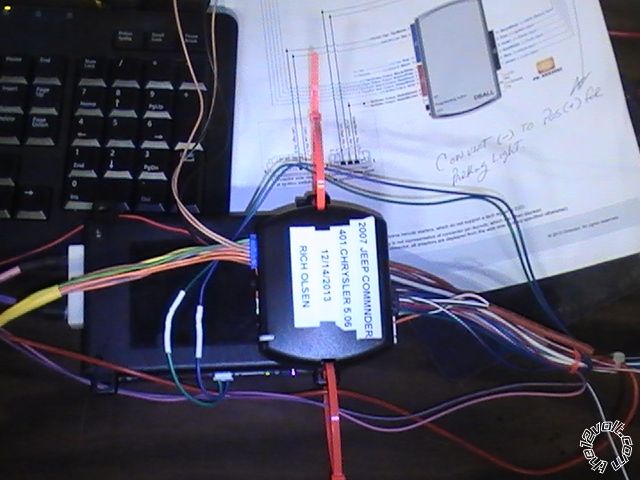

Installed a Clifford 20.7x Remote Start,(same as a Viper 5501), with a DB-ALL in W2W mode. Bench prep, DB-ALL flashed with 401 Chrysler v5.06, Type 4 Install Guide.
The DB-ALL programed on the first try and also handled the TACH signal W2W. The Lock/Unlock, and Rear Window pop were also handled by the DB-ALL.
The install guide shows the Starter and Ignition outputs connections. Also needed, BUT NOT on the install guide, are the 12 volt inputs for the starter and ignition. The (H3/5, and H3/8)wires need to be connected to a 12 volt source.
2007 Jeep Commander Remote Start Pictorial -- posted image.

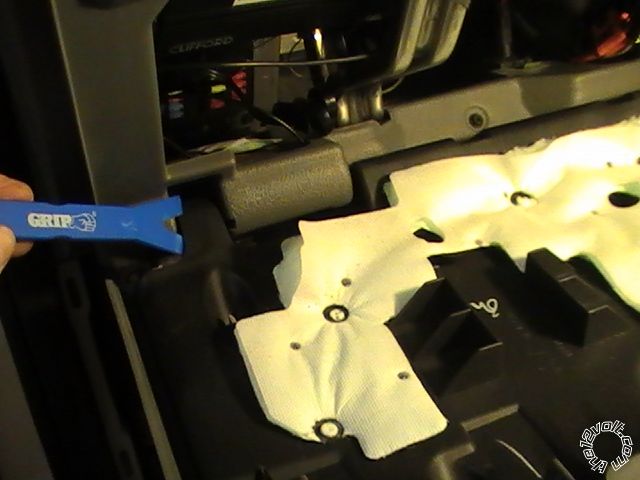

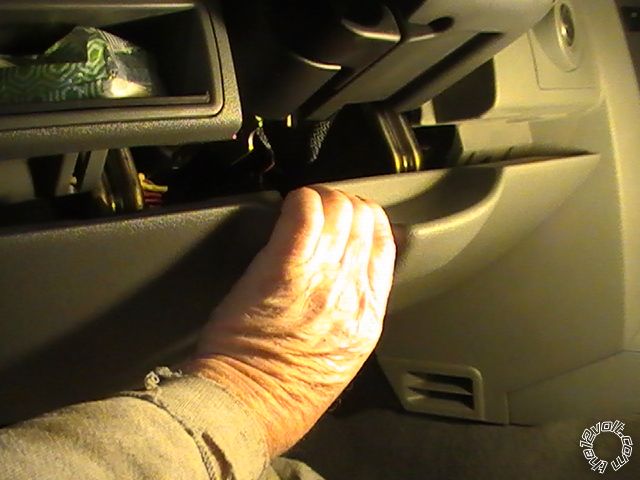

Lower panel is removed by pulling down and then popping the panel off the hinges on each side. A sharp hit with the palm of the hand will do it.
2007 Jeep Commander Remote Start Pictorial -- posted image.
2007 Jeep Commander Remote Start Pictorial -- posted image.

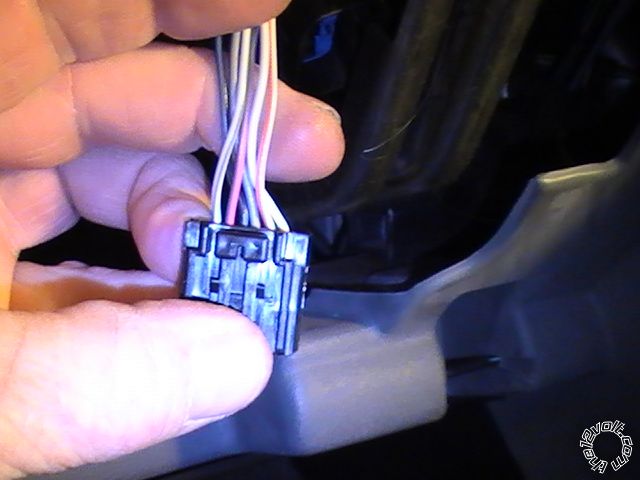

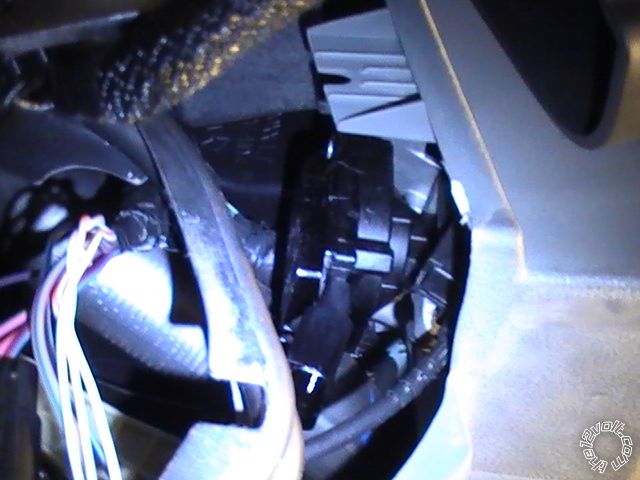

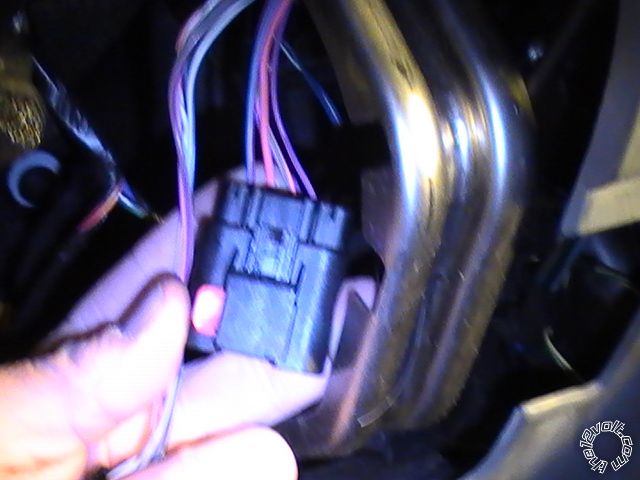

The two ignition connectors are up under the dash and were in a tight location. The wires do not come down the steering column to work on. They go up from the ignition switch so it leaves very little room to work on. The larger connector has a RED locking tab that needs to be slid to one side in order to remove while the smaller one has a tab that needs to be depressed for removal. If you have big hands, Good Luck. In a tight location
2007 Jeep Commander Remote Start Pictorial -- posted image.
2007 Jeep Commander Remote Start Pictorial -- posted image.

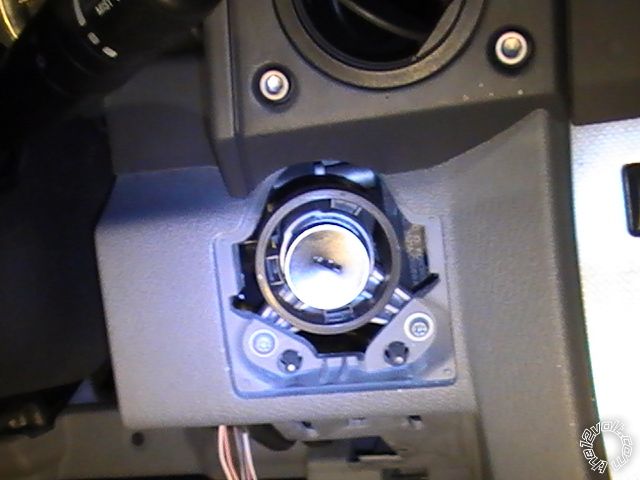

View of the ignition switch from underneath and removing the key cylinder cover provides little help.
2007 Jeep Commander Remote Start Pictorial -- posted image.
2007 Jeep Commander Remote Start Pictorial -- posted image.

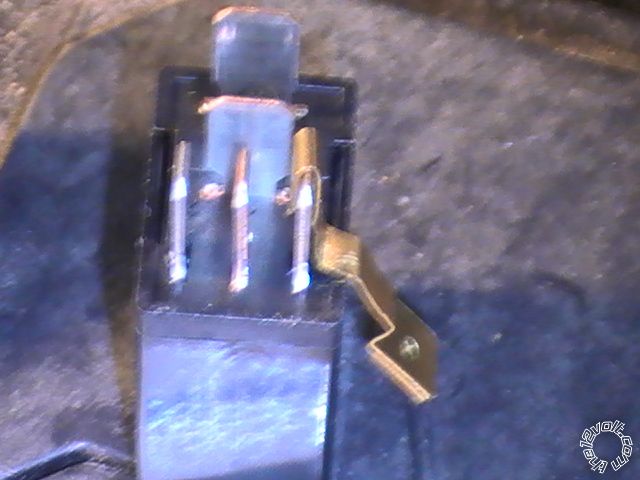

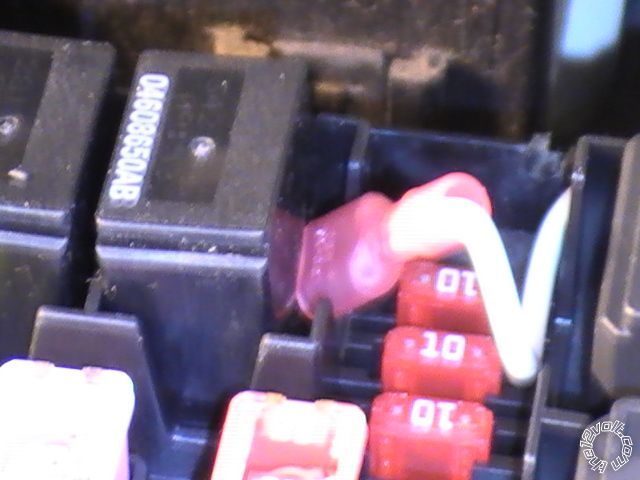

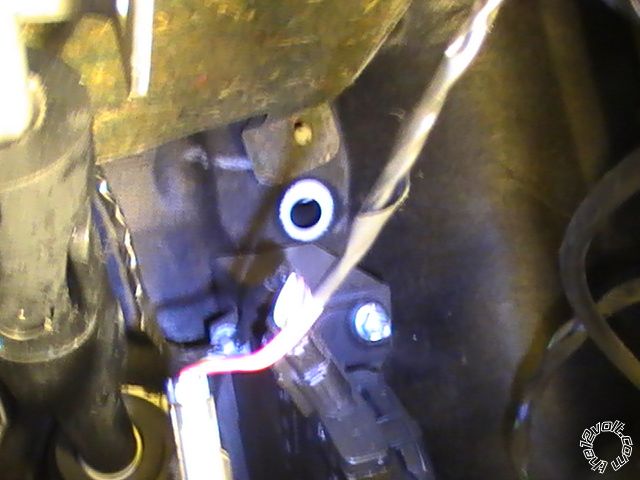

Very nice grommet above the gas pedal for running wires out to the engine compartment. Wires out were Hood Pin, Parking Lights, 12 Volts at the battery, and Horn. Horn and Parking Lights were both NEG(-) at the IPM right behind the battery. Both relays were connected the same way on Pin 1 using a blade adapter.
2007 Jeep Commander Remote Start Pictorial -- posted image.
2007 Jeep Commander Remote Start Pictorial -- posted image.
2007 Jeep Commander Remote Start Pictorial -- posted image.

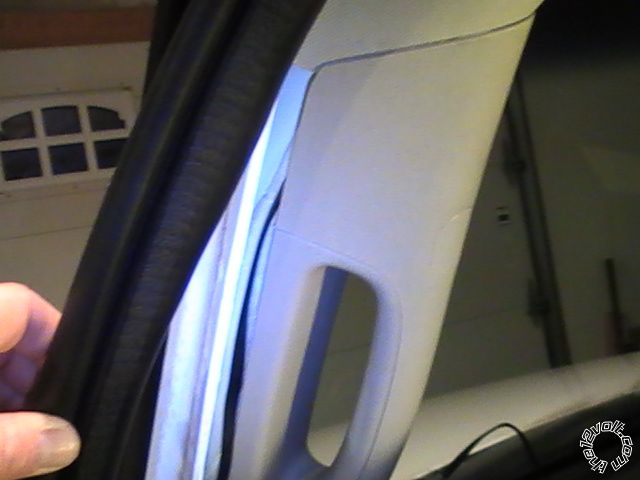

Antenna routing behind the A pillar. A tight fit at the top, so you will need to remove the bolt covers to loosen the bolts. The clips for those are on the left and right side of those small cap. Forgot to take a photo of that.
2007 Jeep Commander Remote Start Pictorial -- posted image.

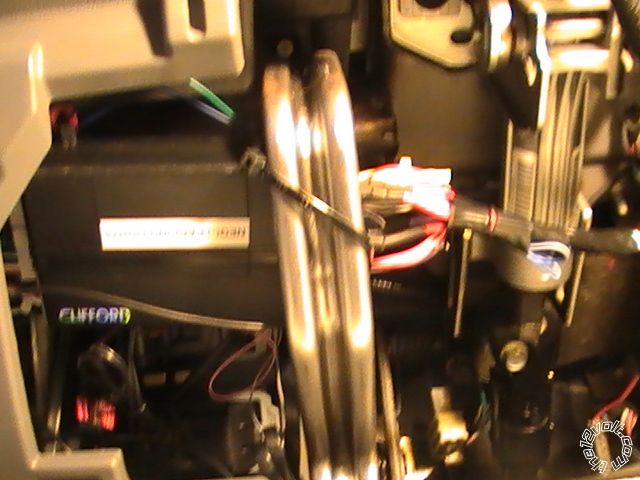

All put away. Took about 6 hours for this install, including the prep time.
2007 Jeep Commander Remote Start Pictorial -- posted image.
When all else fails, Read the Instructions
