2014 Ford Fiesta Remote Start Wiring


Post ReplyPost New Topic
< Prev Topic Next Topic >
tripp21605
Member - Posts: 2
Member spacespace
Joined: May 19, 2015
Location: Virginia, United States
Posted: May 19, 2015 at 11:13 AM / IP Logged Link to Post Post Reply Quote tripp21605
I am working on a 2012 Ford Fiesta. All of the diagrams I have found refer to tech doc 1099. Can anyone help me find out what this document says?
tedmond
Gold - Posts: 4,610
Gold spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: January 06, 2007
Location: Ontario, Canada
Posted: May 19, 2015 at 11:19 PM / IP Logged Link to Post Post Reply Quote tedmond
its just a door lock diagram. it should be in downloads now as i just uploaded it. use the fortin evo-all it'll save you lots of time and reduce wiring time
Ted
2nd Year Tier 1 Medical School
Still installing as a hobby...pays for groceries
Compustar Expert
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: May 20, 2015 at 5:42 AM / IP Logged Link to Post Post Reply Quote howie ll
Try this;- 2012 Should have a grey plug on the BCM, C7 Lock and deadlock, pin 6 yellow/grey, (-), pin 19 PURPLE / brown unlock and turn off factory alarm.
That's the case on UK models up to 2014 have a look and let me know if the US version is the same.
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: May 20, 2015 at 5:47 AM / IP Logged Link to Post Post Reply Quote howie ll

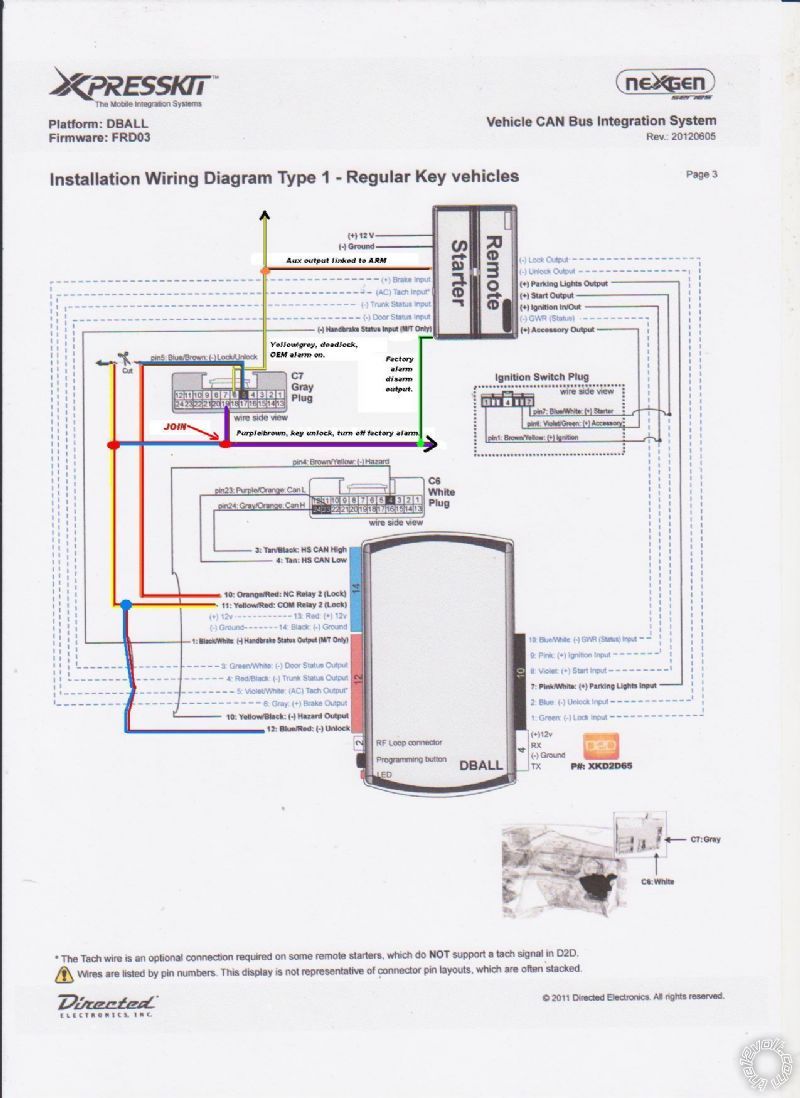

Also this- 8Z7_fiesta.jpg
This is the Euro version using DB-ALL2 with my mods giving you regular lock and unlock with ignition and deadlock + factory alarm with alarm on, unlock and factory alarm disarm with alarm off.
You don't really even need the DB-ALL or similar it can be hard wired but take care, door hood and trunk/hatch triggers are normally closed, the DB and similar gets around that problem
tripp21605
Member - Posts: 2
Member spacespace
Joined: May 19, 2015
Location: Virginia, United States
Posted: May 20, 2015 at 8:50 AM / IP Logged Link to Post Post Reply Quote tripp21605
Thanks for the help!!
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: May 20, 2015 at 9:15 AM / IP Logged Link to Post Post Reply Quote howie ll
All the Euro versions had the locking system I told you about up to 2014.
The US version should be the same, they're all made in Spain.
Let me know if the wires of the colours I mentioned are in the plug.
