2014 Kia Forte Remote Start Install Pictorial


Post ReplyPost New Topic
< Prev Topic Next Topic >
chev104275
Gold - Posts: 1,401
Gold spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: November 26, 2007
Location: Massachusetts, United States
Posted: January 23, 2014 at 9:38 AM / IP Logged
This is a 2014 Kia Forte Regular Key
This car has no transponder. It has a intergrated remote with the key. The remote doesnt work when car is running.
The car has factory Anti-grind
I used a DEI 4103 and 1 Bosch relay for the trunk release
Disassembly
2014 Kia Forte Remote Start Install Pictorial -- posted image.

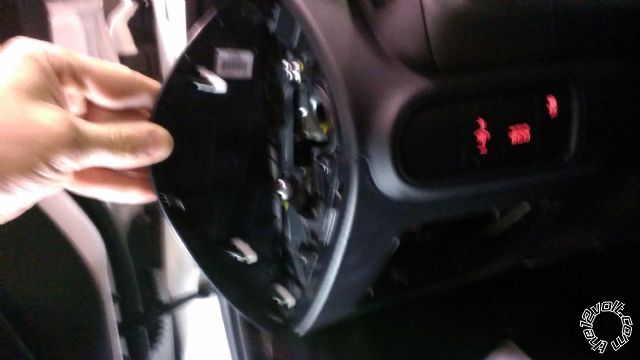

   Left side dash cover is held in with Plastic clips Use a non marring tool to remove
2014 Kia Forte Remote Start Install Pictorial -- posted image.

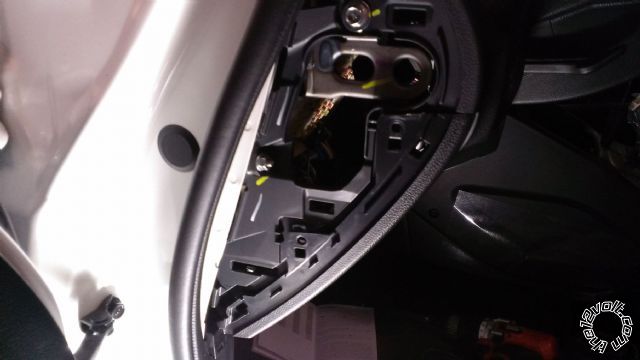

   There is 2 Phillps screws under the cover that hold in the left side of the dash
2014 Kia Forte Remote Start Install Pictorial -- posted image.

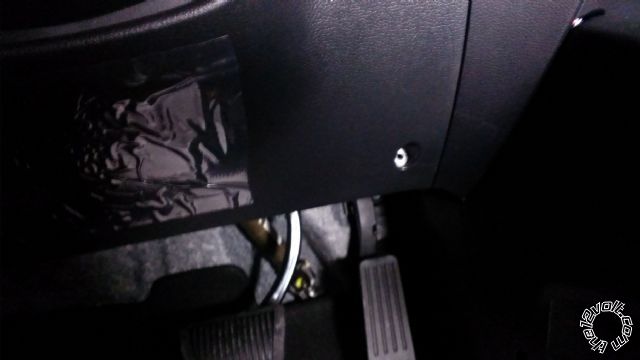

    There is 1 phillps screw in the right side of the dash
2014 Kia Forte Remote Start Install Pictorial -- posted image.

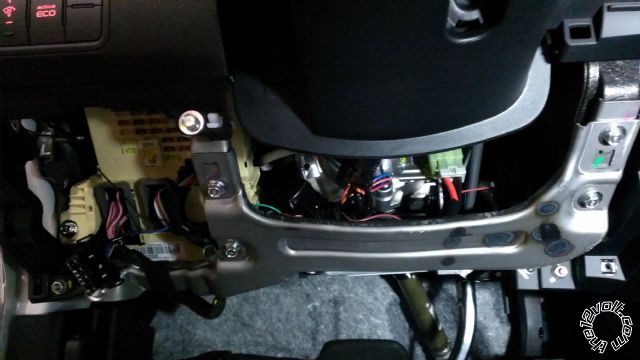

     The Metal is held in by 5 10mm Bolts
2014 Kia Forte Remote Start Install Pictorial -- posted image.

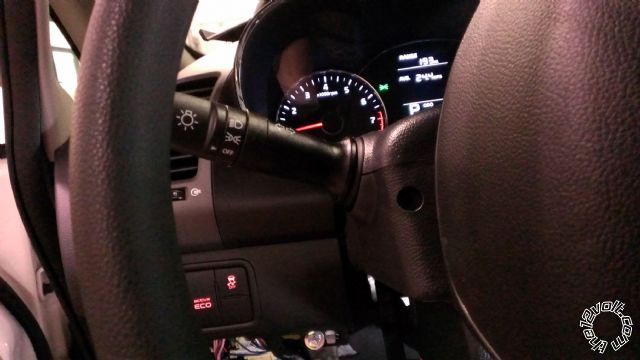

     Turn the steering wheel to the left to expose 1 phillps screw
2014 Kia Forte Remote Start Install Pictorial -- posted image.

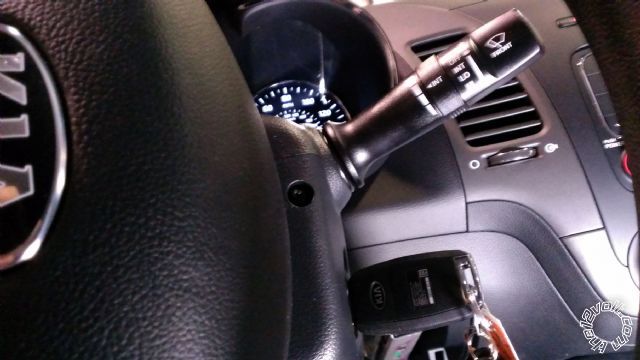

     Turn the steering wheel to the right to expose 1 phillps screw
2014 Kia Forte Remote Start Install Pictorial -- posted image.

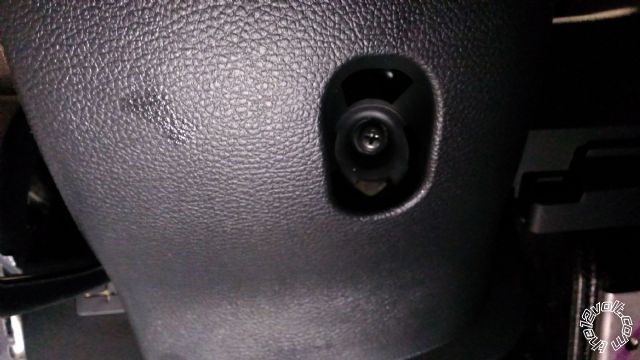

    The bottom of the column shroud has 1 phillps screw
2014 Kia Forte Remote Start Install Pictorial -- posted image.

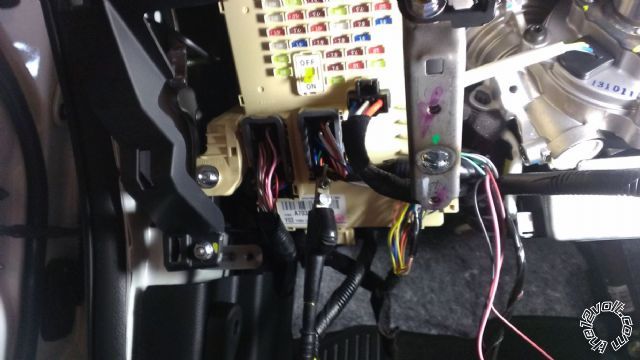

    Overall fusebox view bottom right connector is where the locks,FAD,drivers door pin, The black clip hanging is where the hood pin wire is located
2014 Kia Forte Remote Start Install Pictorial -- posted image.

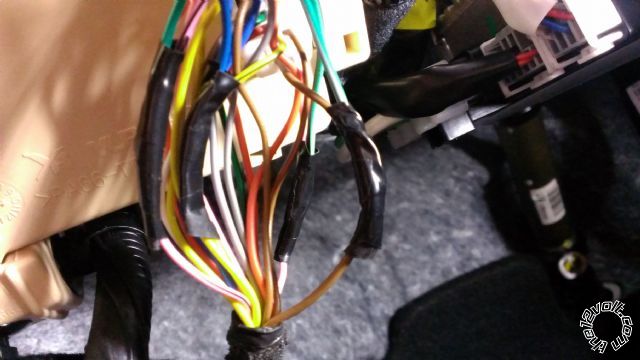

     Drivers Door Pin (Brown) Pin 1 This was used with the rearm wire to shut down the auto lights
2014 Kia Forte Remote Start Install Pictorial -- posted image.

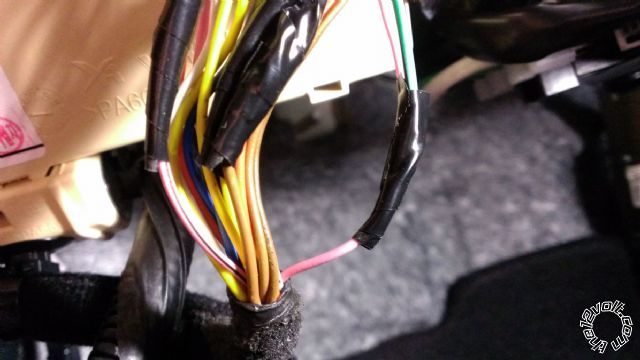

    Factory alarm disarm (pink) pin 17
2014 Kia Forte Remote Start Install Pictorial -- posted image.

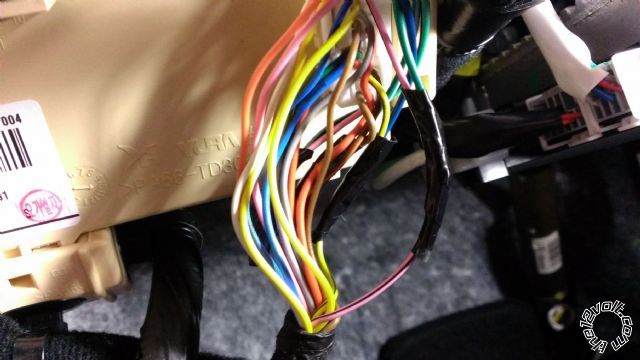

    Lock Type B(Pink/Black) Pin 12
2014 Kia Forte Remote Start Install Pictorial -- posted image.

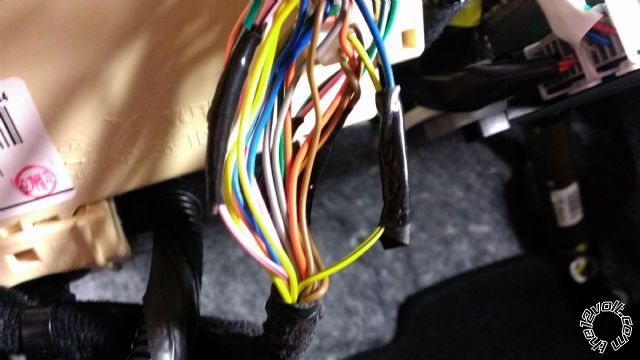

    Unlock Type B (yellow/Black) Pin 3
2014 Kia Forte Remote Start Install Pictorial -- posted image.

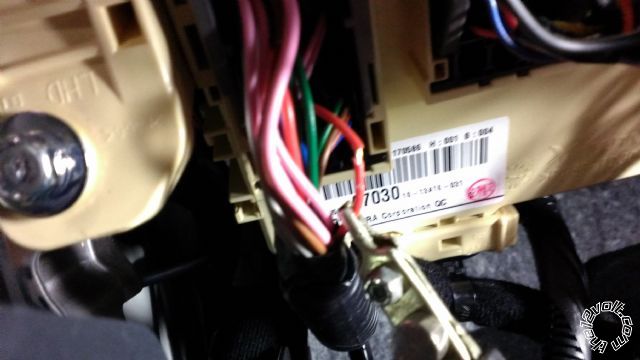

    Trunk release Fusebox Left side connector Pin 35 (this is the motor wire you will need a relay to invert the polarity if your unit doesnt have the capability)
2014 Kia Forte Remote Start Install Pictorial -- posted image.

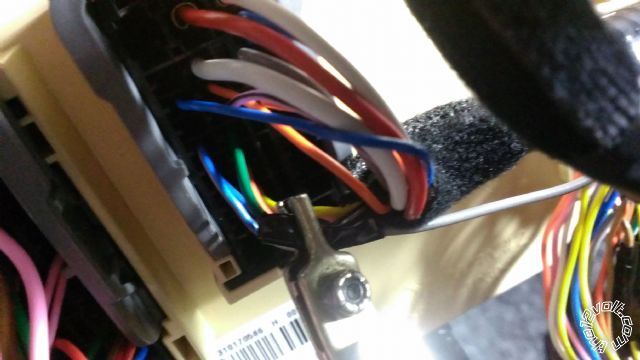

    Factory hood Pin Fusebox black 30 pin plug (D) (Green) Pin 15
2014 Kia Forte Remote Start Install Pictorial -- posted image.

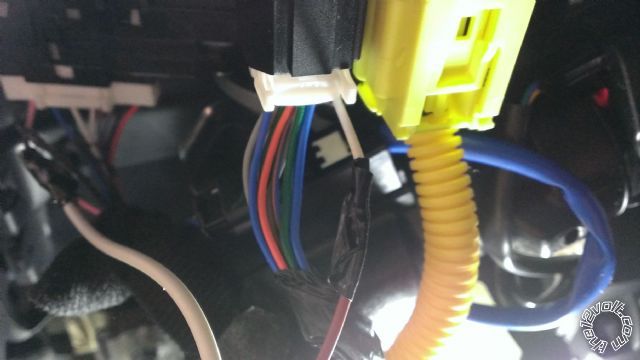

    Horn (white) at Clock spring connector
2014 Kia Forte Remote Start Install Pictorial -- posted image.

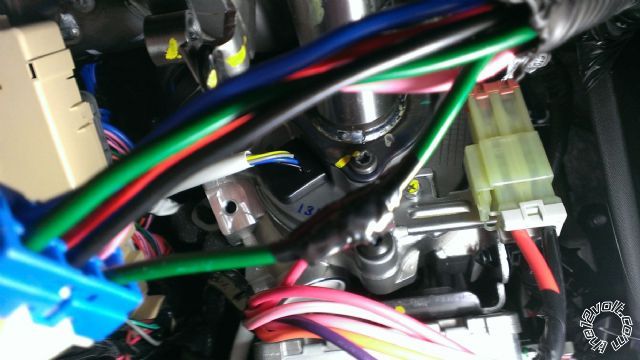

    12 volts (green) Pin 1 Ingition Harness
2014 Kia Forte Remote Start Install Pictorial -- posted image.

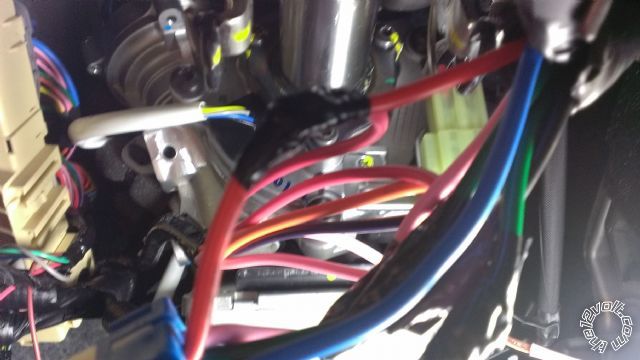

    12 Volts (red) Pin 5 Ingition Harness
2014 Kia Forte Remote Start Install Pictorial -- posted image.

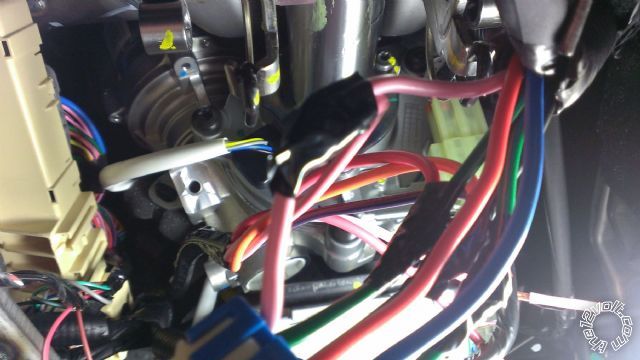

    Ingition (pink) Pin 4 Ingition Harness
2014 Kia Forte Remote Start Install Pictorial -- posted image.

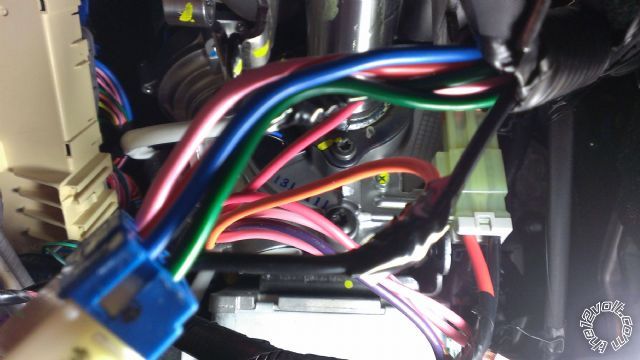

    Acc 1 (black) Pin 2 Ingition Harness
2014 Kia Forte Remote Start Install Pictorial -- posted image.

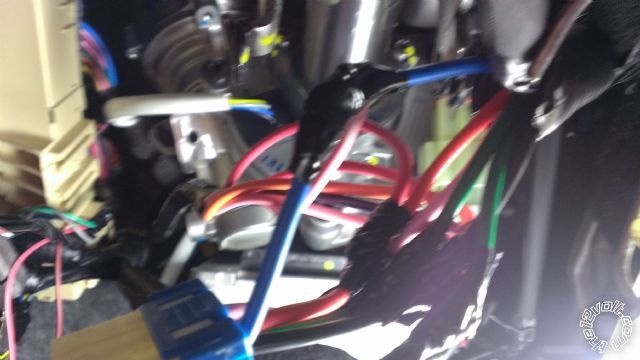

    Acc 2 (Blue) Pin 6 Ingition Harness
2014 Kia Forte Remote Start Install Pictorial -- posted image.

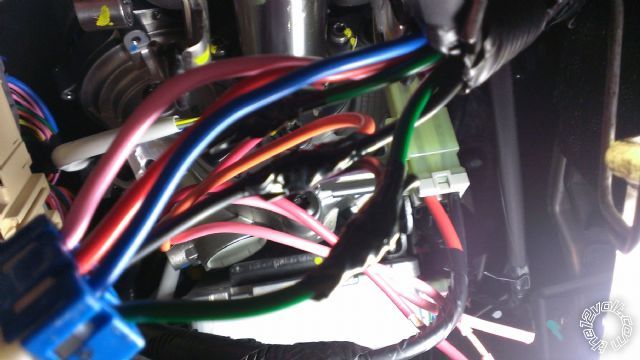

    Starter ( Green) Pin 3 Ingition Harness
2014 Kia Forte Remote Start Install Pictorial -- posted image.

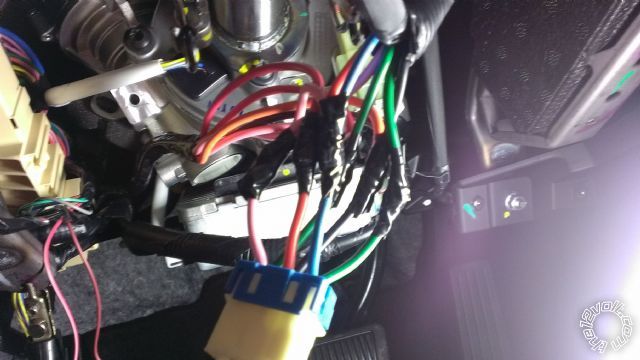

    Overall Ingition View
2014 Kia Forte Remote Start Install Pictorial -- posted image.
    Brake theres a plastic shroud covering the end of the wires its comes right off with a few clips
2014 Kia Forte Remote Start Install Pictorial -- posted image.

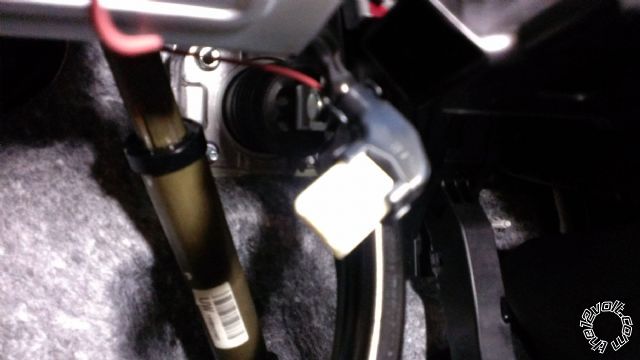

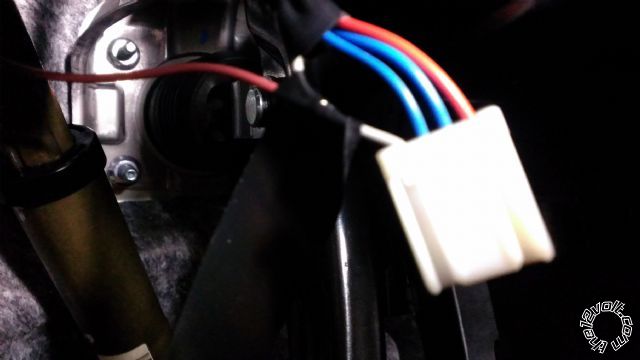

    Brake wire without the Shroud on it (gray)
2014 Kia Forte Remote Start Install Pictorial -- posted image.

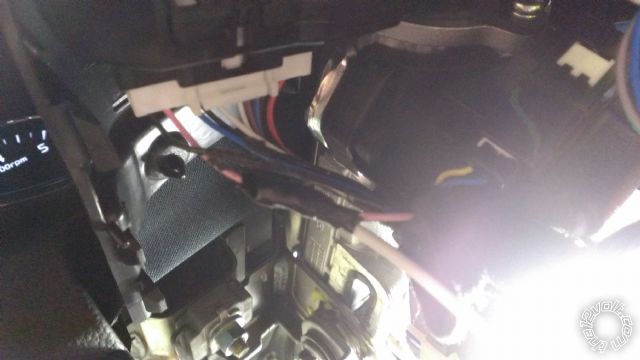

     Negitive Parking lights (pink) Pin 2 at light switch
Whats not shown is the ground Plenty of room in the kick panel for that and the Tach Any uncommon side of a coil or injector will work
If i Can't Install it    I Don't need it   Joe
lucasoil4u
Copper - Posts: 317
Copper spacespace
Joined: May 11, 2009
Location: Minnesota, United States
Posted: February 21, 2014 at 11:48 AM / IP Logged
I installed on one of these cars. If you lock the door via lock button on the door does the car unlock sith the aftermarket remote? Mine does not and im confused.
chev104275
Gold - Posts: 1,401
Gold spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: November 26, 2007
Location: Massachusetts, United States
Posted: February 21, 2014 at 12:02 PM / IP Logged
Did you hook up factory alarm disarm pin 17 pink same connector as locks
I've had a few even without factory alarms do that hook up the disarm wire and it should fix it
If i Can't Install it    I Don't need it   Joe
mjones1052
Member - Posts: 1
Member spacespace
Joined: July 12, 2014
Location: Pennsylvania, United States
Posted: July 12, 2014 at 5:36 PM / IP Logged
Can you please tell me the tach wire or post a picture? I followed your guide and I seem to be hooked up. However, all the coils have a common blue wire and then each has a 2nd uncommon color. So, I went to cyl 3 and hooked to the uncommon and got nothing. I also hooked in to the brown alternator wire from the driver kick which I got from another site. Neither got me anything.
I'm getting 7 flashes on my Prestige APS901c which tells me tach not learned when I try to start it. When I follow the tach programming I get nothing with those 2 wire configurations.
Any help would be amazing. Just need to know a good tach connection in the cookpit somewhere as the uncommon didn't seem to work on the coils.
long166
Member - Posts: 1
Member spacespace
Joined: March 18, 2011
Location: Minnesota, United States
Posted: November 01, 2014 at 5:48 PM / IP Logged
Kia/Hyundai cars with factory alarm (07-14ish) you need to hit up the disarm and lock detection with the disarm diode isolated. That should make the keyless on the rs work.
raulromo34
Member - Posts: 25
Member spacespace
Joined: January 11, 2006
Location: United States
Posted: June 23, 2015 at 6:32 PM / IP Logged
have you installed alarm on 2014-2015 kia soul?
was wondering if the color codes are the same.
found a different site that showed lock as red (+), and unlock as yellow/black (-)tyoe b these wires at dash fuse box white 16 pin plug (b) pin 8 (red) and pin 3 is Yellow/black... then it shows lock motor wire as gray (5-wire type) I am confussed. usually most Asian vehicles are negative for door locks. maybe its just where they are getting the signal???? any help would help.. thanks Raul
football fanatic
chev104275
Gold - Posts: 1,401
Gold spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: November 26, 2007
Location: Massachusetts, United States
Posted: June 24, 2015 at 6:52 AM / IP Logged
I have done quite a few souls.
Lock should be red (-) 16 pin plug pin 8
Unlock should be yellow/black (-) pin 3 same 16 pin plug
I've have never used the unlock detection wire. I use the factory alarm disarm wire pin 4 (-) pink same connector as locks. Even if your car doesn't have a factory alarm the wire will still be there. Tie the factory alarm disarm wire from you system to they pink and it should unlock everytime
If i Can't Install it    I Don't need it   Joe
raulromo34
Member - Posts: 25
Member spacespace
Joined: January 11, 2006
Location: United States
Posted: June 24, 2015 at 9:40 AM / IP Logged
Thanks you.   I will be doing install this week on one. It makes sense that the lock wire would be
(-).
I was on the12volt .com website and someone
Posted that it's (+).
Thanks again in advance.
football fanatic
jeanmaurits
Member - Posts: 1
Member spacespace
Joined: April 02, 2017
Location: Aruba
Posted: April 02, 2017 at 7:11 PM / IP Logged
hello, i have to install a car alarm on a KIA Forte, can someone help me with information of wich wire is the wire for the fuel pomp.
let me know please.
jeanmaurits
k9cuevas
Member - Posts: 6
Member spacespace
Joined: July 26, 2017
Location: Ohio, United States
Posted: July 28, 2017 at 11:10 AM / IP Logged
This information was excellent. Three questions for you.
1- I have a 2011 Forte and I have to put a relay in on the accessory wire/heater blower due to starter grind on key take over. Do you have information on how to wire in the relay? Which wires go to which?
2- I installed a Directed Electronics (Viper) 4105V and none of the wires on the remote start list anything for dome light. Is there another wire I am supposed to hook up for illuminated entry?
I did not hook up the factory disarm. The previous remote start that was in here did not have it hooked up either. The car remotes starts, locks, unlocks, and operates as it should. Do I still need to connect that wire? If so where do I get a diode and how does that work?
Thanks again for all the info.
Orlando C.
