2014 Chevrolet Spark Alarm and Stereo Wiring


Post ReplyPost New Topic
< Prev Topic Next Topic >
decibel jj
Member - Posts: 2
Member spacespace
Joined: April 02, 2014
Location: Nevada, United States
Posted: April 02, 2014 at 1:55 PM / IP Logged Link to Post Post Reply Quote decibel jj
Does anyone have the wiring info for alarm and stereo?
Thank you!
Don't you just hate it when Satan steals your ride and does all these weird ass mods to it?
wirewise
Moderator - Posts: 485
Moderator spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member consistently provides reliable informationspace
Joined: March 07, 2002
Location: California, United States
Posted: April 04, 2014 at 9:31 AM / IP Logged Link to Post Post Reply Quote wirewise
The standard stereo wire colors are the same as listed below.
2014 CHEVROLET SPARK 4DR HATCHBACK WITH 1.2L ENGINE AND NAVIGATION-EQUIPPED AUDIO SYSTEM
Audio/Mobile Video
     WIRE COLOR POLARITY LOCATION
     Battery RED / BROWN (+) RADIO HARNESS
     Ground BLACK (-) RADIO HARNESS
     Illumination GREEN/ BROWN (+) RADIO HARNESS
     Dimmer YELLOW/GRAY (-) RADIO HARNESS
     LF Speaker (+) DARK BLUE
     LF Speaker (-) BROWN / DARK BLUE
     RF Speaker (+) YELLOW
     RF Speaker (-) YELLOW/BLACK
     LR Speaker (+) DARK GREEN
     LR Speaker (-) DARK GREEN/ BLACK
     RR Speaker (+) WHITE
     RR Speaker (-) DARK BLUE/BLACK
     Steering Cntrls YES
     Speed Cntrl YES
     Radio Security YES

Security
     WIRE COLOR POLARITY LOCATION
     Battery RED / VIOLET OR RED / GRAY (+) IGNITION SWITCH HARNESS
     Ignition 1 VIOLET/BLACK (+) IGNITION SWITCH HARNESS
     Starter 1 YELLOW/VIOLET (+) IGNITION SWITCH HARNESS
     All Door Trigger YELLOW (-) THIS WIRE COVERS ALL THREE PASSENGER DOORS AND WILL NOT INDIVIDUALLY MONITOR THEM.
     Domelight Super YELLOW (-) IN HARNESS AT DRIVERS SIDE FUSEBOX BEHIND THE DASHBOARD
     LF Latch GRAY (-) IN HARNESS AT DRIVERS SIDE FUSEBOX BEHIND THE DASHBOARD
     RF Latch GRAY (-) IN HARNESS AT DRIVERS SIDE FUSEBOX BEHIND THE DASHBOARD
  THIS WIRE COVERS ALL THREE PASSENGER DOORS AND WILL NOT INDIVIDUALLY MONITOR THEM.
     LR Latch GRAY (-) IN HARNESS AT DRIVERS SIDE FUSEBOX BEHIND THE DASHBOARD
  THIS WIRE COVERS ALL THREE PASSENGER DOORS AND WILL NOT INDIVIDUALLY MONITOR THEM.
     RR Latch GRAY (-) IN HARNESS AT DRIVERS SIDE FUSEBOX BEHIND THE DASHBOARD
  THIS WIRE COVERS ALL THREE PASSENGER DOORS AND WILL NOT INDIVIDUALLY MONITOR THEM.
     Trunk Trigger DARK BLUE / YELLOW (-) IN HARNESS AT DRIVERS SIDE FUSEBOX BEHIND THE DASHBOARD
     Parking Lights BROWN / VIOLET (-) IN HARNESS AT DRIVERS SIDE FUSEBOX BEHIND THE DASHBOARD

Convenience
     WIRE COLOR POLARITY LOCATION
     Headlights-Lo DARK GREEN/ GRAY (-) IN HARNESS AT DRIVERS SIDE FUSEBOX BEHIND THE DASHBOARD
     Headlights-Hi WHITE/ VIOLET (-) IN HARNESS AT DRIVERS SIDE FUSEBOX BEHIND THE DASHBOARD
     LF Pk Lt Bulb WHITE/ YELLOW (+) AT FRONT LEFT PARKING LIGHT
     RF Pk Lt Bulb DARK BLUE/DARK GREEN (+) AT FRONT RIGHT PARKING LIGHT
     LR Pk Lt Bulb DARK BLUE (+) AT REAR LEFT PARKING LIGHT
     RR Pk Lt Bulb DARK BLUE (+) AT REAR RIGHT PARKING LIGHT
     All Hazrd Lights LIGHT BLUE/WHITE & GRAY (+) IN HARNESS AT VEHICLE HAZARD SWITCH
  EACH WIRE CONTROLS THE HAZARD LIGHTS ON ONE SIDE OF THE VEHICLE. USE BOTH TO FLASH ALL LIGHTS. USE A PULSED OUTPUT.
     LF Hazrd Bulb DARK BLUE/WHITE (+) AT FRONT LEFT DIRECTIONAL LIGHT
     RF Hazrd Bulb DARK GREEN/ VIOLET (+) AT FRONT RIGHT DIRECTIONAL LIGHT
     LR Hazrd Bulb YELLOW (+) AT REAR LEFT DIRECTIONAL LIGHT
     RR Hazrd Bulb YELLOW (+) AT REAR RIGHT DIRECTIONAL LIGHT
     Wipers-Lo YELLOW/BROWN (-) IN HARNESS AT VEHICLE WIPER SWITCH
     Wipers-Hi WHITE (-) IN HARNESS AT VEHICLE WIPER SWITCH
     Parking Brake YELLOW/WHITE (-) IN HARNESS AT BASE OF PARKING BRAKE HANDLE
  CAN ALSO BE FOUND IN THE HARNESS AT THE REAR OF THE GAUGES AS YELLOW/WHITE, PIN #X2-2. BE SURE TO DIODE ISOLATE THIS WIRE FROM THE GAUGE CLUSTER OR AN ERROR CODE MAY RESULT.
     Trnk Release
  UNLOCKS WITH DOORS.
Remote Start
     WIRE COLOR POLARITY LOCATION
     Battery RED / VIOLET OR RED / GRAY (+) IGNITION SWITCH HARNESS
     Ignition 1 VIOLET/BLACK (+) IGNITION SWITCH HARNESS
     Ignition 2 VIOLET/BROWN (+) IGNITION SWITCH HARNESS
     Accessory 1 VIOLET / YELLOW (+) IGNITION SWITCH HARNESS
     Starter 1 YELLOW/VIOLET (+) IGNITION SWITCH HARNESS
     Anti-Theft Type GM PASSKEY III® ANTI-THEFT SYSTEM
     Anti-Theft Descript THE KEY SENDS AN RF SIGNAL TO THE BCM MODULE THROUGH AN ANTENNA LOCATED AROUND THE IGNITION CYLINDER
     Neutral Safety YELLOW (+) AT TRANSMISSION CONTROL MODULE TO LEFT OF BRAKE PEDAL AT REAR OF FOOTWELL
     Tachometer WHITE (AC) IN HARNESS AT REAR OF GAUGES
     Crankshaft Sensor BLACK / YELLOW (AC) AT ECM MODULE BETWEEN BATTERY AND FIREWALL UNDER HOOD
     Camshaft Sensor YELLOW/LIGHT BLUE (AC) AT ECM MODULE BETWEEN BATTERY AND FIREWALL UNDER HOOD
     Parking Lights BROWN / VIOLET (-) IN HARNESS AT DRIVERS SIDE FUSEBOX BEHIND THE DASHBOARD
     Brake Lights BROWN / YELLOW (+) AT SWITCH ABOVE BRAKE PEDAL
     Reverse Lights DARK GREEN / WHITE (+) IN HARNESS IN DRIVERS KICKPANEL OR DRIVERS DOOR SILL
     Horn BROWN / GRAY (-) IGNITION SWITCH HARNESS
     Rear Defrost BROWN / VIOLET (-) IN HARNESS AT DRIVERS SIDE FUSEBOX BEHIND THE DASHBOARD
     Heated Driver Seat BROWN / GRAY (+) IN HARNESS AT DRIVERS SEAT HEAT CONTROL SWITCH
  PULSE INPUT FROM REMOTE START FOR PROPER OPERATION.
     Heated Passngr Seat YELLOW/DARK BLUE (+) IN HARNESS AT DRIVERS SEAT HEAT CONTROL SWITCH
  PULSE INPUT FROM REMOTE START FOR PROPER OPERATION.

Modules
     WIRE LOCATION
     Please select another category
     Doorlocks/Windows
     WIRE COLOR POLARITY LOCATION
     Power Unlock WHITE (-) IN HARNESS IN DRIVERS KICKPANEL
  CAN ALSO BE FOUND IN THE DRIVERS SIDE FUSEBOX BEHIND THE DASHBOARD - PIN #21.
     PowerLock BLUE/WHITE (-) IN HARNESS IN DRIVERS KICKPANEL
  CAN ALSO BE FOUND IN THE DRIVERS SIDE FUSEBOX BEHIND THE DASHBOARD - PIN #56.
     Driver Mtr Unlock GRAY (REV) AT MOTOR IN DOOR
     Driver Mtr Lock BROWN / YELLOW (REV) AT MOTOR IN DOOR
     Pas Mtr Unlock GRAY (REV) AT MOTOR IN DOOR
     Pas Mtr Lock BROWN / YELLOW (REV) AT MOTOR IN DOOR
     LF Window Up LIGHT GREEN/ GRAY (REV) AT MASTER POWER WINDOW SWITCH IN DRIVERS DOOR
     LF Window Dn YELLOW/VIOLET (REV) AT MASTER POWER WINDOW SWITCH IN DRIVERS DOOR
     RF Window Up YELLOW/BLACK (REV) AT MASTER POWER WINDOW SWITCH IN DRIVERS DOOR
     RF Window Dn BROWN / YELLOW (REV) AT MASTER POWER WINDOW SWITCH IN DRIVERS DOOR
     LR Window Up LIGHT GREEN/ VIOLET (REV) AT MASTER POWER WINDOW SWITCH IN DRIVERS DOOR
     LR Window Dn BROWN / VIOLET (REV) AT MASTER POWER WINDOW SWITCH IN DRIVERS DOOR
     RR Window Up DARK GREEN/ DARK BLUE (REV) AT MASTER POWER WINDOW SWITCH IN DRIVERS DOOR
     RR Window Dn BROWN / DARK BLUE (REV) AT MASTER POWER WINDOW SWITCH IN DRIVERS DOOR
~wirewise~ Verify all wiring with your meter before making any connections!
decibel jj
Member - Posts: 2
Member spacespace
Joined: April 02, 2014
Location: Nevada, United States
Posted: April 04, 2014 at 12:53 PM / IP Logged Link to Post Post Reply Quote decibel jj
Awesome! Thank You
Don't you just hate it when Satan steals your ride and does all these weird ass mods to it?
Aussie Dave
Member - Posts: 9
Member spacespace
Joined: June 24, 2004
Location: Australia
Posted: August 26, 2015 at 8:16 PM / IP Logged Link to Post Post Reply Quote Aussie Dave
You wouldn't have information on the Electric Mirror wiring by any chance for this model?
I've searched everywhere and come up with nothing!
Cheers
Dave
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: August 27, 2015 at 8:21 AM / IP Logged Link to Post Post Reply Quote howie ll
Test the mirror switch, contacts wires and what they do.
Aussie Dave
Member - Posts: 9
Member spacespace
Joined: June 24, 2004
Location: Australia
Posted: August 27, 2015 at 9:51 PM / IP Logged Link to Post Post Reply Quote Aussie Dave
Yep been trying that.
It seems there needs to be two hot plus ground to make the mirror move an any direction.
I would have thought that a hot to "up" would move it up etc..
Cheers
Dave
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: August 28, 2015 at 3:33 AM / IP Logged Link to Post Post Reply Quote howie ll
How many wires off the switch?
Normal configuration should be 2 to motor, both NEG at rest, each one goes live alternatively whilst the other stays to NEG for each direction.
Aussie Dave
Member - Posts: 9
Member spacespace
Joined: June 24, 2004
Location: Australia
Posted: August 29, 2015 at 12:39 AM / IP Logged Link to Post Post Reply Quote Aussie Dave
Thanks Howie,
After playing around with a 12volt battery with the Mirrors disconnected I've figured it out.
Will post some details when I've completed both sides.
Cheers
Cheers
Dave
Aussie Dave
Member - Posts: 9
Member spacespace
Joined: June 24, 2004
Location: Australia
Posted: February 03, 2016 at 9:48 PM / IP Logged Link to Post Post Reply Quote Aussie Dave
Hi Guys,
Sorry for the extended delay. Only just fitted the mirror Up/Down module.
Passenger side UP Green +ve/Grey -ve
Passenger side DOWN Grey +ve/Green -ve

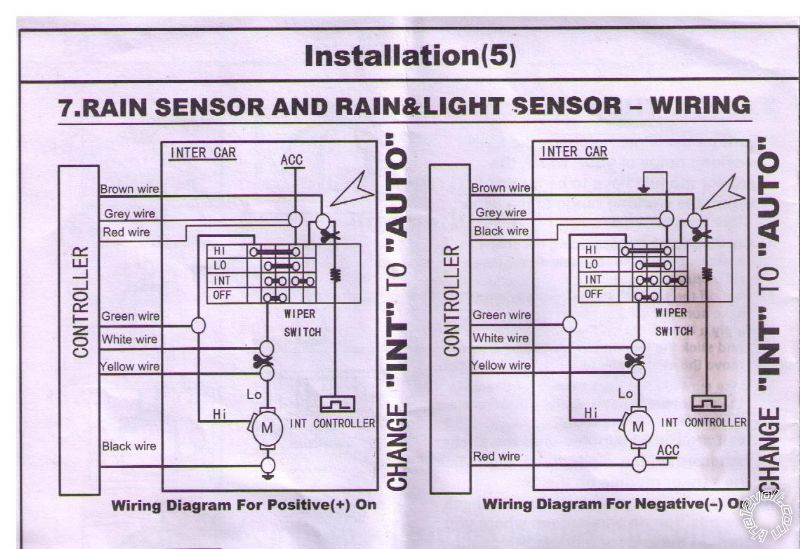

On another note. I'm installing an Auto Wiper/Auto Headlight Module. Is the Spark Negative Switched or Positive Switched?
2014 Chevrolet Spark Alarm and Stereo Wiring -- posted image.
Cheers Guys
Dave
Cheers
Dave
Aussie Dave
Member - Posts: 9
Member spacespace
Joined: June 24, 2004
Location: Australia
Posted: February 08, 2016 at 8:56 PM / IP Logged Link to Post Post Reply Quote Aussie Dave
G'day all...
Yay for perseverance! If anyone is wanting to add Rain Sensing Wipers to their Spark it's dead easy once you've worked out the wiring.
The kit is available here...
From the "Wiper" side of the module. The wiring is connected to the car as follows.
Black - Earth (the car itself)
Green - Connects to the White wire from the Wiper control loom.
Red - Acc.
Grey - Acc.
Brown - Connects to the Purple wire from the Wiper control loom.
For the next two you'll need to cut the Yellow/Brown wire going to the Wiper control loom. Be sure to leave enough wire at both ends to strip and properly solder and either tape or cover with shrinktube.
Yellow - Connects to the Motor side of the Yellow/Brown wire from the Wiper control loom.
White - Connects to the Switch side of the Yellow/Brown wire from the Wiper control loom.
Remember to Solder ALL electrical connections and use good quality electrical tape to cover the joints or shrinktube. I prefer shrinktube over the soldered joints then I cover the entire new wiring with a spiral of black electrical tape to make it into a neat loom.
Hope that assists somebody!
Cheers
Dave
