2014 Suabru Impreza WRX STI Hatchback Alarm/RS/Stereo Wiring


Post ReplyPost New Topic
< Prev Topic Next Topic >
locdorx
Member - Posts: 1
Member spacespace
Joined: June 02, 2014
Location: Ohio, United States
Posted: June 02, 2014 at 3:32 PM / IP Logged

I saw a posting for 2014 WRX wiring.  I was wandering if this is the same as an STI.  Please Help

Thanks in advance

wrx sti
wirewise
Moderator - Posts: 489
Moderator spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member consistently provides reliable informationspace
Joined: March 07, 2002
Location: California, United States
Posted: June 02, 2014 at 3:36 PM / IP Logged
Here is the STI.
2014 SUBARU IMPREZA WRX STI 4DR HATCHBACK WITH STANDARD AUDIO SYSTEM
     Audio/Mobile Video
     WIRE          COLOR          POLARITY          LOCATION
     Battery          BLUE/RED          (+)          RADIO HARNESS
     Accessory          YELLOW/RED          (+)          RADIO HARNESS
     Ground          BLACK/ BLUE          (-)          RADIO HARNESS
     Illumination          VIOLET          (+)          RADIO HARNESS
     Power Antenna          YELLOW/BLACK          (+)          RADIO HARNESS
     LF Speaker (+)          WHITE/ BLACK
     LF Speaker (-)          BLUE/ORANGE
     RF Speaker (+)          GREEN
     RF Speaker (-)          BROWN / YELLOW
     LR Speaker (+)          RED / BLACK
     LR Speaker (-)          WHITE/ RED
     RR Speaker (+)          RED / WHITE
     RR Speaker (-)          GRAY/GREEN
     Steering Cntrls          NO
     Speed Cntrl          NO
     Radio Security          YES
     Security
     WIRE          COLOR          POLARITY          LOCATION
     Battery          WHITE          (+)          IGNITION SWITCH HARNESS
     Ignition 1          GREEN          (+)          IGNITION SWITCH HARNESS
     Starter 1          WHITE/ BLACK          (+)          IGNITION SWITCH HARNESS
     Domelight Super          GREEN/ YELLOW          (-)          AT BODY INTEGRATED UNIT UNDER DRIVER SIDE DASH
     LF Latch          BLUE/ORANGE          (-)          AT BODY INTEGRATED UNIT UNDER DRIVER SIDE DASH
     RF Latch          BLUE/WHITE          (-)          AT BODY INTEGRATED UNIT UNDER DRIVER SIDE DASH
     LR Latch          YELLOW/WHITE          (-)          AT BODY INTEGRATED UNIT UNDER DRIVER SIDE DASH
     RR Latch          WHITE/ RED          (-)          AT BODY INTEGRATED UNIT UNDER DRIVER SIDE DASH
     Trunk Trigger          YELLOW/BLUE          (-)          AT BODY INTEGRATED UNIT UNDER DRIVER SIDE DASH
     Parking Lights          BLACK/ WHITE          (+)          IN HARNESS IN DRIVER KICKPANEL
     Low Crr Pk Lights          BLACK/ WHITE          (-)          AT BODY INTEGRATED UNIT UNDER DRIVER SIDE DASH
     Convenience
     WIRE          COLOR          POLARITY          LOCATION
     All Hazrd Lights          GREEN          (-)          AT BODY INTEGRATED UNIT UNDER DRIVER SIDE DASH
     Wipers-Lo          RED / BLUE          (+)          WIPER CONTROL SWITCH
     Wipers-Hi          BLACK/ BLUE          (+)          WIPER CONTROL SWITCH
     Parking Brake          GRAY          (-)          AT BODY INTEGRATED UNIT UNDER DRIVER SIDE DASH
               ALSO AT PARKING BRAKE SWITCH
     Trnk Release          BLACK/ BLUE          (REV)          AT BODY INTEGRATED UNIT UNDER DRIVER SIDE DASH
               MUST ISOLATE FOR THE BIU WITH A RELAY
     Remote Start
     WIRE          COLOR          POLARITY          LOCATION
     Battery          WHITE          (+)          IGNITION SWITCH HARNESS
     Ignition 1          GREEN          (+)          IGNITION SWITCH HARNESS
     Accessory 1          YELLOW          (+)          IGNITION SWITCH HARNESS
     Accessory 2          BLUE          (+)          IGNITION SWITCH HARNESS
     Starter 1          WHITE/ BLACK          (+)          IGNITION SWITCH HARNESS
     Starter 2          WHITE/ RED          (+)          IGNITION SWITCH HARNESS
     Anti-Theft Type          UNIVERSAL IMMOBILIZER
     Anti-Theft Descript          THE KEY SENDS AN RF SIGNAL TO THE BCM MODULE THROUGH AN ANTENNA LOCATED AROUND THE IGNITION CYLINDER
     Key Sense          BLACK/ WHITE          (+)          IGNITION SWITCH HARNESS
     Tachometer          GRAY/RED          (AC)          IN HARNESS TO GAUGES
     Parking Lights          BLACK/ WHITE          (+)          IN HARNESS IN DRIVER KICKPANEL
     Low Crr. Pk Lights          BLACK/ WHITE          (-)          AT BODY INTEGRATED UNIT UNDER DRIVER SIDE DASH
     Brake Lights          RED / WHITE          (+)          AT SWITCH ABOVE BRAKE PEDAL
     Reverse Lights          BROWN / YELLOW          (+)          IN HARNESS IN PASSENGER KICKPANEL TO REAR
     Horn          RED          (-)          AT BODY INTEGRATED UNIT UNDER DRIVER SIDE DASH
               ALSO BROWN (-) IN HARNESS AT STEERING COLUMN
     Rear Defrost          GREEN/ YELLOW          (-)          AT BODY INTEGRATED UNIT UNDER DRIVER SIDE DASH
     Doorlocks/Windows
     WIRE          COLOR          POLARITY          LOCATION
     Power Unlock          BLUE/BLACK          (-)          AT BODY INTEGRATED UNIT UNDER DRIVER SIDE DASH
     PowerLock          LIGHT GREEN          (-)          AT BODY INTEGRATED UNIT UNDER DRIVER SIDE DASH
     Driver Mtr Unlock          LIGHT GREEN/ YELLOW          (REV)          AT BODY INTEGRATED UNIT UNDER DRIVER SIDE DASH
               THIS WIRE LOCKS ALL DOORS
     Driver Mtr Lock          RED / GREEN          (REV)          AT BODY INTEGRATED UNIT UNDER DRIVER SIDE DASH
               THIS WIRE UNLOCKS THE DRIVER DOOR
     Pas Mtr Unlock          LIGHT GREEN/ YELLOW          (REV)          AT BODY INTEGRATED UNIT UNDER DRIVER SIDE DASH
               THIS WIRE LOCKS ALL DOORS
     Pas Mtr Lock          RED / GREEN          (REV)          AT BODY INTEGRATED UNIT UNDER DRIVER SIDE DASH
     LF Window Up          BLUE/RED          (REV)          AT VEHICLE MASTER WINDOW SWITCH IN DRIVERS DOOR
     LF Window Dn          BLUE/GREEN          (REV)          AT VEHICLE MASTER WINDOW SWITCH IN DRIVERS DOOR
     RF Window Up          RED          (REV)          AT VEHICLE MASTER WINDOW SWITCH IN DRIVERS DOOR
     RF Window Dn          RED / YELLOW          (REV)          AT VEHICLE MASTER WINDOW SWITCH IN DRIVERS DOOR
     LR Window Up          GREEN/ RED          (REV)          AT VEHICLE MASTER WINDOW SWITCH IN DRIVERS DOOR
     LR Window Dn          BLACK / YELLOW          (REV)          AT VEHICLE MASTER WINDOW SWITCH IN DRIVERS DOOR
     RR Window Up          BLUE          (REV)          AT VEHICLE MASTER WINDOW SWITCH IN DRIVERS DOOR
     RR Window Dn          BLUE / YELLOW          (REV)          AT VEHICLE MASTER WINDOW SWITCH IN DRIVERS DOOR
~wirewise~ Verify all wiring with your meter before making any connections!
skip189
Member - Posts: 1
Member spacespace
Joined: March 03, 2015
Location: Montana, United States
Posted: March 03, 2015 at 9:44 AM / IP Logged
I can not find the Tachwire on my 2013 Subaru Outback. It says RED / white and WHITE/ green. One says behind the glove box on the ECM and the other says at the cluster. Which one is where? I have my tach wire hooked up on a WHITE/ green wire behind the glove box on the ECM but my AstroStart remote start says tach failure. Any help would be appreciated. thanks
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: March 03, 2015 at 10:18 AM / IP Logged
Read the post above from wirewise.
Did you test your suspect wires?
killernathan
Member - Posts: 4
Member spacespace
Joined: June 22, 2016
Location: British Columbia, Canada
Posted: June 22, 2016 at 2:03 PM / IP Logged
Thanks for the wiring diagram! I'm trying to locate the wire that turns on the dashboard 'Security Active' light on my wife's 2014 Subaru Impreza Limited, so I can tap the wire for an LED light for the steering column, to make the light stronger and a better deterrent. Any chance you know which wire this may be, and if the STI is the same as the Limited (hatchback)?
Thank you!
2016 Subaru Outback 3.6R
tonanzith
Gold - Posts: 583
Gold spaceThis member consistently provides reliable informationspace
Joined: July 18, 2008
Location: Washington, United States
Posted: June 26, 2016 at 12:13 AM / IP Logged

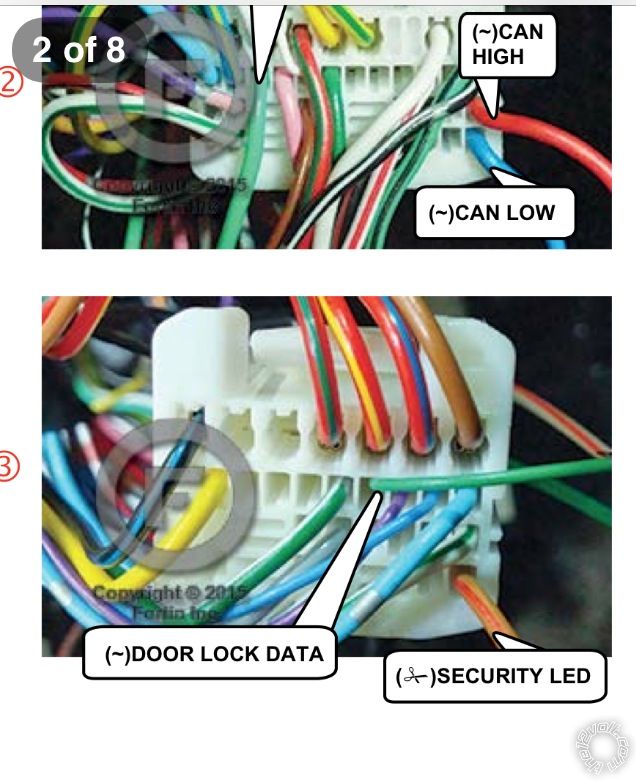

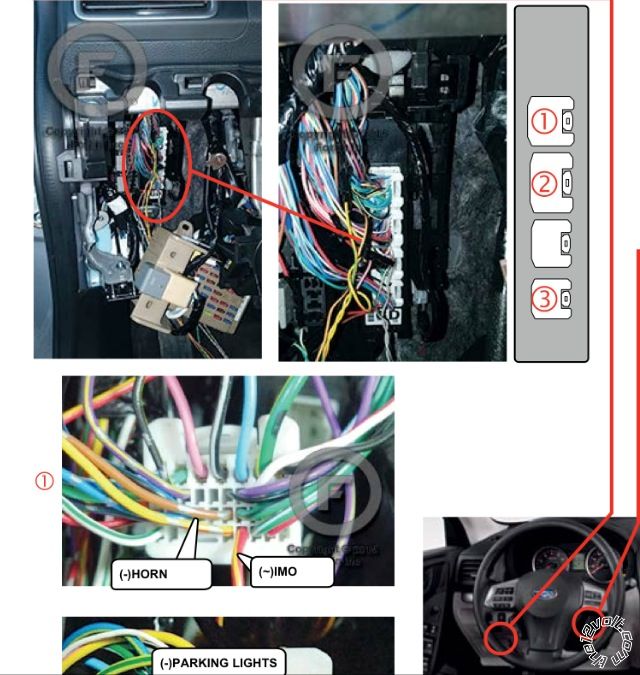

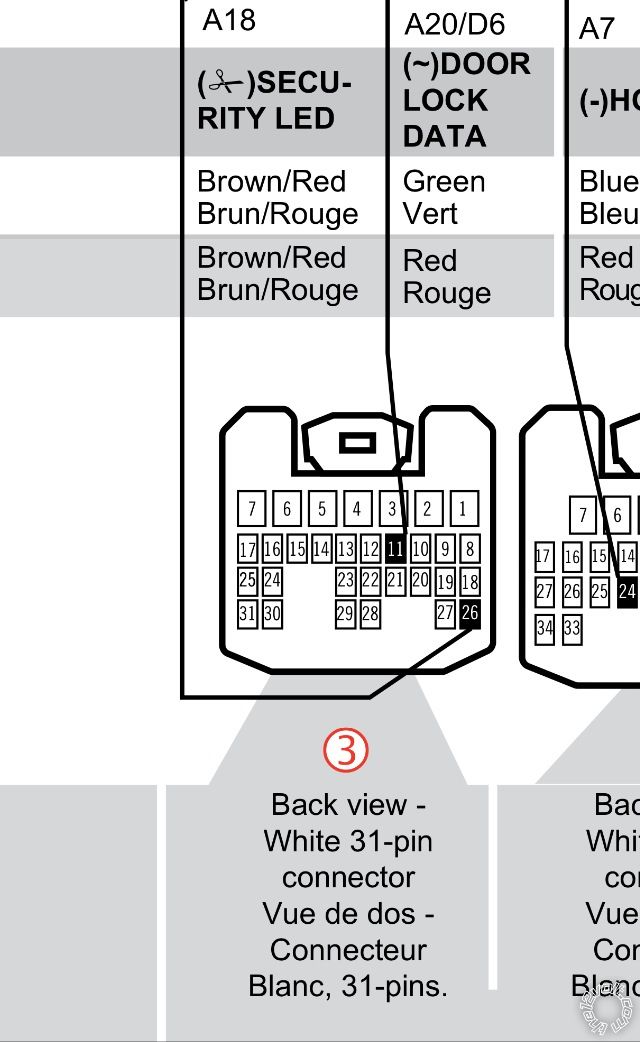

2014 Suabru Impreza WRX STI Hatchback Alarm/RS/Stereo Wiring -- posted image.
2014 Suabru Impreza WRX STI Hatchback Alarm/RS/Stereo Wiring -- posted image.
2014 Suabru Impreza WRX STI Hatchback Alarm/RS/Stereo Wiring -- posted image.
Gary Sather
killernathan
Member - Posts: 4
Member spacespace
Joined: June 22, 2016
Location: British Columbia, Canada
Posted: June 26, 2016 at 7:56 PM / IP Logged
Thank you very much, that is great!!! Lower left of the steering wheel it looks like. Thanks again, this saves me a big hassle!!
2016 Subaru Outback 3.6R
killernathan
Member - Posts: 4
Member spacespace
Joined: June 22, 2016
Location: British Columbia, Canada
Posted: June 30, 2016 at 4:52 PM / IP Logged
Sorry to pester, but by chance you happen to have the same information for a 2015/16 Subaru Outback 3.6R? Many thanks if you do!!
2016 Subaru Outback 3.6R
tonanzith
Gold - Posts: 583
Gold spaceThis member consistently provides reliable informationspace
Joined: July 18, 2008
Location: Washington, United States
Posted: June 30, 2016 at 5:26 PM / IP Logged

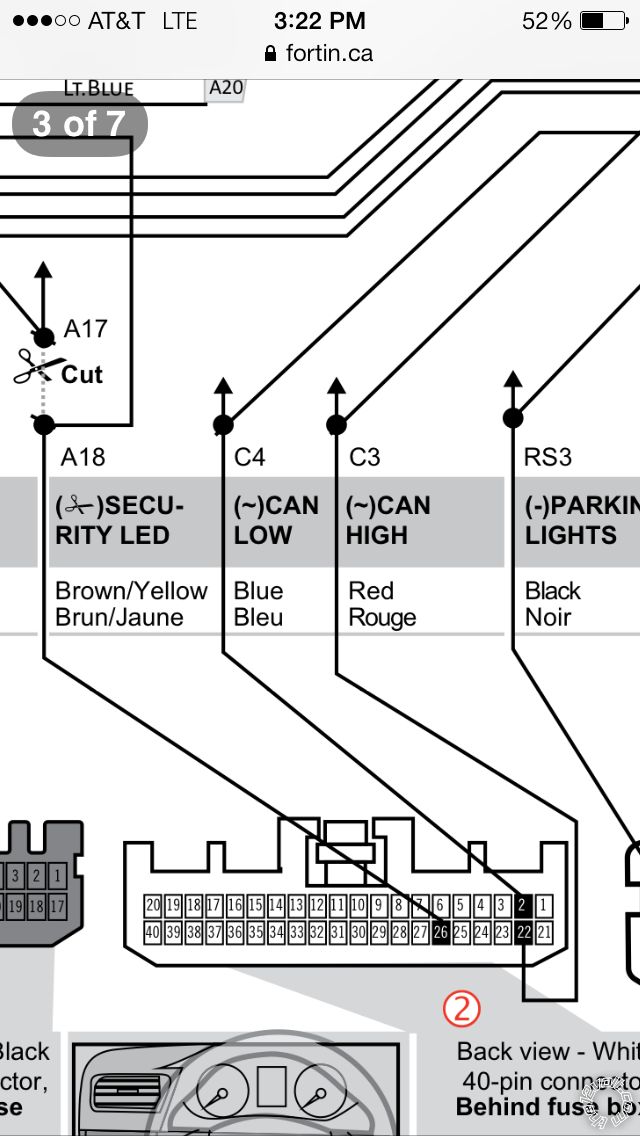

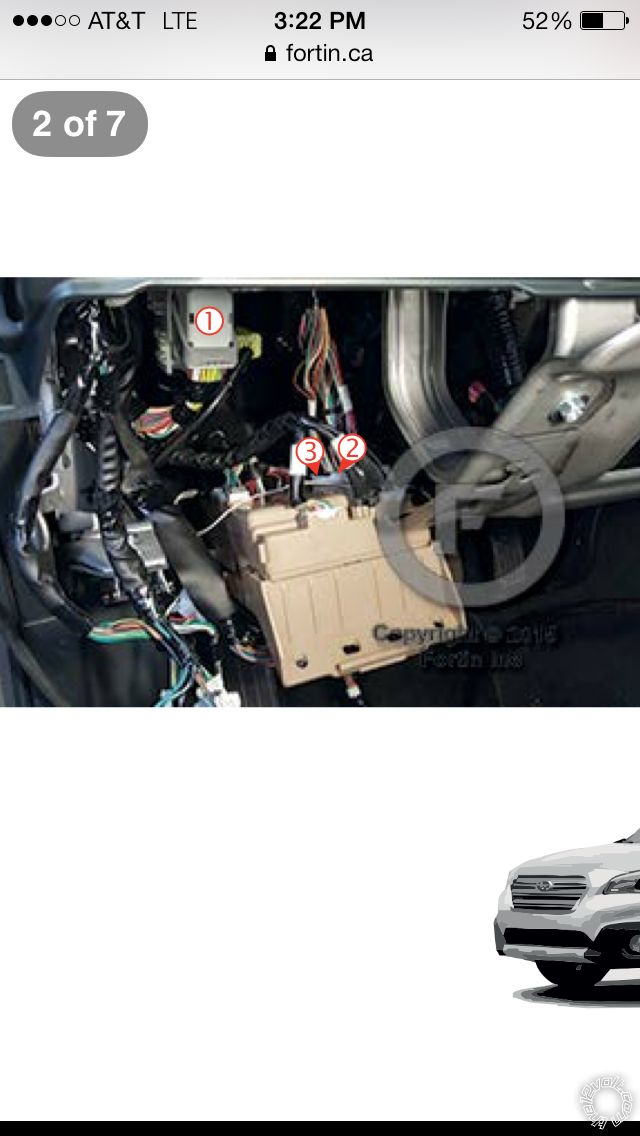

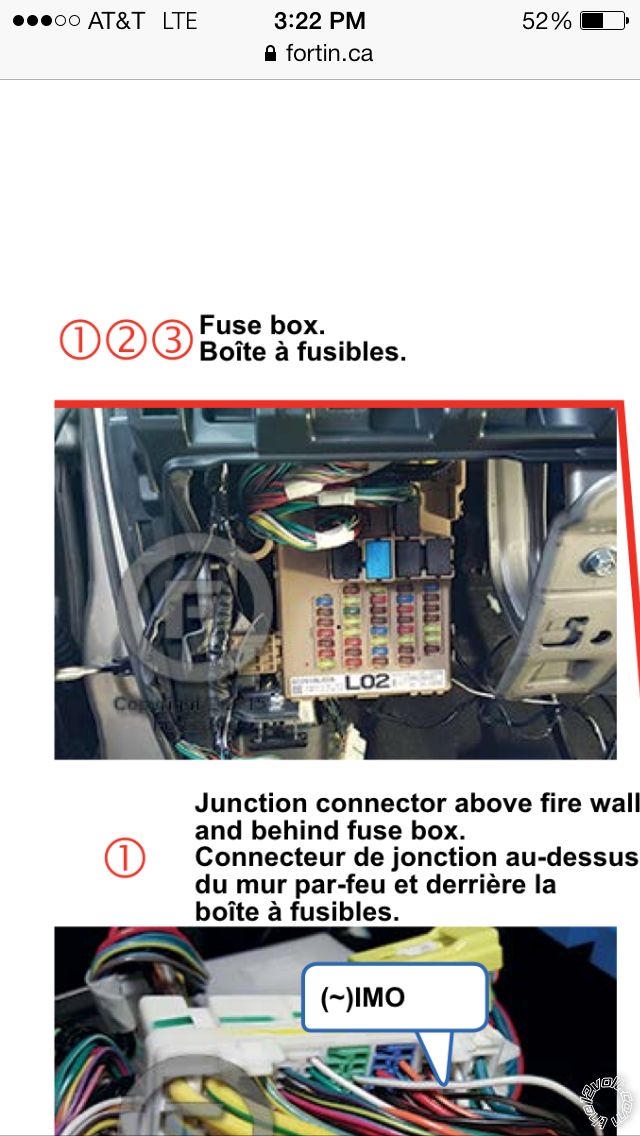

2016 outback

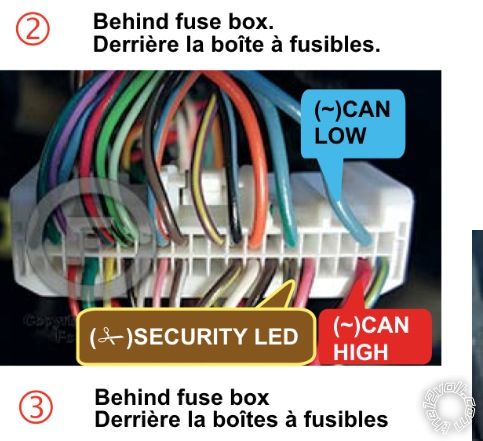

2014 Suabru Impreza WRX STI Hatchback Alarm/RS/Stereo Wiring -- posted image.
2014 Suabru Impreza WRX STI Hatchback Alarm/RS/Stereo Wiring -- posted image.
2014 Suabru Impreza WRX STI Hatchback Alarm/RS/Stereo Wiring -- posted image.
2014 Suabru Impreza WRX STI Hatchback Alarm/RS/Stereo Wiring -- posted image.
Gary Sather
tonanzith
Gold - Posts: 583
Gold spaceThis member consistently provides reliable informationspace
Joined: July 18, 2008
Location: Washington, United States
Posted: June 30, 2016 at 5:30 PM / IP Logged
2014 Suabru Impreza WRX STI Hatchback Alarm/RS/Stereo Wiring -- posted image.
Gary Sather
