rewiring rear interior lights


Post ReplyPost New Topic
< Prev Topic Next Topic >
3lud13
Member - Posts: 2
Member spacespace
Joined: July 13, 2014
Location: Australia
Posted: July 13, 2014 at 10:37 AM / IP Logged
Ok firstly Im not a complete electronic wiz my knowledge isn't super high but I usually get by.
Wanting to rewire my rear interior lights in my 4wd so that I can leave tailgate open and switch lights on and off.
So far I think the problem I am having is I need a double pole switch instead of a single pole.
Am using pre wired led lights for 12volt (6 in total), single pole double throw center off switch, exsisting door switch.
Items from jaycar
Lights SL-3951
Switch SK0991
So I want the switch to work center off, 1 side lights on if door open, other side lights on regardless of door being open

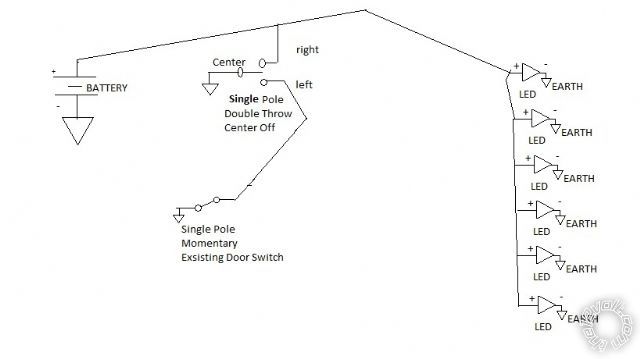

Made abit of a diagram not the greatest as I used paint but it shows roughly what I been trying to do hope it makes sense.
rewiring rear interior lights -- posted image.
i am an idiot
Platinum - Posts: 13,666
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: July 13, 2014 at 12:33 PM / IP Logged
Do not ground the LEDs. Connect their ground connections to the center leg of the switch. Connect ground to the terminal you labeled right. Connect the left terminal just as you have it depicted.
oldspark
Gold - Posts: 4,913
Gold spacespace
Joined: November 03, 2008
Location: Australia
Posted: July 13, 2014 at 6:41 PM / IP Logged
ie...
rewiring rear interior lights -- posted image.
... except with centre-off - IOW door & off positions swapped.
The pic above depicts traditional cabin light wiring.
