Relay for remote start


Post ReplyPost New Topic
< Prev Topic Next Topic >
1st_handler
Member - Posts: 19
Member spacespace
Joined: March 19, 2015
Location: Washington, United States
Posted: March 19, 2015 at 12:34 PM / IP Logged Link to Post Post Reply Quote 1st_handler
I am trying to learn how to install a remote car starter
A lot of post talking about relay. Such as the following:
Pin 85 - Ground
Pin 86 - Starter from alarm (violet)
Pin 30 - Starter 2 on car
Pin 87 - +12V constant - Make sure you install a fuse. 20A should be sufficient.
I am new to electronic but like to learn to do things myself.
My question is: Is this relay already in the vehicle? Or do I have to buy a new one and put in the the fuse box or somewhere? and Where do you plug or put this relay to in the car if you do buy one?
1st_handler
Member - Posts: 19
Member spacespace
Joined: March 19, 2015
Location: Washington, United States
Posted: March 19, 2015 at 12:39 PM / IP Logged Link to Post Post Reply Quote 1st_handler
I do a lot of research, found a lot of remote car starters and their diagram hardly show this relay. Does the remote car starter working without this relay?
1st_handler
Member - Posts: 19
Member spacespace
Joined: March 19, 2015
Location: Washington, United States
Posted: March 19, 2015 at 12:40 PM / IP Logged Link to Post Post Reply Quote 1st_handler
Help please!!!!!!!!!!!clarify please !!!!
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: March 19, 2015 at 12:44 PM / IP Logged Link to Post Post Reply Quote howie ll
Most units have a second low current NEG starter output. Thus:-
85 = low current NEG from RS unit
86 = IGNITION
87 = 20 amp fused constant
30 = output to second starter wire
It's also advisable to place a diode 1N4004 across 85 and 86, band to 86 to prevent back EMF (c. 200 volts) destroying your RS on relay shutdown.
1st_handler
Member - Posts: 19
Member spacespace
Joined: March 19, 2015
Location: Washington, United States
Posted: March 19, 2015 at 12:52 PM / IP Logged Link to Post Post Reply Quote 1st_handler
Thank you for the response.
How does it label?
85 = low current Neg from RS unit. Does it label 85 on the RS unit or on the connectors?
86 = Ignition. Is this just a regular wire?
87 = 20 amp fused constant. Is this just a fuse?
The Doides? Do I need to buy one of this or does it come with the RS. Explain more about the crossing and the band Please.
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: March 19, 2015 at 12:53 PM / IP Logged Link to Post Post Reply Quote howie ll
Look at your unit's instructions but don't worry I'm God I know what you have.
1st_handler
Member - Posts: 19
Member spacespace
Joined: March 19, 2015
Location: Washington, United States
Posted: March 19, 2015 at 12:59 PM / IP Logged Link to Post Post Reply Quote 1st_handler
LOL. Thanks
howie ll
Pot Metal - Posts: 16,466
Pot Metal spacespace
Joined: January 09, 2007
Location: United Kingdom
Posted: March 19, 2015 at 1:05 PM / IP Logged Link to Post Post Reply Quote howie ll
Actually I've had a bad day, shouldn't have taken it out on you and didn't read your last post properly.
85 is the NEG side of a relay coil and marked thus.
86 Yes whatever you mean by a "!regular" wire.
87??? A thicker wire from a constant source fused at 20 amps.
You need to buy the diodes.
Really helps if you explained what RS and what car.
Having said that; from your questions I strongly advise you to save lots of time and $$$ and go to a pro!
1st_handler
Member - Posts: 19
Member spacespace
Joined: March 19, 2015
Location: Washington, United States
Posted: March 19, 2015 at 1:05 PM / IP Logged Link to Post Post Reply Quote 1st_handler

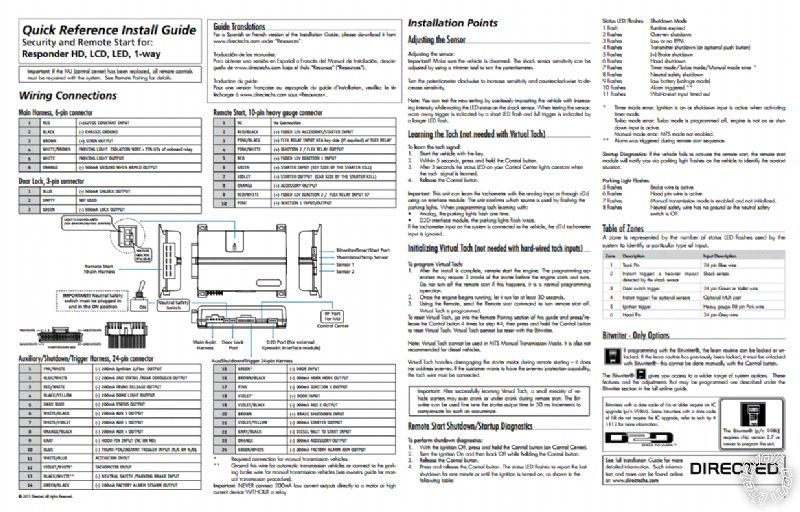

looking into install this into a Tacoma 2010. Which of this wire is 85, 86, 87, and 30
Relay for remote start -- posted image.
1st_handler
Member - Posts: 19
Member spacespace
Joined: March 19, 2015
Location: Washington, United States
Posted: March 19, 2015 at 1:07 PM / IP Logged Link to Post Post Reply Quote 1st_handler
Picture is not clear, but it's for Viper 5706V alarm/remote start
