Autodimming Mirror/Diode Usage


Post ReplyPost New Topic
< Prev Topic Next Topic >
quantumfluxx
Member - Posts: 2
Member spacespace
Joined: November 11, 2015
Location: Delaware, United States
Posted: November 11, 2015 at 11:36 AM / IP Logged Link to Post Post Reply Quote quantumfluxx
I have a Gentex auto-dimming rear view mirror that has a 5 pin input on the backside of the mirror. One of the pins disables the auto-dimming functionality when power is supplied to it. The pin was designed to be connected to the vehicle's backup lights or another wire that would have power [only] when the transmission is in reverse. Achieving this would seem to be simple enough, but I would also like the auto-dimming feature to 'pause' when the vehicle's dome light is lit. I am still a beginner when it comes to electronics, but I believe I have devised a solution. Any insight into this would be much appreciated. Thanks :)

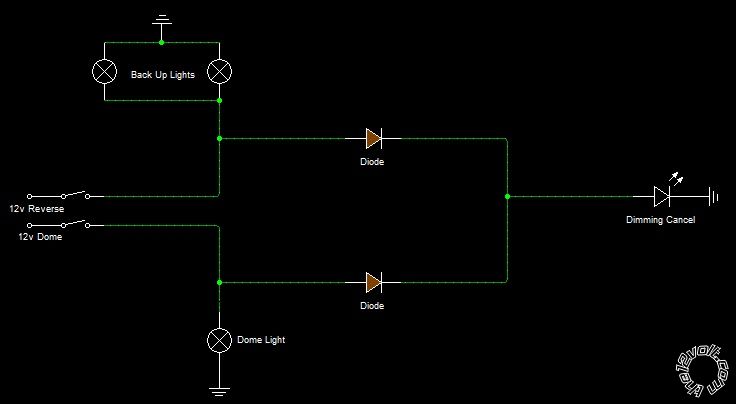

Autodimming Mirror/Diode Usage -- posted image.
i am an idiot
Platinum - Posts: 13,686
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: November 11, 2015 at 4:00 PM / IP Logged Link to Post Post Reply Quote i am an idiot
Chances are your domelight system is exactly opposite of what you posted. Make Model and Year of the vehicle in question?
quantumfluxx
Member - Posts: 2
Member spacespace
Joined: November 11, 2015
Location: Delaware, United States
Posted: November 11, 2015 at 10:12 PM / IP Logged Link to Post Post Reply Quote quantumfluxx
2000 Honda Accord 4 Door SE
Here is the wiring diagram for the dome light:
https://drive.google.com/file/d/0B_BudsUOt_srT3B4X0IyYVNoZlU/view?usp=sharing
