Viper 5706v, 2001 Honda s2000


Post ReplyPost New Topic
< Prev Topic Next Topic >
stevebx
Member - Posts: 5
Member spacespace
Joined: December 08, 2016
Location: New York, United States
Posted: December 26, 2016 at 12:39 AM / IP Logged Link to Post Post Reply Quote stevebx
Hi all, long time lurker but never posted. Lots of info here and hope to get some assistance before going further.
I was able to successfully install a Viper 5706V into my 2001 Honda s2000 without remote start. I want to take it a step further and connect the remaining wires to activate the remote start. I've read something about a 3rd ignition wire that may not be included in the DEI diagram which I think is that Orange wire that I connected the starter kill Violet/Green wires . Any help would be appreciated, specifically wire to wire of Remote Start Harness.
Remote Starter Wiring Harness as it stands now:
Remote Start, 10-pin heavy gauge connector
1 NC No Connection
2 RED / BLACK (+) FUSED 12V ACCESSORY/STARTER INPUT - Not Connected
3 PINK/BLACK (+) FLEX RELAY INPUT 87A FLEX RELAY - Not Connected
4 PINK/WHITE (+) IGNITION 2 / FLEX RELAY OUTPUT - Not Connected
5 RED (+) FUSED 12V IGNITION 1 INPUT WHITE/ Blue - Not Connected
6 GREEN (+) STARTER INPUT (KEY SIDE) GREEN/ Black - Orange Wire (Ignition Harness)
7 VIOLET (+) STARTER OUTPUT (CAR SIDE)GREEN/ Black - Orange Wire (Ignition Harness)
8 ORANGE (+) ACCESSORY OUTPUT - Not Connected
9 RED / WHITE (+) FUSED 12V IGNITION 2
10 PINK (+) IGNITION 1 INPUT/OUTPUT - White (Ignition Harness)
stevebx
Member - Posts: 5
Member spacespace
Joined: December 08, 2016
Location: New York, United States
Posted: December 26, 2016 at 12:47 AM / IP Logged Link to Post Post Reply Quote stevebx
Sorry...
10 PINK (+) IGNITION 1 INPUT/OUTPUT - BLACK / YELLOW (Ignition Harness)
stevebx
Member - Posts: 5
Member spacespace
Joined: December 08, 2016
Location: New York, United States
Posted: December 26, 2016 at 12:53 AM / IP Logged Link to Post Post Reply Quote stevebx

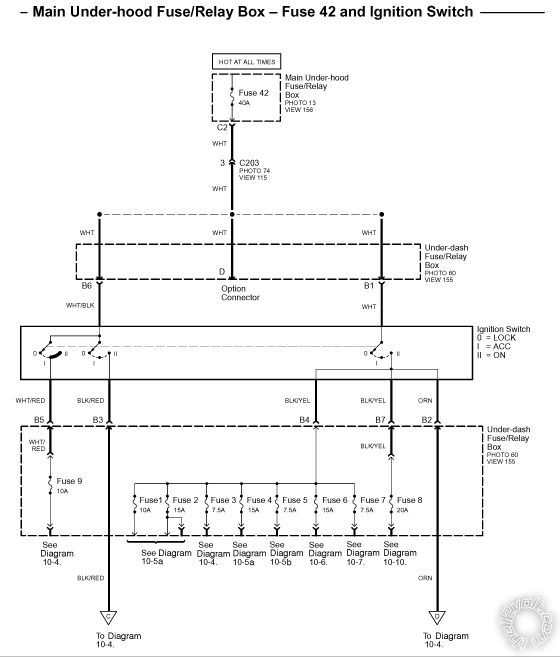

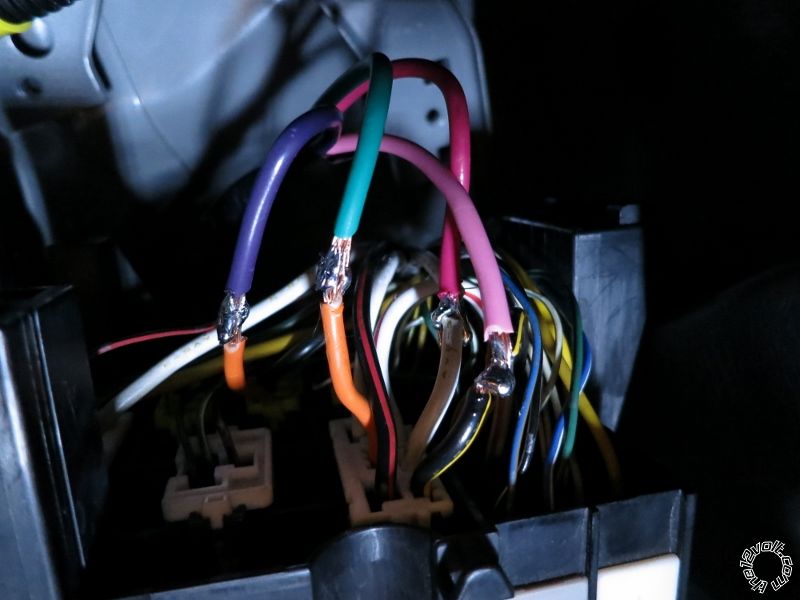

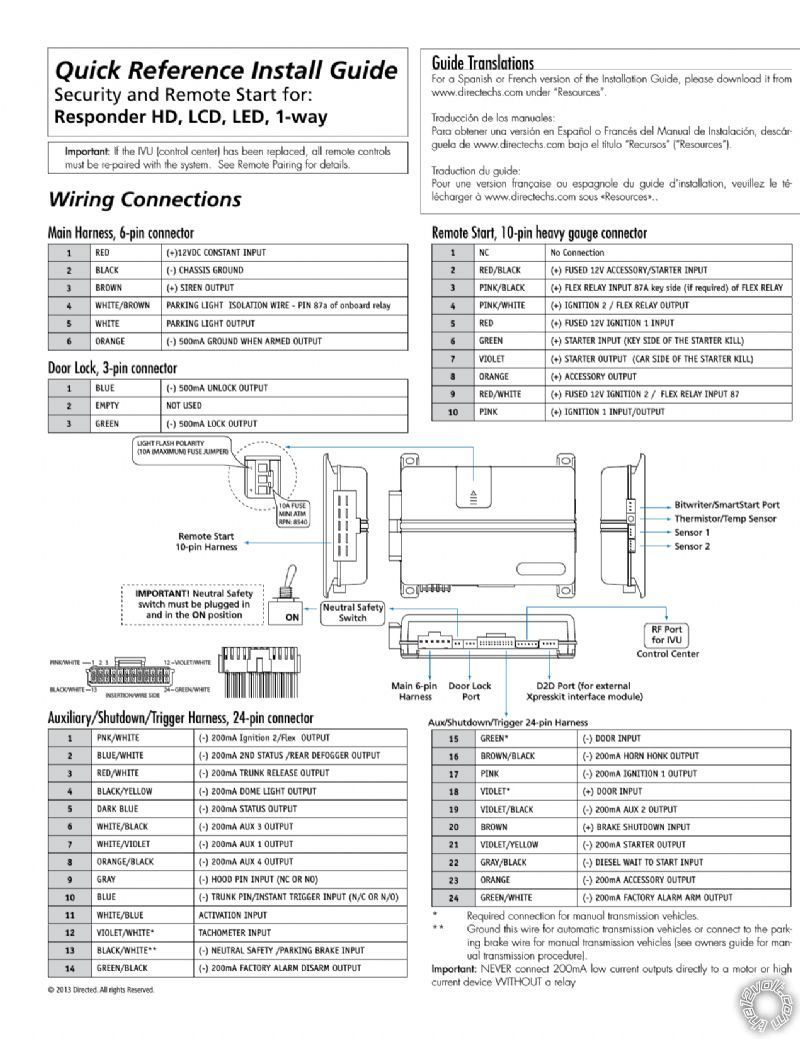

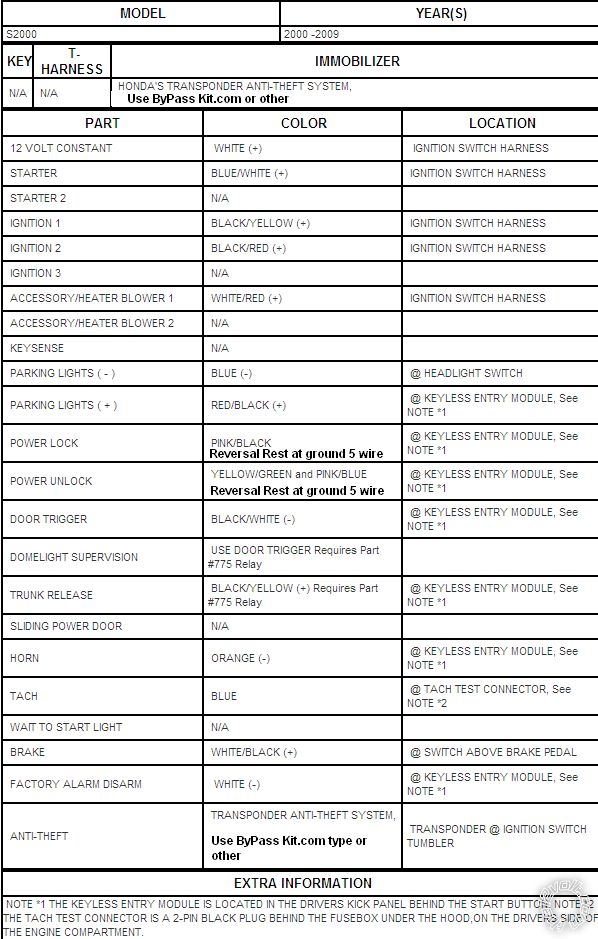

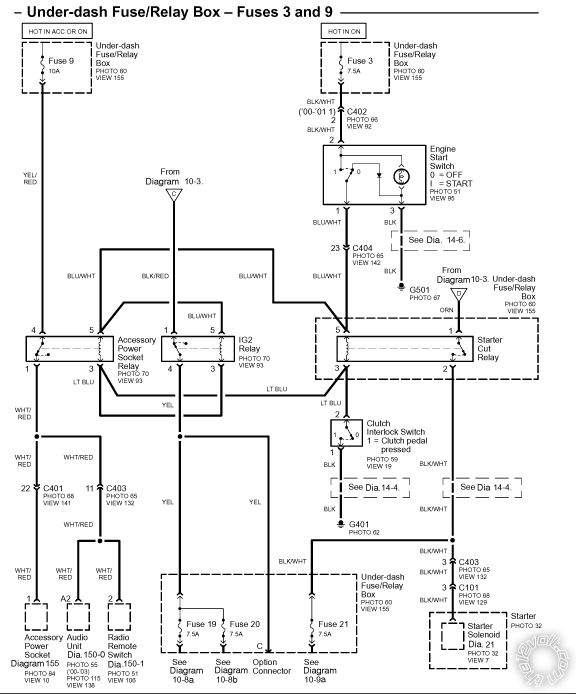

Viper 5706v, 2001 Honda s2000 -- posted image.
Viper 5706v, 2001 Honda s2000 -- posted image.
Viper 5706v, 2001 Honda s2000 -- posted image.
Viper 5706v, 2001 Honda s2000 -- posted image.
Viper 5706v, 2001 Honda s2000 -- posted image.
stevebx
Member - Posts: 5
Member spacespace
Joined: December 08, 2016
Location: New York, United States
Posted: January 11, 2017 at 11:40 AM / IP Logged Link to Post Post Reply Quote stevebx
Update
Remote Start, 10-pin heavy gauge connector
1 NC No Connection
2 RED / BLACK (+) FUSED 12V ACCESSORY/STARTER INPUT - White (Ifnition Harness)
3 PINK/BLACK (+) FLEX RELAY INPUT 87A FLEX RELAY - Not Connected
4 PINK/WHITE (+) IGNITION 2 / FLEX RELAY OUTPUT - Not Connected
5 RED (+) FUSED 12V IGNITION 1 INPUT WHITE/ Blue - White (Ignition Harness)
6 GREEN (+) STARTER INPUT (KEY SIDE)- Orange Wire (Ignition Harness)
7 VIOLET (+) STARTER OUTPUT (CAR SIDE) - Orange Wire (Ignition Harness)
8 ORANGE (+) ACCESSORY OUTPUT - WHITE/ Red (Ignition Harness)
9 RED / WHITE (+) FUSED 12V IGNITION 2 - White (Ignition Harness)
10 PINK (+) IGNITION 1 INPUT/OUTPUT - White (Ignition Harness)
H2/12 Violet/White (+) - Blue (Engine bay by firewall - black plug)
H2/13 BLACK/ White - Parking Brake wire in center console
Neutral safety switch connected to alarm using small black plug and switched On.
Before proceeding with 556UW and clutch bypass, I am pressing remote start button with key in ignition and clutch pedal depressed...I get no crank at all. Any ideas?
silvercivicsir
Copper - Posts: 400
Copper spacespace
Joined: November 21, 2003
Posted: January 11, 2017 at 12:29 PM / IP Logged Link to Post Post Reply Quote silvercivicsir
are you putting it in "ready mode" ? start car, e-brake up, foot off the brake, press button on remote, lights flash, open / close door, and then press lock?
stevebx
Member - Posts: 5
Member spacespace
Joined: December 08, 2016
Location: New York, United States
Posted: January 13, 2017 at 1:46 PM / IP Logged Link to Post Post Reply Quote stevebx
Yes, I've done that as well. Car stays running with key out, then open/close door, arm and it cuts off. Remote shows manual icon after its done.
silvercivicsir
Copper - Posts: 400
Copper spacespace
Joined: November 21, 2003
Posted: January 13, 2017 at 5:17 PM / IP Logged Link to Post Post Reply Quote silvercivicsir
does the dash light up? when you try and remote start it?
oh wait i just saw it, its the neutral safety switch.. you need to hook it up to the E-brake wire hooking it up to the "flip switch" won't work..
