wyciwug

Copper - Posts: 156

Joined: February 08, 2008

Location: Virginia, United States

Posted: February 22, 2017 at 9:04 PM / IP Logged

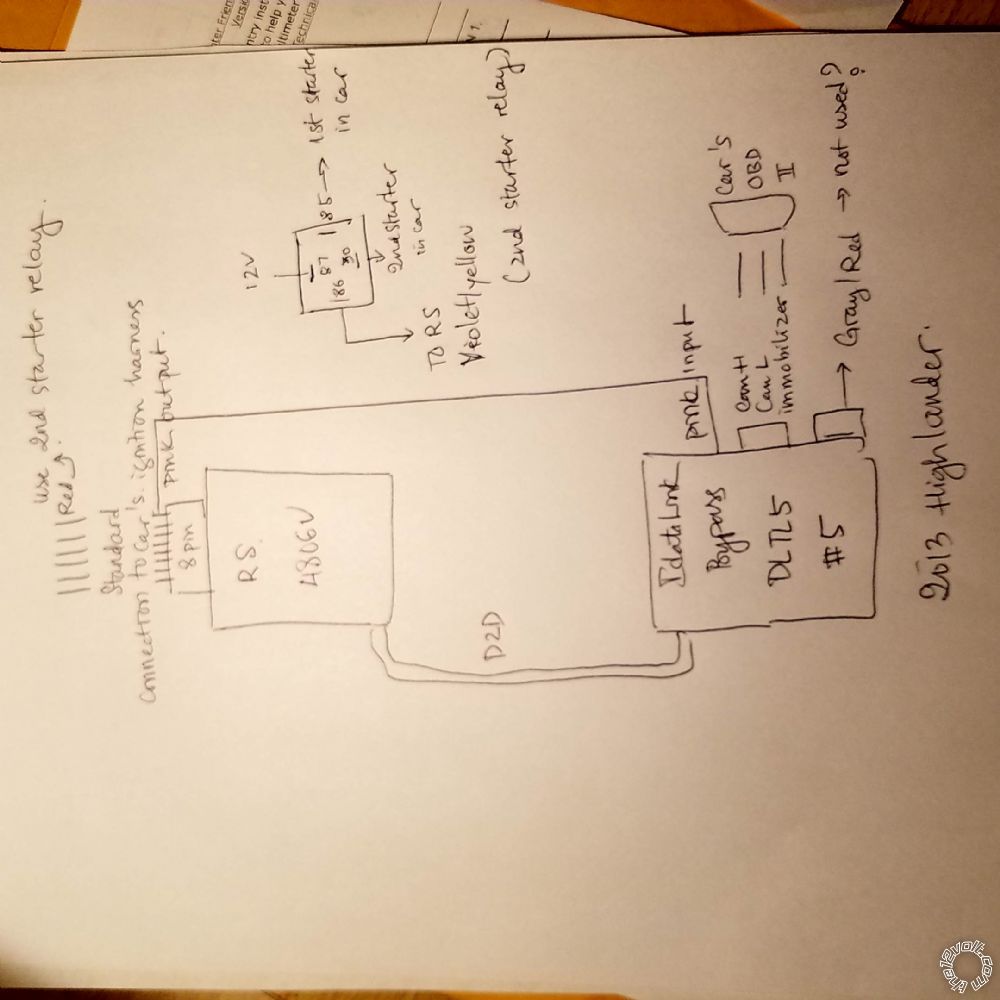

I got this diagram drawed up for the wirings for up coming car im going to do.

Can somebody correct me if im wrong please

Thanks

2013 highlander keystart/viper 4806v/ alcaads -- posted image.

dcd

Back to Top

wyciwug

Copper - Posts: 156

Joined: February 08, 2008

Location: Virginia, United States

Posted: February 23, 2017 at 11:31 AM / IP Logged

hello all

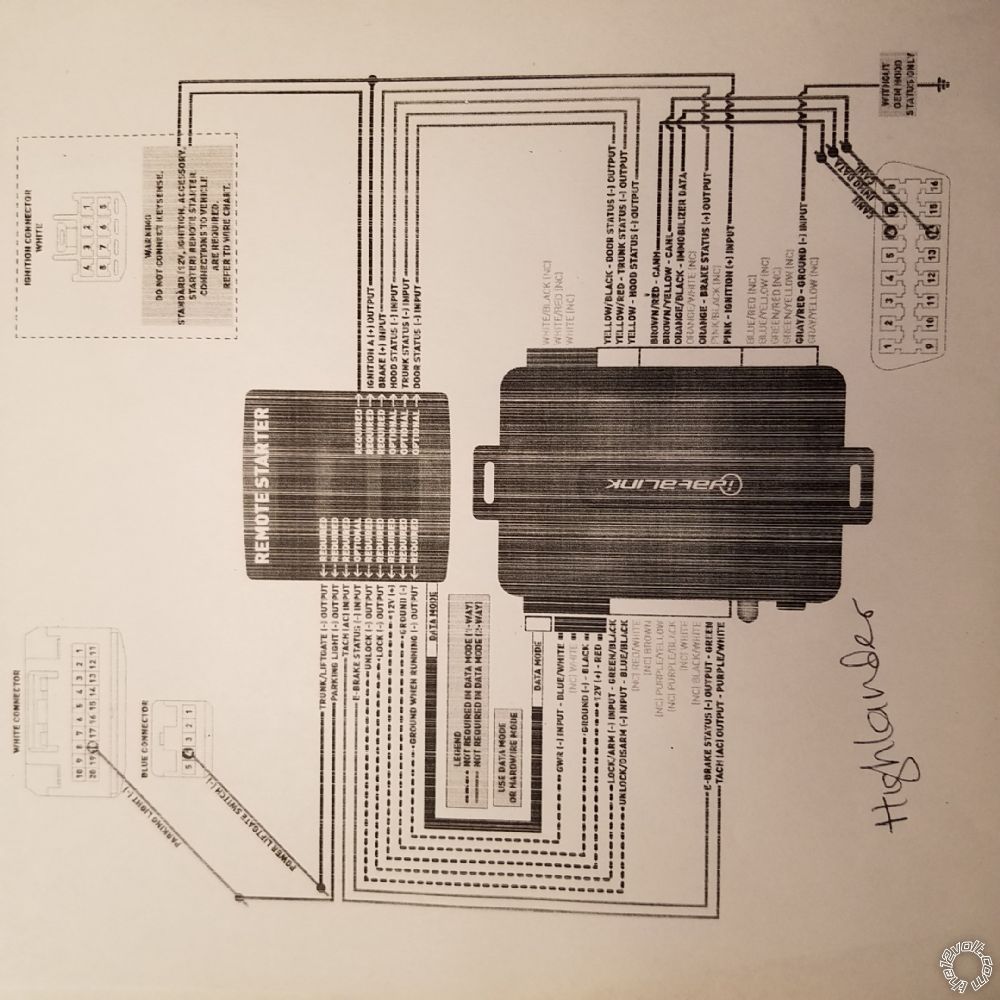

The Idata link wiring diagram is showing Parking light connection between Remote starter 4806v to car's white connector pin #18. Where do I find this wire from the Remote start? As for the trunk/lift gate (-) output, will that be the RED / white wire from the 24-pin Harness?

Thanks members.

dcd

Back to Top

silvercivicsir

Copper - Posts: 402

Joined: November 21, 2003

Posted: February 23, 2017 at 11:47 AM / IP Logged

it's the thick white wire from the viper brain (make sure to change it to negative)

Back to Top

Search for other posts by silvercivicsir

wyciwug

Copper - Posts: 156

Joined: February 08, 2008

Location: Virginia, United States

Posted: February 23, 2017 at 11:49 AM / IP Logged

The only thing I see is

Main Harness, 6-pin connector

H/5 White- Pin 30 of light flash relay.

What does this mean?

dcd

Back to Top

silvercivicsir

Copper - Posts: 402

Joined: November 21, 2003

Posted: February 23, 2017 at 3:46 PM / IP Logged

yup thats the wire you want to use, when you insert the fuse (under the cover), make sure to select negative light flash

Back to Top
