2017 Chevy Colorado Radio Wiring


Post ReplyPost New Topic
< Prev Topic Next Topic >
jfreez
Member - Posts: 23
Member spacespace
Joined: December 18, 2006
Location: United States
Posted: August 14, 2017 at 6:43 PM / IP Logged
does anyone have the install wiring information for a 2017 Colorado? radio pin outs is my main need
i am an idiot
Platinum - Posts: 13,441
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: August 14, 2017 at 7:27 PM / IP Logged
What are you trying to do?
jfreez
Member - Posts: 23
Member spacespace
Joined: December 18, 2006
Location: United States
Posted: August 14, 2017 at 7:54 PM / IP Logged
Looking for the speaker outputs, wanted to see if there is something that can be used as an remote turn on.
I would also just like to look at what else is coming in and out of the unit
i am an idiot
Platinum - Posts: 13,441
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: August 15, 2017 at 10:00 AM / IP Logged

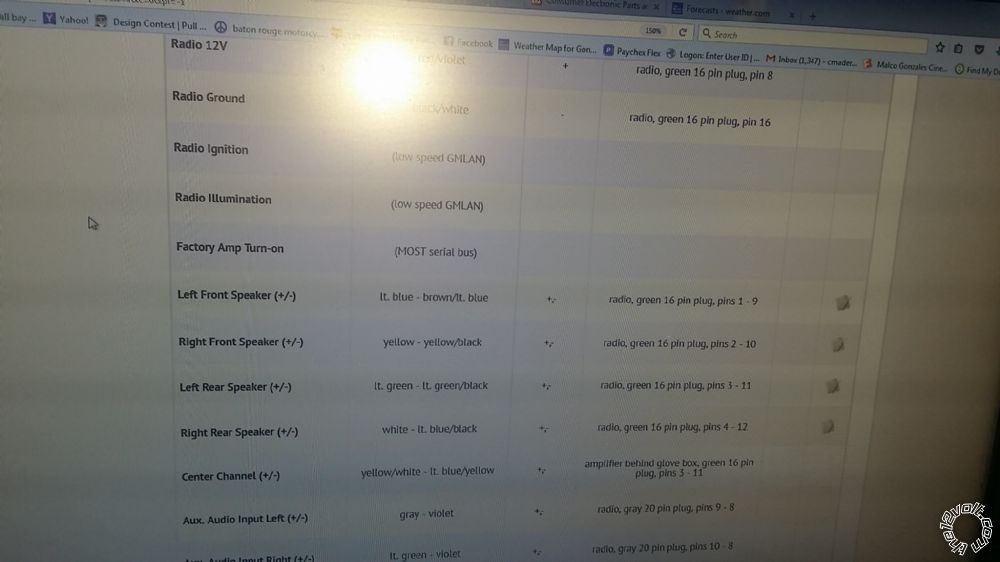

2017 Chevy Colorado Radio Wiring -- posted image.
jfreez
Member - Posts: 23
Member spacespace
Joined: December 18, 2006
Location: United States
Posted: August 15, 2017 at 6:56 PM / IP Logged
Thanks, that will be very helpful
