spartanfan

Member - Posts: 1

Joined: August 24, 2017

Posted: August 24, 2017 at 5:18 PM / IP Logged

Here's what I'm trying to accomplish...

With engine on/running:

Upon switch activation, accessory will power up +12vdc with constant power;

When door opens, ground momentary, Relay will open accessory circuit and stay latched open to kill accessory (Keep in mind +12vdc is still constant...but not flowing to the accessory any longer);

Latch will reset (close) when the constant +12vdc is removed.

Any help is greatly appreciated! Thanks!

Back to Top

the12volt

Administrator - Posts: 3,955

This member has made a donation to the12volt.com. Click here for more info.

This member has been recognized as an authority in Electrical Theory. Click here for more info.

This member has been recognized as an authority in Mobile Audio and Video. Click here for more info.

This member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.

Joined: March 07, 2002

Location: Louisiana, United States

Posted: August 24, 2017 at 8:56 PM / IP Logged

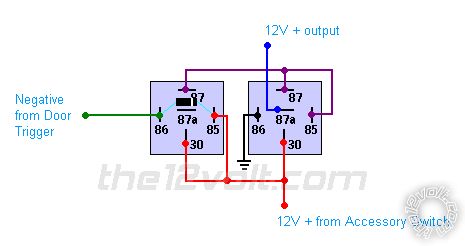

If I understood your description above correctly, this should work.

Open With Momentary, Stay Latched Until Reset -- posted image.
