2002 Blazer Remote Start- Starter Wire


Post ReplyPost New Topic
< Prev Topic Next Topic >
7ronin
Member - Posts: 5
Member spacespace
Joined: November 22, 2017
Location: Nebraska, United States
Posted: November 22, 2017 at 5:55 PM / IP Logged Link to Post Post Reply Quote 7ronin
Hello,

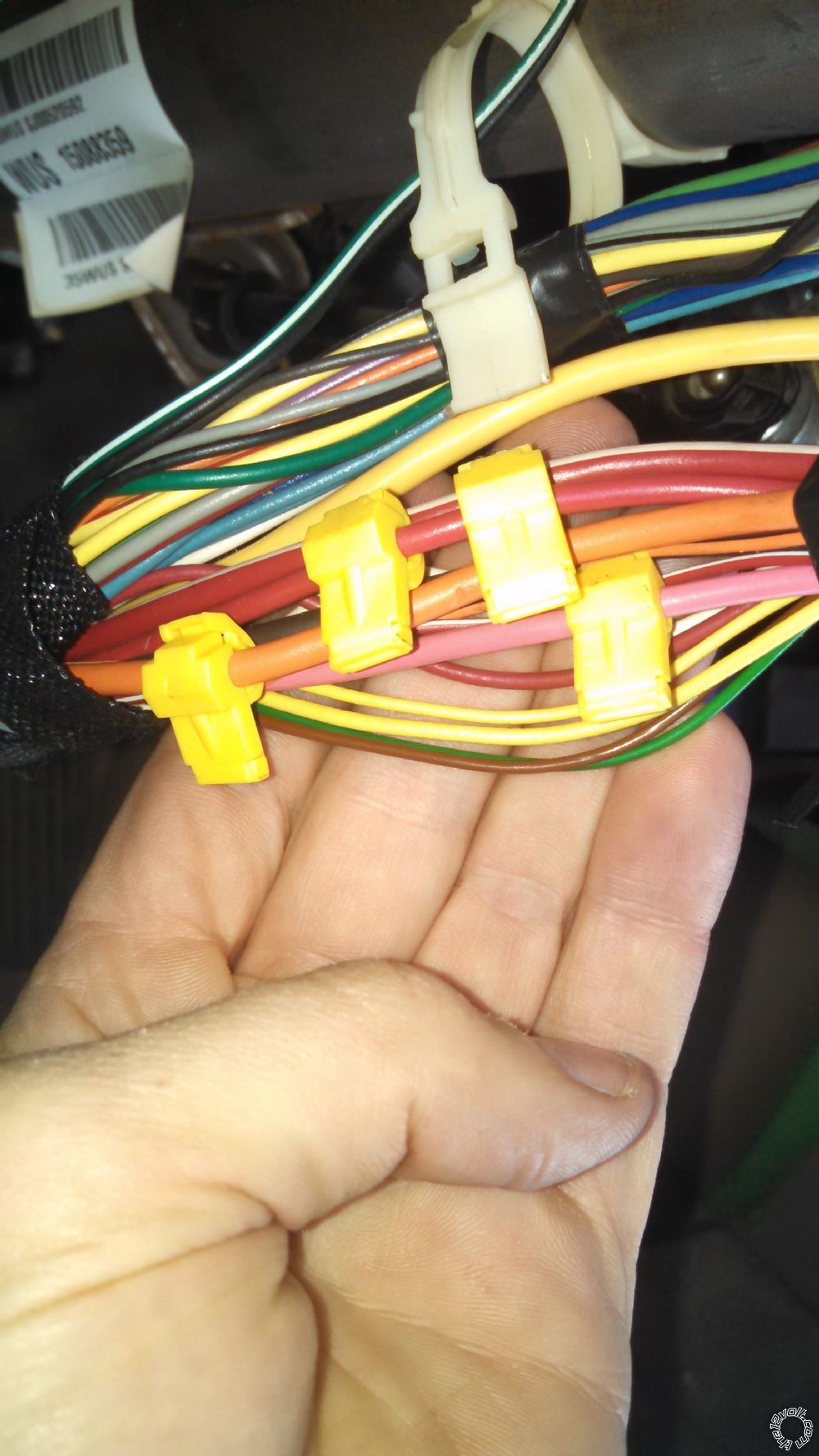

I am attempting to install a remote start kit in my 2002 Blazer Automatic and the kit I have (Crimestopper RS4-G5) and I'm having trouble locating the yellow starter wire that is supposed to be in the ignition harness. There are two small yellow wires in this harness (small gauge, like 16-18). One is larger than the other and both go to the ignition switch but neither of these wires look like what I have seen in the install diagrams here. The picture Below are the yellow wires I am talking about (the large yellow "wire" by my middle finger is the airbag wire)- Can anyone offer any advice as to what wire is the starter wire that I need to connect to? Thanks
2002 Blazer Remote Start- Starter Wire -- posted image.
tdbaker021
Copper - Posts: 98
Copper spacespace
Joined: November 27, 2016
Location: Tennessee, United States
Posted: November 22, 2017 at 7:44 PM / IP Logged Link to Post Post Reply Quote tdbaker021
You can check it with a DMM. This wire will have 12V current when the key is in the start position.
7ronin
Member - Posts: 5
Member spacespace
Joined: November 22, 2017
Location: Nebraska, United States
Posted: November 22, 2017 at 7:54 PM / IP Logged Link to Post Post Reply Quote 7ronin
Thanks- I can definitely do that.
I wonder why the start wire is so small on this model Blazer? My concern is that the remote start kit wire that I will be connecting to is like a 12ga wire. If the wire is just meant as a signal to show that the car is requesting starter crank I guess it OK.....
tdbaker021
Copper - Posts: 98
Copper spacespace
Joined: November 27, 2016
Location: Tennessee, United States
Posted: November 22, 2017 at 9:57 PM / IP Logged Link to Post Post Reply Quote tdbaker021
It will be fine. I just installed one in my 2000 Silverado and that starter wire was smaller then then my 2006 Silverado starter wire.
kreg357
Platinum - Posts: 7,577
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Electrical Theory. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: January 30, 2009
Location: Pennsylvania, United States
Posted: November 23, 2017 at 2:20 AM / IP Logged Link to Post Post Reply Quote kreg357
Just a note about your install...
I'm not sure from your vehicle description if this is a Trailblazer or an S-10 Blazer but...
There is a White IGN2 wire in the ignition harness that must be powered during a remote start or transmission
problems will occur. This White IGN2 wire is a slightly smaller gauge wire than the Pink IGN1 wire.
Also, there is a thick Red/White wire that is a +12V constant source. You should split the Crimestoppers
load between these two wires. From the photo, it looks like you have two T-Taps on the Red wire and none
on the Red/White wire.
I won't mention anything about your use of T-Taps.... 2002 Blazer Remote Start- Starter Wire -- posted image.
Soldering is fun!
7ronin
Member - Posts: 5
Member spacespace
Joined: November 22, 2017
Location: Nebraska, United States
Posted: November 23, 2017 at 9:07 AM / IP Logged Link to Post Post Reply Quote 7ronin
Ahh,
Appreciate the advice in the IGN-2 Wire. The instructions for this kit are sorely lacking- I have found several errors already and the kit stated to tap both into red 12v wire only. As far as the T-Taps go I'm not concerned- electronics industry uses these types of connections regularly (the are called insulation displacement connectors or IDC). I would not use them in anything but in-car environments as opposed to underhood etc. I also like the idea of being able to quickly remove any installed equipment. Lastly, the lack of decent instructions means that the removable spades on the T-Taps makes troubleshooting easier.
Again- much appreciated.
kreg357 wrote:
Just a note about your install...
I'm not sure from your vehicle description if this is a Trailblazer or an S-10 Blazer but...
There is a White IGN2 wire in the ignition harness that must be powered during a remote start or transmission
problems will occur. This White IGN2 wire is a slightly smaller gauge wire than the Pink IGN1 wire.
Also, there is a thick Red/White wire that is a +12V constant source. You should split the Crimestoppers
load between these two wires. From the photo, it looks like you have two T-Taps on the Red wire and none
on the Red/White wire.
I won't mention anything about your use of T-Taps.... 2002 Blazer Remote Start- Starter Wire -- posted image.
7ronin
Member - Posts: 5
Member spacespace
Joined: November 22, 2017
Location: Nebraska, United States
Posted: November 23, 2017 at 9:10 AM / IP Logged Link to Post Post Reply Quote 7ronin
tdbaker021 wrote:
It will be fine. I just installed one in my 2000 Silverado and that starter wire was smaller then then my 2006 Silverado starter wire.
I hear you but I'm still concerned- some wiring diagrams I have seen have labeled the two small yellow wires as part of the VATS system....
I ordered a factory schematic from Ebay and I'm going to see if I can verify what wires are what before I risk screwing up the VATS stuff and then having to replace the BCM etc.
Appreciate the help!
kreg357
Platinum - Posts: 7,577
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Electrical Theory. Click here for more info.spaceThis member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.spacespace
Joined: January 30, 2009
Location: Pennsylvania, United States
Posted: November 23, 2017 at 3:03 PM / IP Logged Link to Post Post Reply Quote kreg357
You could also pull off the steering column covers and look at the actual ignition switch
harness connector where it plugs into the ignition switch and follow the wires from there.
Using a Digital MultiMeter is another option. Set to 20V DC. The Starter wire will only
show +12V when the key is in the START position. A Passlock 2 wire will show around 4.5V.
Soldering is fun!
tdbaker021
Copper - Posts: 98
Copper spacespace
Joined: November 27, 2016
Location: Tennessee, United States
Posted: November 23, 2017 at 3:52 PM / IP Logged Link to Post Post Reply Quote tdbaker021
7ronin wrote:
tdbaker021 wrote:
It will be fine. I just installed one in my 2000 Silverado and that starter wire was smaller then then my 2006 Silverado starter wire.
I hear you but I'm still concerned- some wiring diagrams I have seen have labeled the two small yellow wires as part of the VATS system....
I ordered a factory schematic from Ebay and I'm going to see if I can verify what wires are what before I risk screwing up the VATS stuff and then having to replace the BCM etc.
Appreciate the help!
Always best to verify the wire with a DMM. Your starter wire will show 12V when the key is in the start position and the VATS will be much less. Is this vehicle a Trailblazer or S-10 Blazer?
tdbaker021
Copper - Posts: 98
Copper spacespace
Joined: November 27, 2016
Location: Tennessee, United States
Posted: November 23, 2017 at 3:52 PM / IP Logged Link to Post Post Reply Quote tdbaker021
kreg357 wrote:
You could also pull off the steering column covers and look at the actual ignition switch
harness connector where it plugs into the ignition switch and follow the wires from there.
Using a Digital MultiMeter is another option. Set to 20V DC. The Starter wire will only
show +12V when the key is in the START position. A Passlock 2 wire will show around 4.5V.
Didn't see your reply until I posted mine lol
