dr1v3on3

Member - Posts: 6

Joined: November 30, 2017

Location: Oklahoma, United States

Posted: December 01, 2017 at 11:33 AM / IP Logged

I am trying to get a latching relay setup to work. I have a ground controlled by a momentary switch and I will need a ground coming out of the setup. IF the above setup will work where can I get the small latching relay? I am having a hard time finding one.

Back to Top

the12volt

Administrator - Posts: 3,955

This member has made a donation to the12volt.com. Click here for more info.

This member has been recognized as an authority in Electrical Theory. Click here for more info.

This member has been recognized as an authority in Mobile Audio and Video. Click here for more info.

This member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.

Joined: March 07, 2002

Location: Louisiana, United States

Posted: December 01, 2017 at 12:44 PM / IP Logged

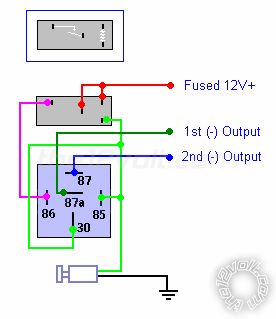

That diagram is not what you need, but if you use that latching relay, an SPDT relay would still be needed for what you're attempting to do with your hazard lights. I haven't seen one of these latching relays for sale in years, however I would check DigiKey.com to see if they have one. You may need to call them if you can't find one on their site.

the12volt • Support the12volt.com

Back to Top

dr1v3on3

Member - Posts: 6

Joined: November 30, 2017

Location: Oklahoma, United States

Posted: December 01, 2017 at 12:48 PM / IP Logged

Is there something else you would recommend doing other than that set up?

Back to Top

dr1v3on3

Member - Posts: 6

Joined: November 30, 2017

Location: Oklahoma, United States

Posted: December 01, 2017 at 12:50 PM / IP Logged

I bought this ELECTRONICS-SALON Panel Mount Momentary-Switch/Pulse-Signal Control Latching DPDT Relay Module,12V thinking maybe I could use it but I have not quite figured it out yet.

Back to Top
