Decipher Legend on Chinese Wiring Harness


Post ReplyPost New Topic
< Prev Topic Next Topic >
charlieworton
Member - Posts: 20
Member spacespace
Joined: June 09, 2013
Location: Alberta, Canada
Posted: May 16, 2018 at 5:17 AM / IP Logged Link to Post Post Reply Quote charlieworton

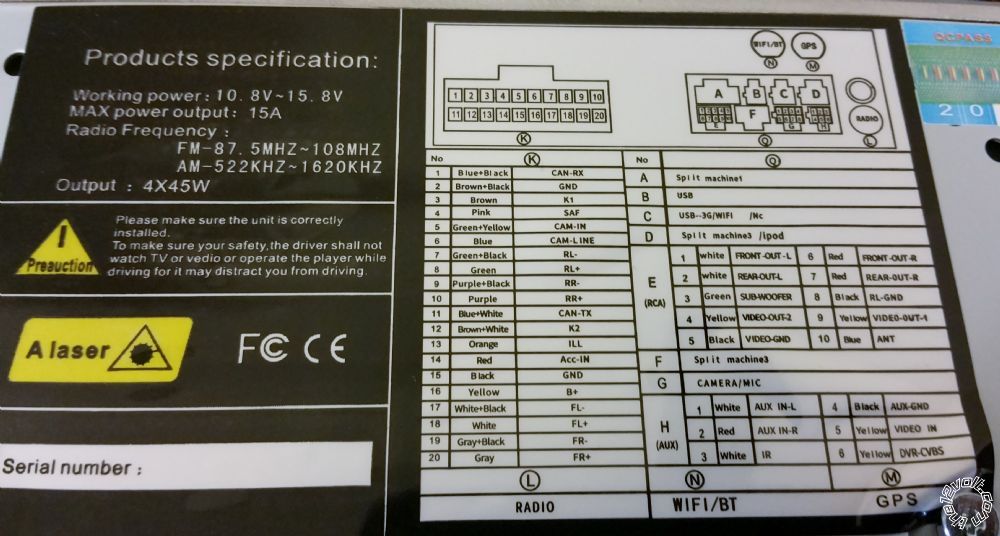

Hi, all - I'm trying to finalize my understanding of what the various wires on the Chinese wiring harness are intended to do. Here's a photo of the legend:
Decipher Legend on Chinese Wiring Harness -- posted image.
Most, I understand. The ones I'm unclear on are
3   K1
4   SAF
5   CAM-IN
6   CAM-LINE
12 K2
5 and 6 clearly relate to a video in signal, but I don't know what they're expecting.
And, in a vaguely related matter... I've currently got the deck set up on the bench, with nothing more than power, ground, antenna, and 1 speaker hooked up. When I play a DVD, I get the message 'for your safety video is disabled'. It seems to me I'm supposed to ground one of these lines to enable video, but I cannot recall which one. Suggestions?
Thanks - Charlie
Ween
Platinum - Posts: 1,365
Platinum spacespace
Joined: August 01, 2004
Location: Illinois, United States
Posted: May 16, 2018 at 6:20 PM / IP Logged Link to Post Post Reply Quote Ween
Guessing K1 & K2 might be for steering wheel controls. SAF maybe parking brake switch input...try grounding with DVD playing.
CAM-IN; reverse lights input to automatically activate camera. CAM-LINE, no idea.
charlieworton
Member - Posts: 20
Member spacespace
Joined: June 09, 2013
Location: Alberta, Canada
Posted: May 17, 2018 at 1:32 AM / IP Logged Link to Post Post Reply Quote charlieworton
Okay - I've got a bit more of it puzzled out.
#3 - K1 - refers to ignition key position 1.
#5 - CAM-IN - combines with ground #2 and terminates in a female RCA jack. So, clearly a video in signal of some sort. Probably a backup camera.
#12 - K2 - refers to ignition key position 2.
#4 - SAF - and # 6 - CAM-LINE - I have no clue in the universe.
Anyone? Anyone?
Bueller?
Sigh... >Charlie
lurch228
Silver - Posts: 1,338
Silver spacespace
Joined: August 08, 2012
Posted: May 21, 2018 at 10:42 PM / IP Logged Link to Post Post Reply Quote lurch228
#6 CAM-LINE _Based on wire color and Title should be the +12v input to switch camera on. As most remote turn ons are Blue. Also for reference in Electrical terminology LINE is the HOT wire common is ground.
charlieworton
Member - Posts: 20
Member spacespace
Joined: June 09, 2013
Location: Alberta, Canada
Posted: May 21, 2018 at 11:58 PM / IP Logged Link to Post Post Reply Quote charlieworton
Hey, Lurch228 - thank you! I had planned to pick up the 12 volts for the camera from the back up lights on the car; but at least I know what it's for. There would be no way for it to know what gear I'm in, so I'm guessing it would probably just be a constant 12 volts all the time. I'll check it with a meter. Thanks for that one!
>Charlie
