3 Way Switch Powered By Relay


Post ReplyPost New Topic
< Prev Topic Next Topic >
bri687
Member - Posts: 3
Member spacespace
Joined: November 06, 2018
Posted: November 08, 2018 at 6:40 PM / IP Logged Link to Post Post Reply Quote bri687
I have a dump trailer with a three way switch powering auxiliary lighting. But now I would also like to tap into my reverse lights on my truck to power a relay to power the aux lights. So is there a way to have a relay to power a three way switch for lights?
geepherder
Platinum - Posts: 3,668
Platinum spaceThis member consistently provides reliable informationspace
Joined: October 27, 2003
Posted: November 08, 2018 at 11:13 PM / IP Logged Link to Post Post Reply Quote geepherder
I'm assuming you're referring to a switch with three different positions (front aux lights, off, rear aux lights- or something like that). If you're only trying to power, say, the rear aux lights when the reverse lights come on, connect a wire from the reverse light output to one side of a relay coil (85 or 86) and ground the other side of the coil. Connect terminals 30 and 87 to the terminals on your switch that control the aux lights you want.
My ex once told me I have a perfect face for radio.
bri687
Member - Posts: 3
Member spacespace
Joined: November 06, 2018
Posted: November 08, 2018 at 11:22 PM / IP Logged Link to Post Post Reply Quote bri687
My three way switch is only a on-on two position switch that allows me to turn on the lights from either side of the trailer.
geepherder
Platinum - Posts: 3,668
Platinum spaceThis member consistently provides reliable informationspace
Joined: October 27, 2003
Posted: November 09, 2018 at 6:54 AM / IP Logged Link to Post Post Reply Quote geepherder
Yeah, three-way switch can mean different things, similar to lighting in a house, but with a twist. Okay, so if you turn one switch on, you have to turn the same switch off to turn off the lights then, right?
If that's the case, then you can just wire your relay as above across one switch or the other.
My ex once told me I have a perfect face for radio.
bri687
Member - Posts: 3
Member spacespace
Joined: November 06, 2018
Posted: November 09, 2018 at 4:57 PM / IP Logged Link to Post Post Reply Quote bri687
geepherder wrote:
Yeah, three-way switch can mean different things, similar to lighting in a house, but with a twist. Okay, so if you turn one switch on, you have to turn the same switch off to turn off the lights then, right?
If that's the case, then you can just wire your relay as above across one switch or the other.
In my three way setup right now i can turn the lights on and off at the right side then go to the left side and do the same thing. This is the switch i have installed--- Cole Hersee 5584 Silver SPDT On-on Toggle Switch
geepherder
Platinum - Posts: 3,668
Platinum spaceThis member consistently provides reliable informationspace
Joined: October 27, 2003
Posted: November 09, 2018 at 5:56 PM / IP Logged Link to Post Post Reply Quote geepherder
The above advice should work then.
My ex once told me I have a perfect face for radio.
lurch228
Silver - Posts: 1,338
Silver spacespace
Joined: August 08, 2012
Posted: November 09, 2018 at 11:03 PM / IP Logged Link to Post Post Reply Quote lurch228

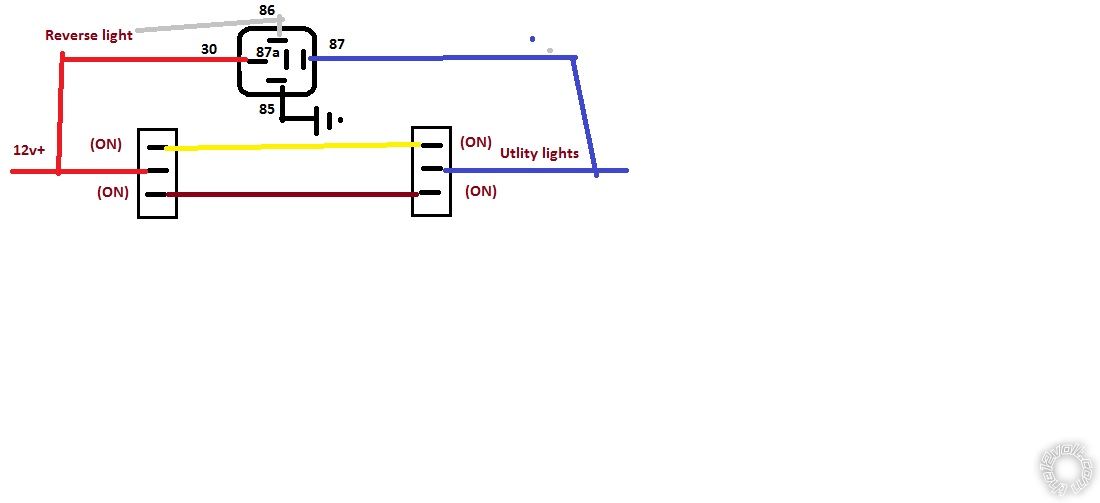

If what you are trying too do is power the lights when ever the reverse lights are on regardless of the 3-way switches position you will need to connect the relay output to the switch that is connected to the lights side of switch
3 Way Switch Powered By Relay -- posted image.
geepherder
Platinum - Posts: 3,668
Platinum spaceThis member consistently provides reliable informationspace
Joined: October 27, 2003
Posted: November 09, 2018 at 11:56 PM / IP Logged Link to Post Post Reply Quote geepherder
Ha, so I still misunderstood. It's exactly like three way switches in house lighting. Go with Lurch's advice.
My ex once told me I have a perfect face for radio.
