2014 Nissan Altima SV Radio 32 Pin Wiring


Post ReplyPost New Topic
< Prev Topic Next Topic >
andrew2506
Member - Posts: 2
Member spacespace
Joined: February 05, 2019
Location: Washington, United States
Posted: February 05, 2019 at 12:17 PM / IP Logged Link to Post Post Reply Quote andrew2506
Hi there
Im looking for 2014 nissan altima SV radio harness diagram. My radio has 8 pin, 16pin main and 32 pin comm connector. I figured 8 pin and 16 pin however stuck with 32pin connector. I would be grateful If anyone can help me with the wiring for this connector.
Im trying to swap radio on model S with SV (want to use aftermarket camera) I purchased a harness for an aftermarket camera which works fine BTW but still need to find wires for steering wheel
Thank you
motosaki
Member - Posts: 24
Member spacespace
Joined: January 23, 2019
Location: North Dakota, United States
Posted: February 06, 2019 at 3:20 PM / IP Logged Link to Post Post Reply Quote motosaki
Radio 12V     green     +     radio, white 20 pin plug, pin 19

Radio Ground     (chassis on base audio); gray (except base audio)     -     radio, white 20 pin plug, pin 20

Radio Ignition     pink     +     radio, white 20 pin plug, pin 7

Radio Illumination     red     +     radio, white 20 pin plug, pin 9

Factory Amp Turn-on     white     +     radio, white 20 pin plug, pin 1

Power Antenna     black     +     radio, gray 3 pin plug, pin 3

Left Front Speaker (+/-)     violet - lt. blue or black - white     +,-     radio, white 20 pin plug, pins 2 - 3

Right Front Speaker (+/-)     yellow - brown or black - white     +,-     radio, white 20 pin plug, pins 11 - 12

Left Rear Speaker (+/-)     brown - yellow or green - red     +,-     radio, white 20 pin plug, pins 4 - 5

Right Rear Speaker (+/-)     lt. green - violet or green - red     +,-     radio, white 20 pin plug, pins 13 - 14

Center Channel (+/-)     green - red     +,-     amplifier under rear deck, brown 14 pin plug, pins 11 - 12

Subwoofer (+/-)     white - green (L); white - green (R) (rear deck speakers with amp)     +,-     amplifier under rear deck, brown 14 pin plug, pins 6 - 1; 7 - 8

Aux. Audio Input Left (+/-)     red - black     +,-     radio, white 8 pin plug, pins 4 - 2 or white 24 pin plug, pins 3 - 2

Aux. Audio Input Right (+/-)     white - black     +,-     radio, white 8 pin plug, pins 3 - 2 or white 24 pin plug, pins 1 - 2

Rearview Camera Video     black - (shield)     +,-     radio, white 32 pin plug, pins 2 - 1 or white 24 pin plug, pins 21 - 22
The steering wheel controls are done thru data (CAN Lines, RX-TX, or IMMO) can't really help you there sorry.
15yrs. in the industry. everything from simple deck installs, to remote starters, and full custom audio systems. I've Installed it all.
andrew2506
Member - Posts: 2
Member spacespace
Joined: February 05, 2019
Location: Washington, United States
Posted: February 07, 2019 at 10:54 AM / IP Logged Link to Post Post Reply Quote andrew2506

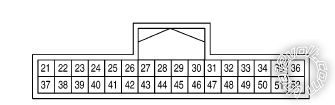

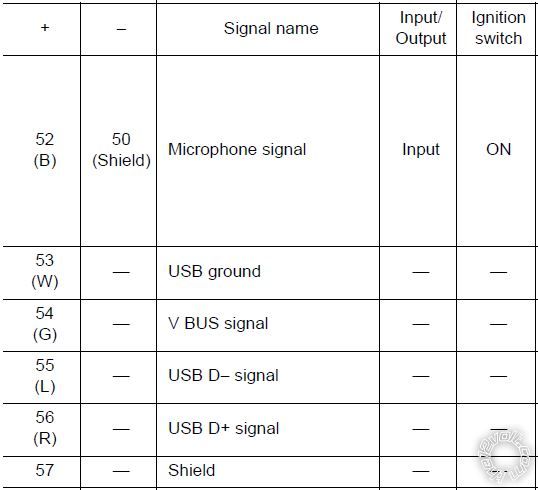

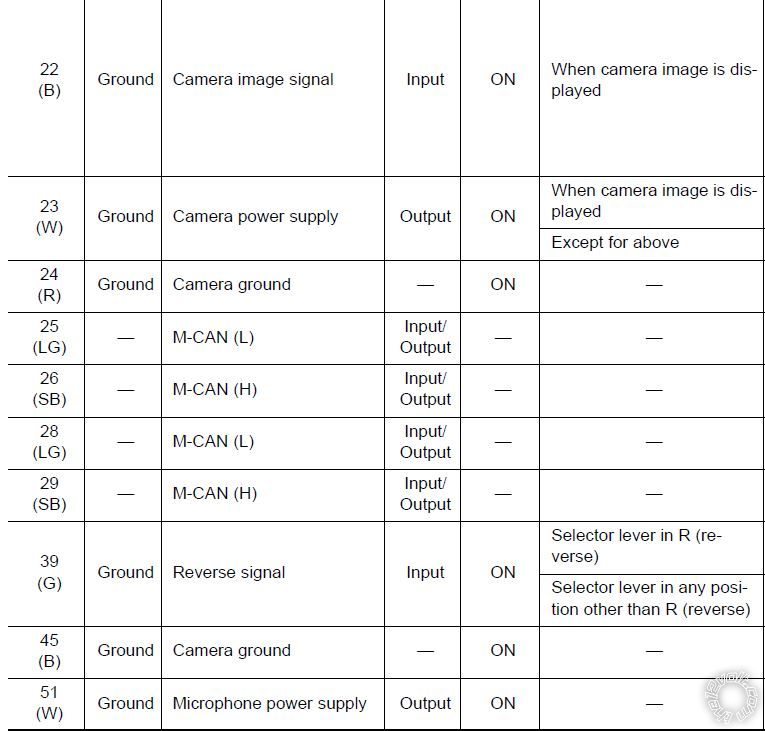

Thanks, I actually was able to get all wiring for 32pin connector and connect SV radio with screen to S model to have USB and backup camera. Here is pin out wiring:
2014 Nissan Altima SV Radio 32 Pin Wiring -- posted image.
2014 Nissan Altima SV Radio 32 Pin Wiring -- posted image.
2014 Nissan Altima SV Radio 32 Pin Wiring -- posted image.
dnn00180
Member - Posts: 1
Member spacespace
Joined: July 07, 2020
Location: North Carolina, United States
Posted: July 07, 2020 at 7:53 PM / IP Logged Link to Post Post Reply Quote dnn00180
Hi I'm would like to do the same thing I purchased a sv wire harness and have no idea on the steering wheel wires please help.
