Low Fuel Light Indicator


Post ReplyPost New Topic
< Prev Topic Next Topic >
charlescfp
Member - Posts: 2
Member spacespace
Joined: April 01, 2019
Location: Washington, United States
Posted: April 02, 2019 at 12:13 PM / IP Logged Link to Post Post Reply Quote charlescfp
I've installed a Fuel Gauge Interface Module that will allow me to use an OEM fuel sending unit with aftermarket gauges. The module has a circuit that will apply a ground to an LED to give you an indication of Low Fuel (i.e., "Low Fuel light. Grounded when 15% fuel remains, 20 milliamps max current". The module has a circuit to buffer the actual fuel level needle on the gauge to keep it steady, but not for the Low Fuel circuit. Once the fuel level gets down to approx. 3 gallons, the Low Fuel circuit activates, illuminating the light, but doesn't latch so the LED flashes as the fuel moves around in the unbaffled tank while driving. It will eventually stay on steady when the fuel gets low enough, but during the transition it flashes and is very annoying and distracting.
I am looking for a recommendation for a circuit (latching relay?) that, once activated, will latch keeping the LED steady until the ignition key is turned off. Currently the module provides a ground to the LED but I can wire the LED so that it is activated by either a ground or 12v. I assume the 20mA max Interface Module circuit (ground) is sufficient to activate a relay.
Appreciate any/all feedback. If the circuit drawing is already posted, pls point me to it.
Thank you
geepherder
Platinum - Posts: 3,668
Platinum spaceThis member consistently provides reliable informationspace
Joined: October 27, 2003
Posted: April 02, 2019 at 12:27 PM / IP Logged Link to Post Post Reply Quote geepherder
20 mA is not enough to trigger a standard relay. What you can do is wire a transistor to your 20 mA output and have the transistor trigger a relay.
My ex once told me I have a perfect face for radio.
charlescfp
Member - Posts: 2
Member spacespace
Joined: April 01, 2019
Location: Washington, United States
Posted: April 02, 2019 at 12:34 PM / IP Logged Link to Post Post Reply Quote charlescfp
Thanks... I didn't think to check until I was posting the question. I should have waited and done my research. I'll do that now.
geepherder
Platinum - Posts: 3,668
Platinum spaceThis member consistently provides reliable informationspace
Joined: October 27, 2003
Posted: April 02, 2019 at 3:23 PM / IP Logged Link to Post Post Reply Quote geepherder

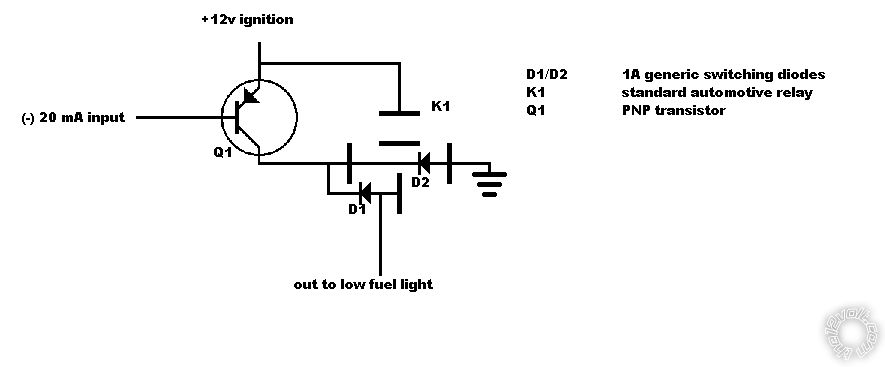

Low Fuel Light Indicator -- posted image.
My ex once told me I have a perfect face for radio.
eguru
Copper - Posts: 340
Copper spacespace
Joined: February 04, 2018
Location: Quebec, Canada
Posted: April 02, 2019 at 5:03 PM / IP Logged Link to Post Post Reply Quote eguru
24mA will drive a reed relay like the PRMA1A12 which has a 1000 ohm coil.
