I am installing a AVITAL 3100LX on a 2001 Dodge Ram that has an aftermarket central locking kit installed. It has a master lock motor on the Dr. side, and I need Neg. pulse to lock / unlock It looked to be easy...

(From the installation Guide):

Door Lock, 3-Pin Connector (H2)

1 GREEN (-) Lock, (+) unlock output

2 OPEN except if using 451M

3 BLUE (+) Lock, (-) unlock output

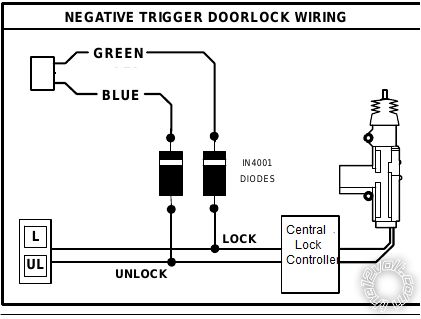

I thought a diode on each of the lock control wires (per attached image) should give neg. pulse to each wire... but I must be missing something because that didn't work.

Any suggestions?

i am an idiot

Platinum - Posts: 13,709

This member consistently provides reliable information

Joined: September 21, 2006

Location: Louisiana, United States

Posted: June 16, 2019 at 6:11 AM / IP Logged

Use a meter to verify it grounds when you press the switch to lock or unlock. If it does, eliminate the diodes.

catback

Silver - Posts: 703

Joined: August 13, 2002

Location: Canada

Posted: June 16, 2019 at 8:49 AM / IP Logged

Is that the actual layout of the central locking kit? A separated actuator, controller, switch setup? What aftermarket central locking kit is it?

rivraton

Member - Posts: 6

Joined: February 04, 2014

Location: California, United States

Posted: June 16, 2019 at 11:56 AM / IP Logged

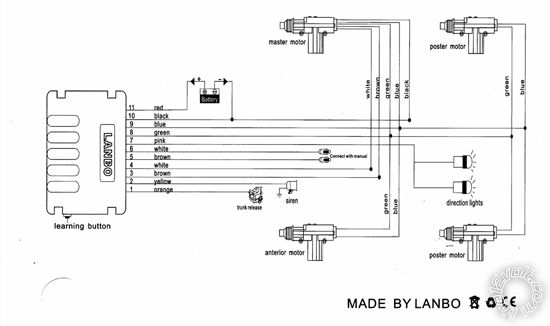

Unbranded but identical to Lanbo. Here is the full layout (I'm tying into the white and brown leads (5 &6)) Aftermarket Door Lock -- posted image.

catback

Silver - Posts: 703

Joined: August 13, 2002

Location: Canada

Posted: June 16, 2019 at 4:10 PM / IP Logged

Do pin 5 and 6 work as you expect? Ground 5 or 6 and the locks lock or unlock? If so and they don't work directly connected to the avital then a 451m or a pair of relays are going to be needed as the Avital output can only handle 500mA of current.

rivraton

Member - Posts: 6

Joined: February 04, 2014

Location: California, United States

Posted: June 16, 2019 at 4:29 PM / IP Logged

OK, thanks for the help... I'll order a module...

ETA: It looks like I'll have to use a set of relays, a 451m will give me Pos. pulses...

catback

Silver - Posts: 703

Joined: August 13, 2002

Location: Canada

Posted: June 16, 2019 at 7:03 PM / IP Logged

A 451m can be configured a variety of ways with pos or neg output

i am an idiot

Platinum - Posts: 13,709

Joined: September 21, 2006

Location: Louisiana, United States

Posted: June 17, 2019 at 9:13 AM / IP Logged

Pretty sure you do not need a module. It looks like that keyless entry module is designed to use in conjunction with your alarm.

rivraton

Member - Posts: 6

Joined: February 04, 2014

Location: California, United States

Posted: June 17, 2019 at 2:26 PM / IP Logged

It looks like it should...but it doesn't...

i am an idiot

Platinum - Posts: 13,709

Joined: September 21, 2006

Location: Louisiana, United States

Posted: June 17, 2019 at 5:42 PM / IP Logged

Without the diodes?
