2016 Kia w/Harman Kardon, Full Range Signal?


Post ReplyPost New Topic
< Prev Topic Next Topic >
audioneder
Member - Posts: 3
Member spacespace
Joined: July 05, 2020
Location: Alberta, Canada
Posted: July 05, 2020 at 10:45 AM / IP Logged Link to Post Post Reply Quote audioneder
Which 2 factory speakers can I tap into at the factory HK amp (in trunk) to get a full range signal to my Audiocontrol lc2i?
mgoetz74
Silver - Posts: 424
Silver spaceThis member consistently provides reliable informationspace
Joined: February 15, 2012
Location: United States
Posted: July 05, 2020 at 11:51 AM / IP Logged Link to Post Post Reply Quote mgoetz74
2016 kia...?... with hk amp
33 years as a installer now just a retired old guy. Favorite thing to install/topic are remote starts/car alarms. Stop using test lights!!!
i am an idiot
Platinum - Posts: 13,695
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: July 05, 2020 at 7:43 PM / IP Logged Link to Post Post Reply Quote i am an idiot
Chances are there is not a full range output on any channel of the amplifier. But just to make sure, as asked above, what model is the Kia?
audioneder
Member - Posts: 3
Member spacespace
Joined: July 05, 2020
Location: Alberta, Canada
Posted: July 05, 2020 at 8:05 PM / IP Logged Link to Post Post Reply Quote audioneder
It's a 2016 Optima SX Turbo. I beleive it shares this system with the SXL which has top tier options but an old man interior I couldn't get past😄
i am an idiot
Platinum - Posts: 13,695
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: July 05, 2020 at 8:40 PM / IP Logged Link to Post Post Reply Quote i am an idiot
There is not a full range channel on that vehicle. As far as I can see it is a Tri-amplified system.
mgoetz74
Silver - Posts: 424
Silver spaceThis member consistently provides reliable informationspace
Joined: February 15, 2012
Location: United States
Posted: July 06, 2020 at 3:06 PM / IP Logged Link to Post Post Reply Quote mgoetz74
should be able to do the rear door speakes.... LR door black- pin 26 and white+ pin 13     RR white- pin 25   brown+ pin 12. I wouldn't use fronts since those are mid range or the surround speaker
33 years as a installer now just a retired old guy. Favorite thing to install/topic are remote starts/car alarms. Stop using test lights!!!
i am an idiot
Platinum - Posts: 13,695
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: July 06, 2020 at 4:50 PM / IP Logged Link to Post Post Reply Quote i am an idiot
Radio 12V      Red or Red/Black      +      Radio, white 24 pin plug, pin 12
Radio Ground      Black      -      Radio, white 24 pin plug, pin 24
Radio Ignition      Blue      +      Radio, white 24 pin plug, pin 11 or 18
Radio Illumination      Red (parking lights); Brown (dimmer)      +,-      Radio, white 18 pin plug, pin 8 (parking lights); pin 17 (dimmer)
Factory Amp Turn-on      (M-CAN)
Power Antenna      Red/Orange      +      Radio, white 18 pin plug, pin 18
Left Front Speaker (+/-)      Red - Blue (woofer); Green - Orange (midrange)      +,-      Radio, white 18 pin plug, pins 2 - 11
Right Front Speaker (+/-)      Green - Orange (woofer); Green - Orange (midrange)      +,-      Radio, white 18 pin plug, pins 3 - 12
Left Rear Speaker (+/-)      White - Black      +,-      Radio, white 18 pin plug, pins 1 - 10
Right Rear Speaker (+/-)      Brown - White      +,-      Radio, white 18 pin plug, pins 4 - 13
Left Front Speaker - With Amp      Red - Blue (woofer); Green - Orange (midrange)      +,-      Amplifier in trunk right side, white 28 pin plug (B), pins 4 - 19 (woofer); white 28 pin plug (A), pins 13 - 26 (midrange)
Right Front Speaker - With Amp      Green - Orange (woofer); White - Brown (midrange)      +,-      Amplifier in trunk right side, white 28 pin plug (B), pins 3 - 18 (woofer); white 28 pin plug (A), pins 12 - 25 (midrange)
Left Rear Speaker - With Amp      White - Black (woofer); Red/Orange - White/Orange (midrange)      +,-      Amplifier in trunk right side, white 28 pin plug (B), pins 13 - 26 (woofer); pins 15 - 28 (midrange)
Right Rear Speaker - With Amp      Brown - White (woofer); Green - Orange (midrange)      +,-      Amplifier in trunk right side, white 28 pin plug (B), pins 12 - 25 (woofer); pins 14 - 27 (midrange)
Center Channel - With Amp      Yellow - Black      +,-      Amplifier in trunk right side, white 28 pin plug (A), pins 14 - 27
Subwoofer - With Amp      Blue - Red (coil 1); White - Brown (coil 2)      +,-      Amplifier in trunk right side, white 28 pin plug (B), pins 2 - 17 (coil 1); pins 1 - 16 (coil 2)
audioneder
Member - Posts: 3
Member spacespace
Joined: July 05, 2020
Location: Alberta, Canada
Posted: July 26, 2020 at 4:25 PM / IP Logged Link to Post Post Reply Quote audioneder

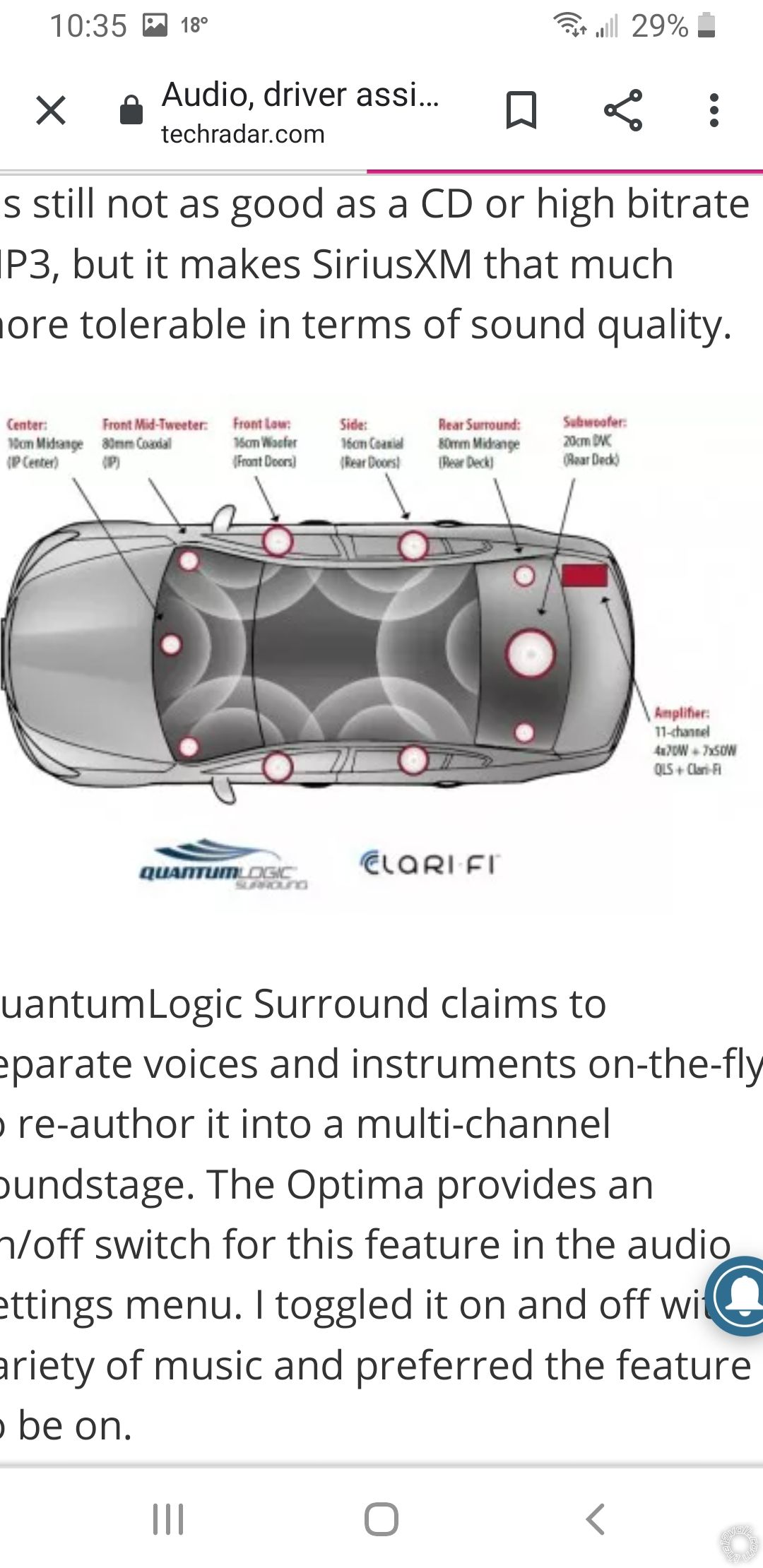

2016 Kia w/Harman Kardon, Full Range Signal? - Last Post -- posted image. I found a photo of the speaker descriptions, and am wondering if I can capture the whole bandwidth with a 4ch Dsp input, or if I need six channels of input?
