2008 Mitsubishi Lancer, Factory Radio Wiring


Post ReplyPost New Topic
< Prev Topic Next Topic >
karmalurkin38
Member - Posts: 2
Member spacespace
Joined: January 18, 2021
Location: Alabama, United States
Posted: January 18, 2021 at 10:13 PM / IP Logged Link to Post Post Reply Quote karmalurkin38
I'm looking to find out What the color code is of my factory radio in my 08 Mitsubishi Lancer The car come with no radio And the harness is cut
Karmalurkin38
i am an idiot
Platinum - Posts: 13,667
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: January 19, 2021 at 8:13 PM / IP Logged Link to Post Post Reply Quote i am an idiot
Radio 12V      red/white      +      radio, white 20 pin plug, pin 10
Radio Ground      black      -      radio, white 20 pin plug, pin 20
Radio Ignition      yellow      +      radio, white 20 pin plug, pin 1
Radio Illumination      green/white (dimmer)      +      radio, white 20 pin plug, pin 9
Factory Amp Turn-on      pink or blue      +      radio, white 18 pin plug, pin 17 or 7
Power Antenna      pink      +      radio, white 20 pin plug, pin 14
Left Front Speaker (+/-)      white/blue - black/yellow      +,-      radio, white 20 pin plug, pins 8 - 18           Notes
Right Front Speaker (+/-)      white/red - black/red      +,-      radio, white 20 pin plug, pins 6 - 16           Notes
Left Rear Speaker (+/-)      yellow/blue - gray/blue      +,-      radio, white 20 pin plug, pins 7 - 17           Notes
Right Rear Speaker (+/-)      yellow/red - gray/red      +,-      radio, white 20 pin plug, pins 5 - 15           Notes
Subwoofer (+/-)      green - yellow (1); blue - white (2)      +,-      amplifier under driver seat, white 18 pin plug, pins 1 - 9; 2 - 10
karmalurkin38
Member - Posts: 2
Member spacespace
Joined: January 18, 2021
Location: Alabama, United States
Posted: January 19, 2021 at 9:22 PM / IP Logged Link to Post Post Reply Quote karmalurkin38

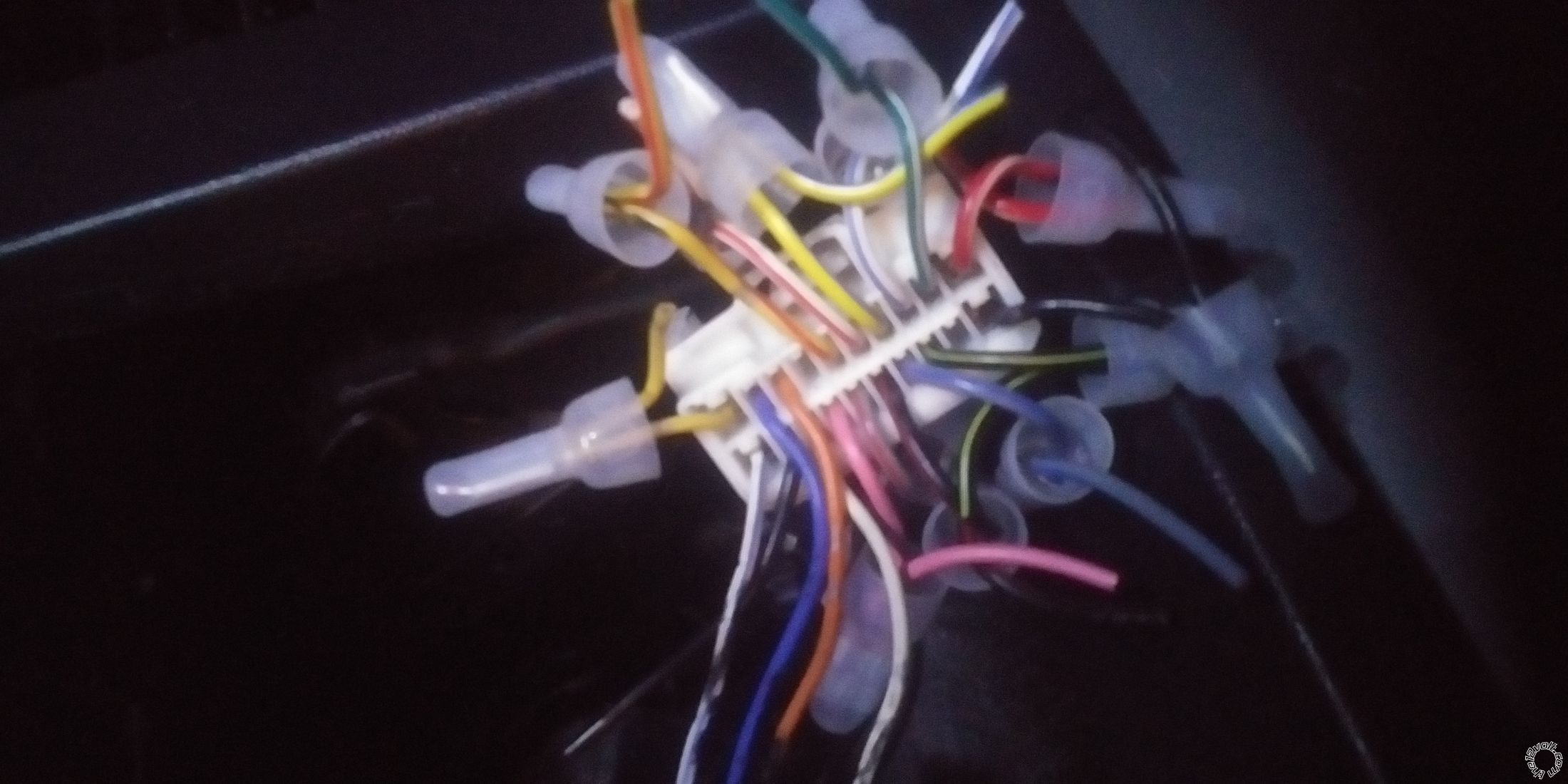

2008 Mitsubishi Lancer, Factory Radio Wiring -- posted image.
I have two blacks plus another one that isn't in the harness It's grounded inside where the radio goes To the right On a metal bracket
Karmalurkin38
geepherder
Platinum - Posts: 3,668
Platinum spaceThis member consistently provides reliable informationspace
Joined: October 27, 2003
Posted: January 20, 2021 at 2:40 AM / IP Logged Link to Post Post Reply Quote geepherder
If you have a multimeter (a cheap one will do), touch the negative meter lead to the outside of the accessory (cigarette lighter) output. Touch the positive lead to ypor black wire in question. Check for voltage (key on, key off, parking lights on, etc.). If no voltage present, check for continuity (low resistance) to ground.
Or just use your own ground.
This is some good reading if you haven't seen it yet:
https://www.the12volt.com/installbay/forum_posts.asp?tid=74637
My ex once told me I have a perfect face for radio.
