I currently have my Halo's to come on with dome lights, how can i also connect to a constant power to turn on using a toggle switch. When I tried it, it would also turn on the interior lights.
i am an idiot
Platinum - Posts: 13,693
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: May 08, 2021 at 7:21 PM / IP Logged Link to Post Post Reply Quote i am an idiot
ww421jr
Member - Posts: 5
Member spacespace
Joined: November 19, 2011
Location: Tennessee, United States
Posted: May 10, 2021 at 6:23 PM / IP Logged Link to Post Post Reply Quote ww421jr
More clarification please.
i am an idiot
Platinum - Posts: 13,693
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: May 10, 2021 at 6:33 PM / IP Logged Link to Post Post Reply Quote i am an idiot
I need a diagram of what you have now. What vehicle?
ww421jr
Member - Posts: 5
Member spacespace
Joined: November 19, 2011
Location: Tennessee, United States
Posted: May 10, 2021 at 8:43 PM / IP Logged Link to Post Post Reply Quote ww421jr
V.3 Fusion Color Change Halo -- posted image. 2007 Dodge Charger R/T
ww421jr
Member - Posts: 5
Member spacespace
Joined: November 19, 2011
Location: Tennessee, United States
Posted: May 10, 2021 at 8:54 PM / IP Logged Link to Post Post Reply Quote ww421jr

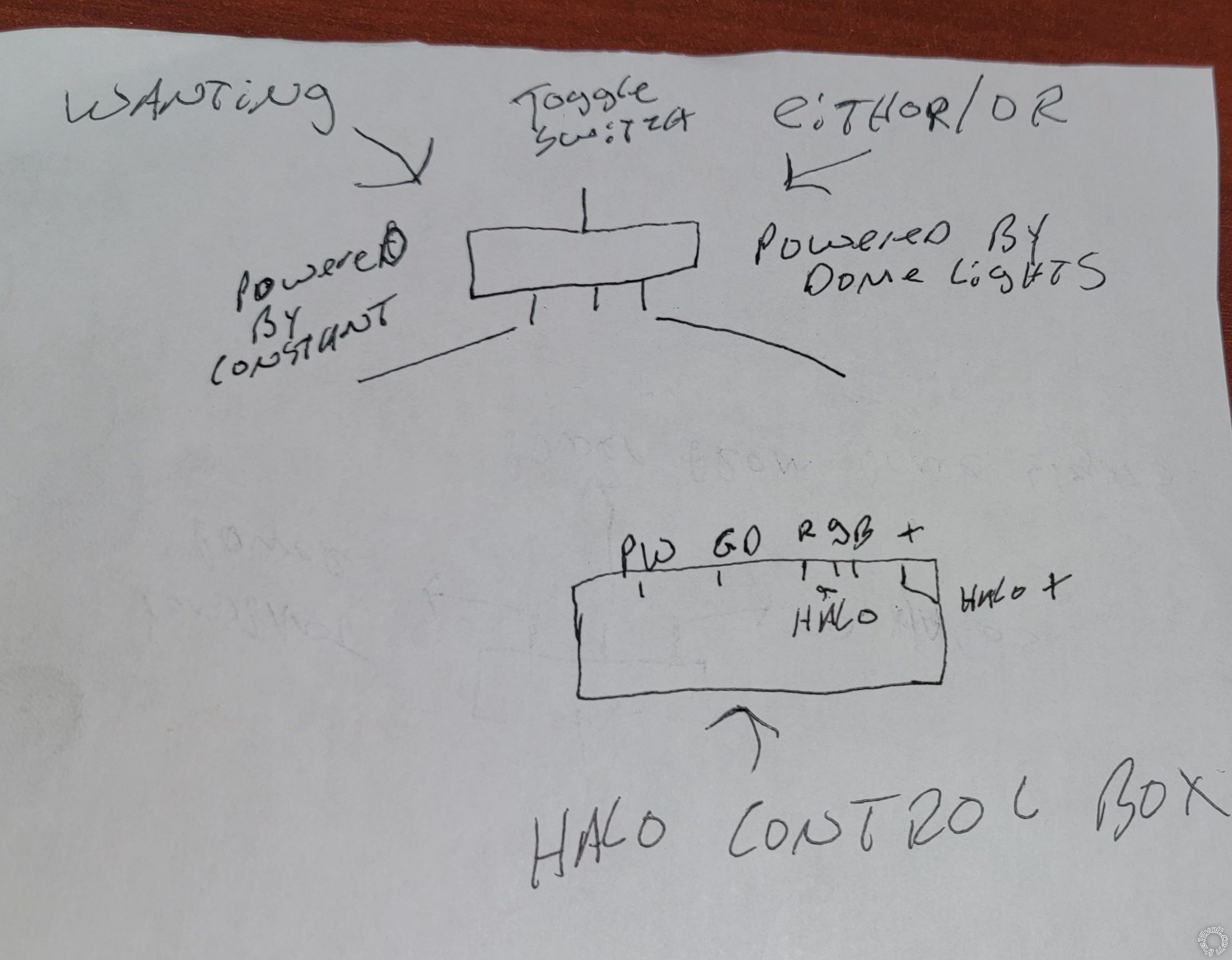

This is what I want to be able to do, does it make sense and can it be achieved using relays. sorry for the poor drawing.
V.3 Fusion Color Change Halo -- posted image.
i am an idiot
Platinum - Posts: 13,693
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: May 10, 2021 at 9:51 PM / IP Logged Link to Post Post Reply Quote i am an idiot

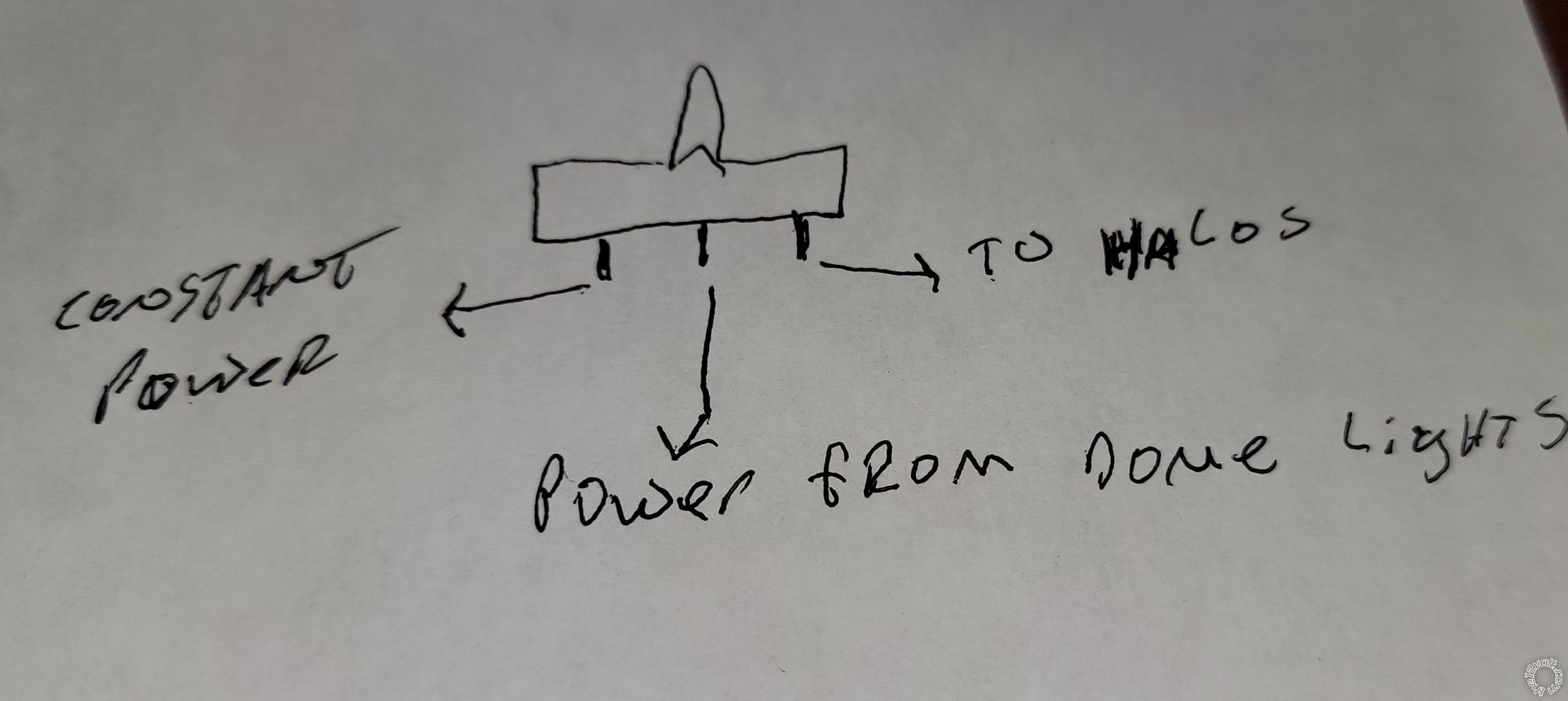

Middle pole to Halos.
Constant to terminal on one end.
Power from dome to the other terminal.
No diode needed.
If you use an On-Off-On type of switch you will be able to have the halos to come on with the domelight, or with the switch, and also turn them off.
i am an idiot
Platinum - Posts: 13,693
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: May 10, 2021 at 10:00 PM / IP Logged Link to Post Post Reply Quote i am an idiot
Your bottom picture is missing one line to make it work. From middle terminal of switch to the PW terminal of the halo controller.
You drew the 2 components in the perfect place. Just draw a line from middle terminal of the switch straight down to pw on control box.
ww421jr
Member - Posts: 5
Member spacespace
Joined: November 19, 2011
Location: Tennessee, United States
Posted: May 10, 2021 at 10:30 PM / IP Logged Link to Post Post Reply Quote ww421jr
Awesome, thanks for the help
