2015 Ram 1500, Master Switch Door Lock Issue


Post ReplyPost New Topic
< Prev Topic Next Topic >
alfwc55
Member - Posts: 7
Member spacespace
Joined: June 05, 2021
Location: British Columbia, Canada
Posted: June 06, 2021 at 8:58 AM / IP Logged Link to Post Post Reply Quote alfwc55
My driver door master switch will unlock my doors but not lock the doors. I have tried 2 switches and 2 modules with no success. Wires all have continuity. I need to find which wires or wire is the continuous power to the lock switch. Any help would be appreciated.
2015 ram 1500
alfwc55
i am an idiot
Platinum - Posts: 13,334
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: June 06, 2021 at 3:46 PM / IP Logged Link to Post Post Reply Quote i am an idiot
Will they lock from the passenger door switch? Did you buy a new switch panel or was it used? Those panels are sensitive to water. They get rained on and quit working.
Is there a violet wire with a light green stripe on it anywhere in the wires on that switch assembly?
Do you have a multimeter?
alfwc55
Member - Posts: 7
Member spacespace
Joined: June 05, 2021
Location: British Columbia, Canada
Posted: June 06, 2021 at 3:58 PM / IP Logged Link to Post Post Reply Quote alfwc55
The switch will unlock all doors but will not lock anything.....
alfwc55
i am an idiot
Platinum - Posts: 13,334
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: June 06, 2021 at 4:07 PM / IP Logged Link to Post Post Reply Quote i am an idiot
Can you lock the doors from the passenger door? Re-read my previous post. I edited it after you replied.
i am an idiot
Platinum - Posts: 13,334
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: June 06, 2021 at 6:07 PM / IP Logged Link to Post Post Reply Quote i am an idiot
Directechs tells you to catch the wire for lock and unlock in the passenger door. I am thinking the passenger door module may be the main one. You said you changed 2 modules, was one of them the passenger side?
alfwc55
Member - Posts: 7
Member spacespace
Joined: June 05, 2021
Location: British Columbia, Canada
Posted: June 07, 2021 at 8:47 AM / IP Logged Link to Post Post Reply Quote alfwc55
To answer your previous posts, I just purchased a new oem module for the drivers door and a new master switch for the same door. The passenger side switch will lock and unlock the doors but nothing has changed on the driver door, the master switch will only unlock the doors but will not lock the doors. I do have a multimeter, I am hoping that the wire you mentioned in your post is the power wire for the lock to the driver side lock switch..
Thank you for helping.
alfwc55
i am an idiot
Platinum - Posts: 13,334
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: June 07, 2021 at 3:19 PM / IP Logged Link to Post Post Reply Quote i am an idiot
The wire I mentioned is not the power wire. The door lock circuit is not what you are thinking. It is a multiplex system that uses that one wire to lock and unlock. Lock via 330 ohms to ground, and unlock via 100 ohms to ground.
If that wire is present, disconnect the battery(ies), tap into that wire and put your meter to ohms or 2000 ohm setting. One lead to that wire and ground the other lead. Press and hold unlock, does it read near 100? If so, we know that is the correct wire. Now press lock, does it read near 330?
If that wire is there, and you can get a 330 ohm 1/4 watt or higher wattage resistor, tap into that wire and ground it through the resistor. That should lock the doors.
alfwc55
Member - Posts: 7
Member spacespace
Joined: June 05, 2021
Location: British Columbia, Canada
Posted: June 09, 2021 at 5:52 PM / IP Logged Link to Post Post Reply Quote alfwc55
Again appreciate your posts. Have been to busy at work to check that wire yet plus my truck is in getting some engine work done to it so I'm hoping to get it back today...
alfwc55
alfwc55
Member - Posts: 7
Member spacespace
Joined: June 05, 2021
Location: British Columbia, Canada
Posted: June 11, 2021 at 9:27 AM / IP Logged Link to Post Post Reply Quote alfwc55

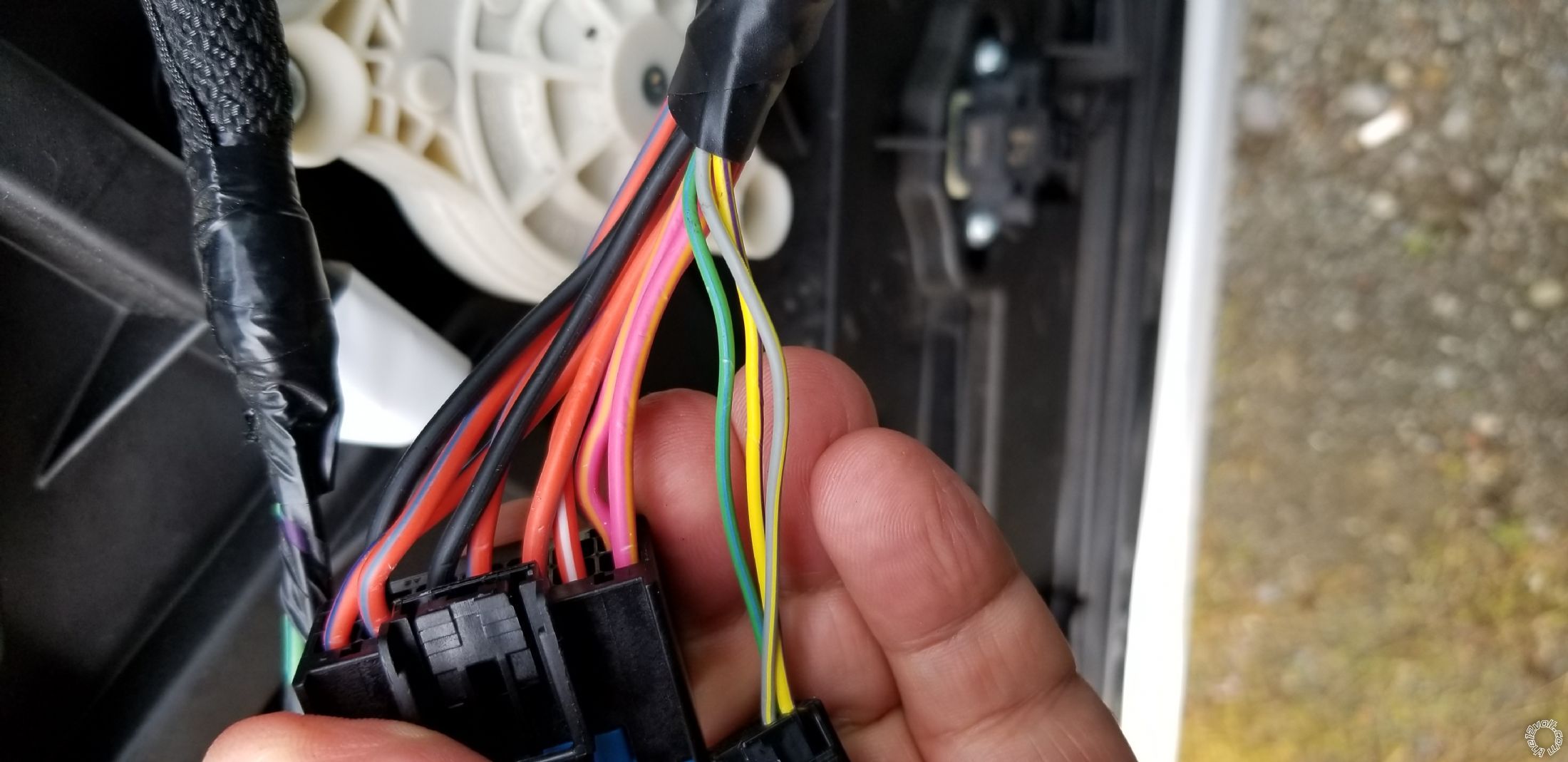

I could not find the wire you mentioned so I took a photo of the wires in the door that are similar to what you described. 2015 Ram 1500, Master Switch Door Lock Issue -- posted image.
alfwc55
alfwc55
Member - Posts: 7
Member spacespace
Joined: June 05, 2021
Location: British Columbia, Canada
Posted: June 11, 2021 at 9:34 AM / IP Logged Link to Post Post Reply Quote alfwc55

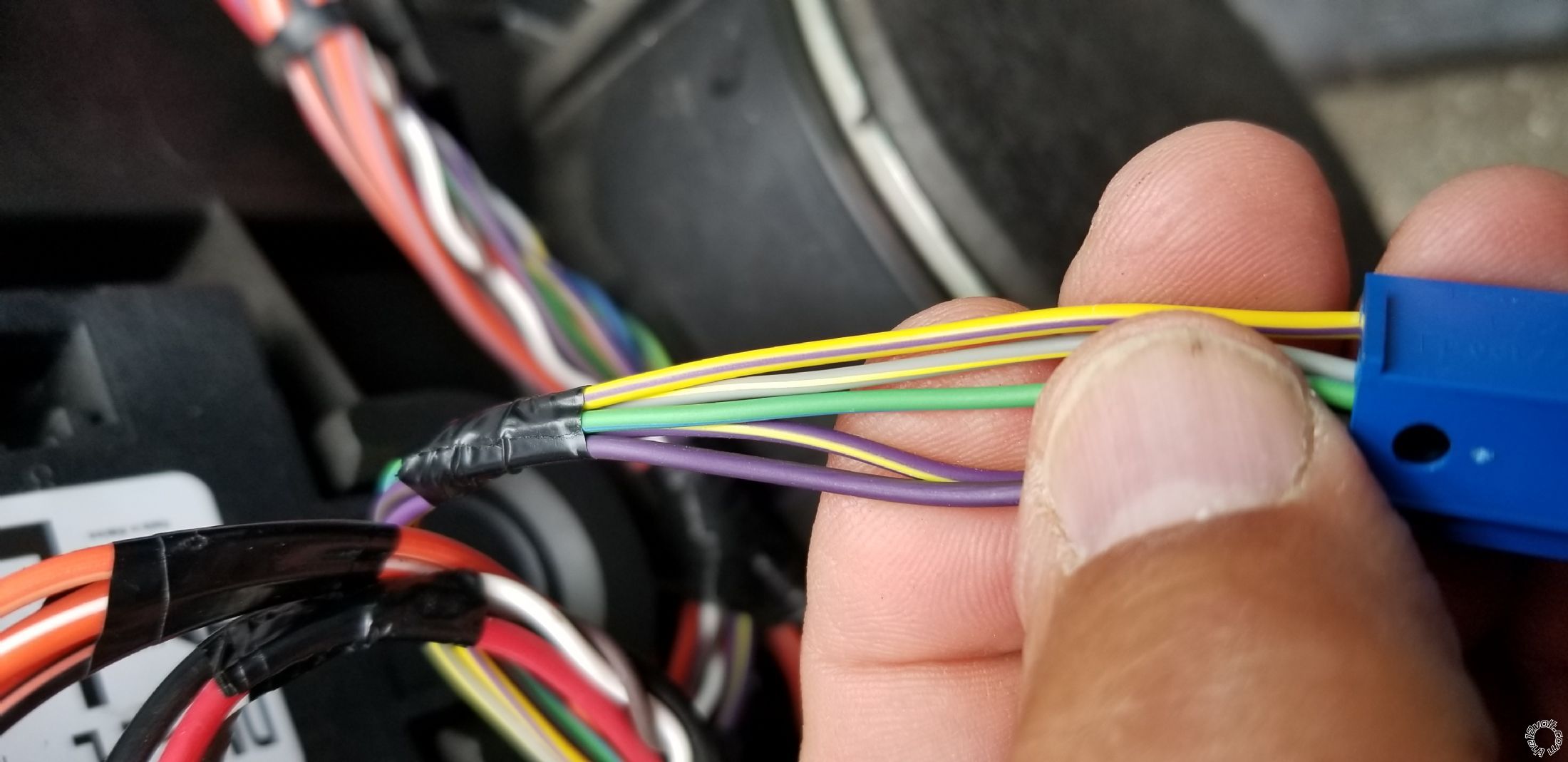

Attached is a photo of the wires going directly to the switch. 2015 Ram 1500, Master Switch Door Lock Issue -- posted image.
alfwc55
