2018 Toyota Yaris L, Keyless Entry Wiring


Post ReplyPost New Topic
< Prev Topic Next Topic >
signaltech
Member - Posts: 4
Member spacespace
Joined: June†02, 2021
Location: Virginia, United States
Posted: June†07, 2021 at 5:40 AM / IP Logged Link to Post Post Reply Quote signaltech
I am installing a Viper 412V (211hv) keyless system. I understand this is a negative trigger. On the ECU connector, what wires do I connect the Green/blk and Blue/blk to? Any help would be greatly appreciated. Thanks.
Thanks!
mgoetz74
Copper - Posts: 296
Copper spaceThis member consistently provides reliable informationspace
Joined: February†15, 2012
Location: United States
Posted: June†07, 2021 at 12:15 PM / IP Logged Link to Post Post Reply Quote mgoetz74
Power Lock     violet     -     Body ECU on dash fuse box, white 30 pin plug, pin 9
Power Unlock     beige     -     Body ECU on dash fuse box, white 30 pin plug, pin 10
31 years as a installer. Favorite thing to install/topic are remote starts/car alarms. Stop using test lights!!!
signaltech
Member - Posts: 4
Member spacespace
Joined: June†02, 2021
Location: Virginia, United States
Posted: June†07, 2021 at 1:26 PM / IP Logged Link to Post Post Reply Quote signaltech
Thanks for the reply. I have hooked the wires up those colors, however it does not actuate the locks. I seem to be missing something. I have the black, purple/purple violet hooked to ground.
The white/black, and brown/black are not connected. Still trying to understand what I didnít do correctly. Any additional help is very much appreciated. Thanks.
Thanks!
mgoetz74
Copper - Posts: 296
Copper spaceThis member consistently provides reliable informationspace
Joined: February†15, 2012
Location: United States
Posted: June†07, 2021 at 4:18 PM / IP Logged Link to Post Post Reply Quote mgoetz74
the white/black and brown/black are not used. the purple/black and the purple wires should be going to to ground
31 years as a installer. Favorite thing to install/topic are remote starts/car alarms. Stop using test lights!!!
signaltech
Member - Posts: 4
Member spacespace
Joined: June†02, 2021
Location: Virginia, United States
Posted: June†07, 2021 at 4:46 PM / IP Logged Link to Post Post Reply Quote signaltech

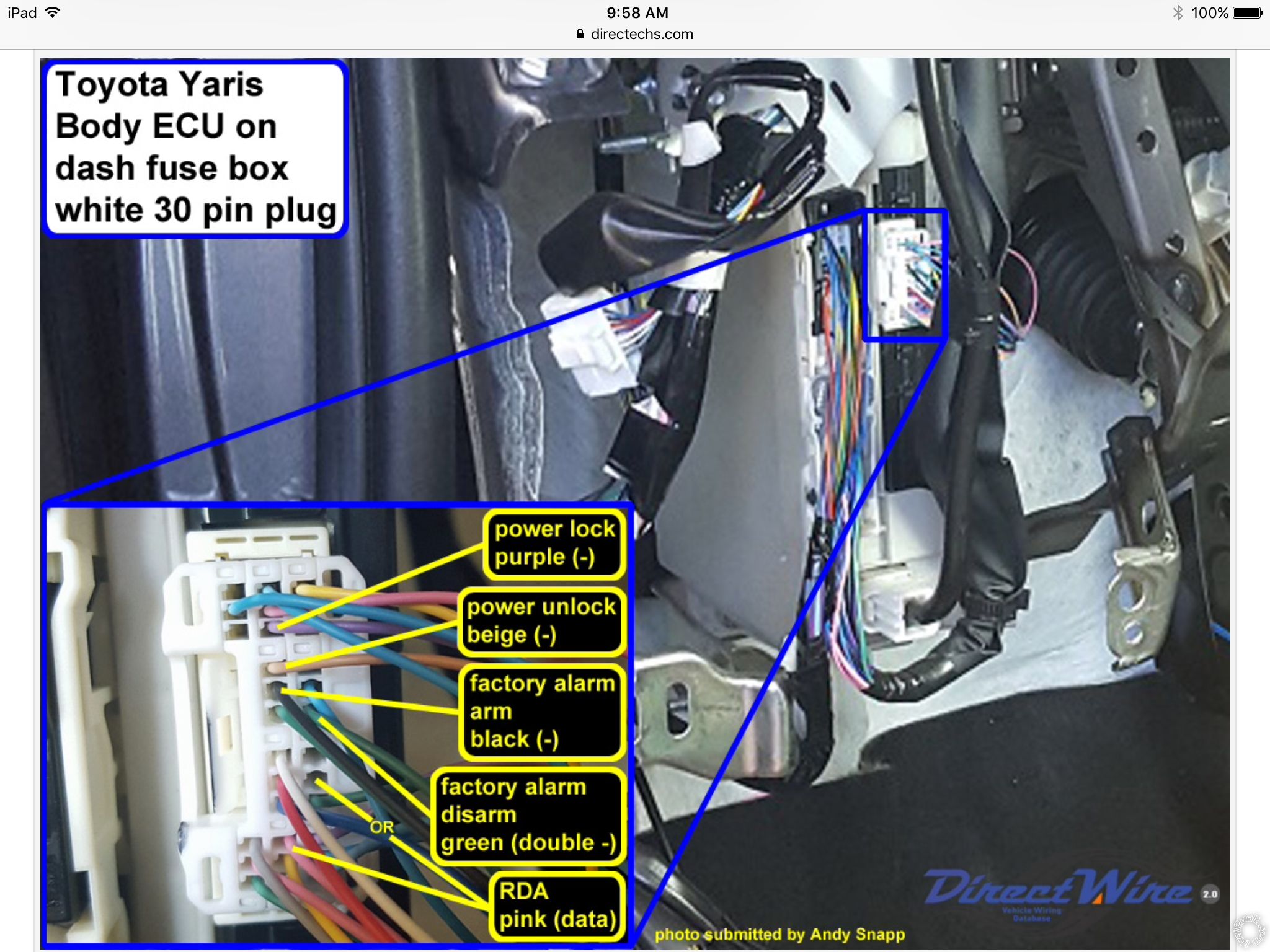

2018 Toyota Yaris L, Keyless Entry Wiring -- posted image.
Any information as to how to handle the factory alarm able and disable? Do they need to be connected as well? ECC white 30 pin plug, black and green wires.
It seems Iíve done everything correctly, but itís still not working. Many thanks mgoetz74!
Thanks!
signaltech
Member - Posts: 4
Member spacespace
Joined: June†02, 2021
Location: Virginia, United States
Posted: June†08, 2021 at 12:39 PM / IP Logged Link to Post Post Reply Quote signaltech
Itís now working. My connections using Automotive taps were both not making good contact. Problem resolved and I now have keyless entry. Thanks again mgoetz74
