Using Regular Relay for Convertible Top Motor


Post ReplyPost New Topic
< Prev Topic Next Topic >
2lowjojo
Member - Posts: 2
Member spacespace
Joined: May 26, 2017
Location: Mississippi, United States
Posted: October 08, 2021 at 7:01 AM / IP Logged Link to Post Post Reply Quote 2lowjojo

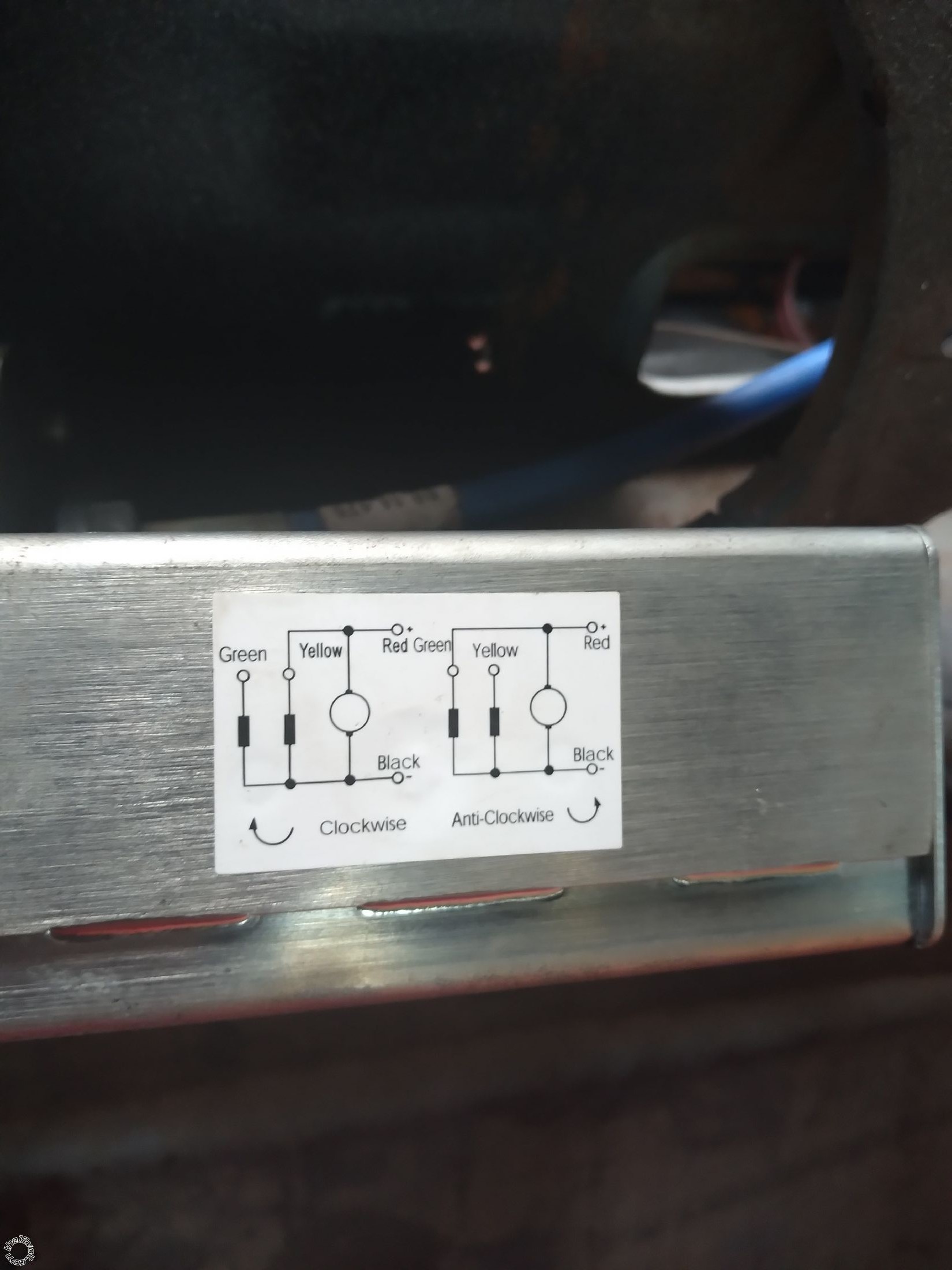

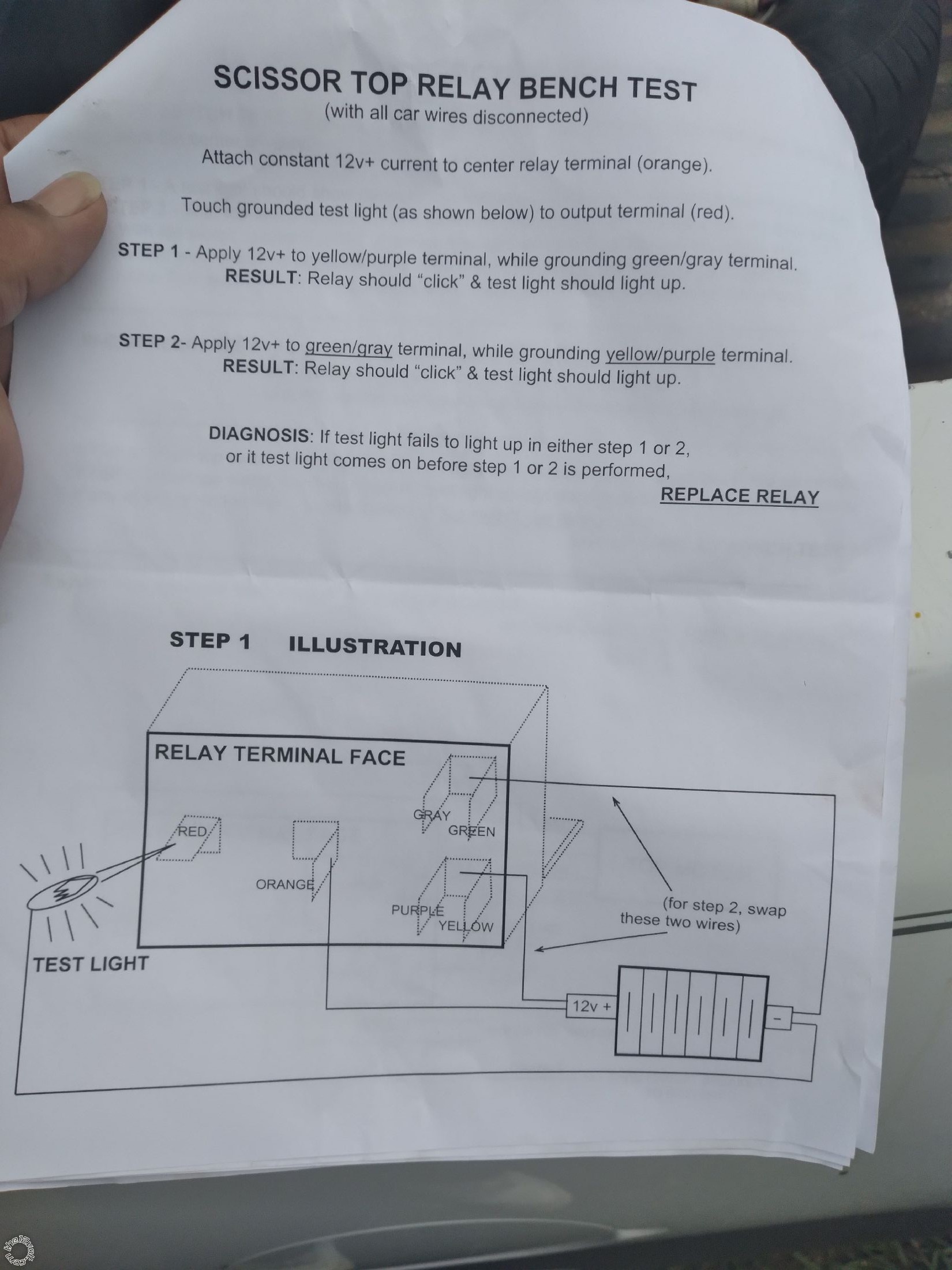

Anyone know how to wire this with relays Using Regular Relay for Convertible Top Motor -- posted image. Using Regular Relay for Convertible Top Motor -- posted image.
Joseph Brown
audiokid1
Copper - Posts: 85
Copper spacespace
Joined: March 17, 2003
Location: United States
Posted: October 08, 2021 at 8:26 PM / IP Logged Link to Post Post Reply Quote audiokid1
Unfortunately, you have been provided a set of terrible instructions. The fact that there is a test light in the diagram shows how dated this is.
I digress.....
This is a standard 5 wire setup.
When the "green" relay is active, 12V will be applied to the motor and the assembly will move "anti-clockwise"
When the "yellow" relay is active, 12V will be applied to the motor and the assembly will move "clockwise"
i am an idiot
Platinum - Posts: 13,441
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: October 09, 2021 at 6:56 PM / IP Logged Link to Post Post Reply Quote i am an idiot
2lowjojo
Member - Posts: 2
Member spacespace
Joined: May 26, 2017
Location: Mississippi, United States
Posted: October 09, 2021 at 7:18 PM / IP Logged Link to Post Post Reply Quote 2lowjojo
It has me confused the motor has 4 wires green,yellow,red and black. Car has a constant and two switch wires one gets hot on up and one gets hot on down.
Joseph Brown
audiokid1
Copper - Posts: 85
Copper spacespace
Joined: March 17, 2003
Location: United States
Posted: October 09, 2021 at 7:48 PM / IP Logged Link to Post Post Reply Quote audiokid1
Original Instructions
Test it this way first
Apply 12V to the motors red lead
Apply Ground to motors black lead
When 12V is applied to the motors green lead and ground is applied to the motors yellow lead the motor will move counter-clockwise
When 12V is applied to the motors yellow lead and ground is applied to the motors green lead the motor will move clockwise
You should be using a 5 wire relay setup for the green and yellow wire leads
Note: I cannot say if the motor will get wizzed if you apply 12V to the red wire at all times.....
