2021 Ram ProMaster City, Alarm Wiring


Post ReplyPost New Topic
< Prev Topic Next Topic >
kamikaze4299
Member - Posts: 16
Member spacespace
Joined: May 14, 2019
Location: Nevada, United States
Posted: January 12, 2022 at 5:25 PM / IP Logged Link to Post Post Reply Quote kamikaze4299
Does someone have the wiring color diagram for the Ram ProMaster City Van (Small Van)? I have to install a Security System in one for a Customer.
kamikaze4299
Member - Posts: 16
Member spacespace
Joined: May 14, 2019
Location: Nevada, United States
Posted: January 12, 2022 at 5:28 PM / IP Logged Link to Post Post Reply Quote kamikaze4299
Its a 2021 ProMaster City (Small Van)
i am an idiot
Platinum - Posts: 13,680
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: January 12, 2022 at 6:36 PM / IP Logged Link to Post Post Reply Quote i am an idiot
Item      Wire Color      Polarity      Wire Location      Photo      Note
12 Volts      Red/Green (20A)      +      Ignition Switch, black 3 pin plug, pin 2      Directwire
Second 12 Volts      Red/Black (60A)      +      BCM-Dash Fuse Box, 1 pin plug, pin 1
Ground      (chassis ground)
Starter      White/Red      +      Ignition Switch, black 3 pin plug, pin 3      Directwire
Ignition      Dk. Blue      +      Ignition Switch, black 2 pin plug, pin 2      Directwire
Second Ignition      Orange      +      Ignition Switch, black 3 pin plug, pin 1      Directwire
Accessory      Gray      +      Ignition Switch, black 2 pin plug, pin 1      Directwire
Key Release      Brown/Yellow      Cut      Key Lock Solenoid, white 2 pin plug, pin 2      Directwire
CAN Bus High      Green (CAN C)      Data      BCM-Dash Fuse Box, black 60 pin plug, pin 44
CAN Bus Low      Brown (CAN C)      Data      BCM-Dash Fuse Box, black 60 pin plug, pin 45
CAN Bus High 2      Dk. Blue (CAN B)      Data      BCM-Dash Fuse Box, black 60 pin plug, pin 58
CAN Bus Low 2      White (CAN B)      Data      BCM-Dash Fuse Box, black 60 pin plug, pin 57
Power Lock      Violet/Red (need to relay isolate from switch)      - 1000 Ohms      BCM-Dash Fuse Box, black 60 pin plug, pin 51      Directwire
Power Unlock      (same as power lock, front doors only); (for rear doors see trunk/hatch release)      -
Lock Motor      White/Black      Reverse      BCM-Dash Fuse Box, black 32 pin plug, pin 16
Driver Unlock Motor      Orange/Green      Reverse      BCM-Dash Fuse Box, black 32 pin plug, pin 31
Passenger Unlock Motor      (no progressive unlock)
Factory Alarm Arm      (factory remote only)
Factory Alarm Disarm      (transponder and ignition)
Parking Lights      Green/Yellow (LF); Green/White (RF); Yellow/Red (LR); Yellow/Black (RR)      +      BCM-Dash Fuse Box, black 60 pin plug, pins 29, 15; 60 pin plug, pins 6, 5      Directwire
Parking Lights -      Green/Black      -      Headlight-Wiper Switch, 10 pin plug, pin 3
Turn Signal (Left)      Dk. Blue/White (F); Dk. Blue/White (R)      +      BCM-Dash Fuse Box, black 60 pin plug, pin 10; 60 pin plug, pin 1      Directwire
Turn Signal (Right)      Dk. Blue/Black (F); Dk. Blue/Black (R)      +      BCM-Dash Fuse Box, black 60 pin plug, pin 8; 60 pin plug, pin 3      Directwire
Headlight      Green/White (high beams)      -      Headlight-Wiper Switch, 10 pin plug, pin 2
Reverse Light      Gray/Green      +      BCM-Dash Fuse Box, 60 pin plug, pin 44
Left Front Door Trigger      White/Violet      -      BCM-Dash Fuse Box, black 60 pin plug, pin 54      Directwire
Right Front Door Trigger      White/Red      -      BCM-Dash Fuse Box, black 60 pin plug, pin 53      Directwire
Left Rear Door Trigger      White/Violet      -      BCM-Dash Fuse Box, 60 pin plug, pin 40
Right Rear Door Trigger      White/Green      -      BCM-Dash Fuse Box, 60 pin plug, pin 56
Dome Light      Gray/Dk. Blue      -      BCM-Dash Fuse Box, 60 pin plug, pin 9
Trunk/Hatch Pin      White/Gray      -      BCM-Dash Fuse Box, 60 pin plug, pin 39
Trunk/Hatch Release      Violet/Dk. Blue (rear doors unlock)      -      BCM-Dash Fuse Box, black 60 pin plug, pin 24      Directwire
Trunk Release Motor      Orange/Dk. Blue (unlock only)      Reverse      BCM-Dash Fuse Box, black 32 pin plug, pin 30
Tachometer      Brown/Yellow, Brown/Dk. Blue, Brown/Blue, or Brown/Tan      ac      Any Fuel Injector, black 2 pin plug, pin 1
Fuel Pump      Violet/Green      +      Driver Kick, harness to rear
Rear Defroster      Brown/Dk. Blue      - Latched      BCM-Dash Fuse Box, black 60 pin plug, pin 6      Directwire
Mirror Defroster      (same as rear defroster)
Left Front Heated Seat      Gray      Reverse      Driver Seat Heater Switch, 4 pin plug, pin 4
Right Front Heated Seat      Gray      Reverse      Passenger Seat Heater Switch, 4 pin plug, pin 4
Speed Sense      (wheel speed sensor)
Brake Wire      Green/Black (functions with ignition on only)      +      BCM-Dash Fuse Box, black 60 pin plug, pin 34      Directwire
Parking Brake      White/Yellow      -      BCM-Dash Fuse Box, 60 pin plug, pin 19
Horn Trigger      Green/White      -      BCM-Dash Fuse Box, black 60 pin plug, pin 1      Directwire
Wipers      White (LO); White/Red (HI)      +      BCM-Dash Fuse Box, black 32 pin plug, pins 3, 14
Left Front Window (Up/Down)      (motor is part of module)
Right Front Window (Up/Down)      (motor is part of module)
Left Rear Window (Up/Down)      (motor is part of module)
Right Rear Window (Up/Down)      (motor is part of module)
Radio 12V      Red/Green      +      Radio, black 52 pin plug, pin 44
Radio Ground      Black      -      Radio, black 52 pin plug, pin 43
Let's Go Brandon Brown. Congratulations on your first Xfinity Series Win. LGBFJB
kamikaze4299
Member - Posts: 16
Member spacespace
Joined: May 14, 2019
Location: Nevada, United States
Posted: January 18, 2022 at 7:55 PM / IP Logged Link to Post Post Reply Quote kamikaze4299
Thank You!
audiokid1
Copper - Posts: 143
Copper spacespace
Joined: March 17, 2003
Location: United States
Posted: January 22, 2022 at 8:02 AM / IP Logged Link to Post Post Reply Quote audiokid1
Did you already complete this install? I have some specific details for this vehicle that I could email you.
kamikaze4299
Member - Posts: 16
Member spacespace
Joined: May 14, 2019
Location: Nevada, United States
Posted: January 29, 2022 at 12:36 PM / IP Logged Link to Post Post Reply Quote kamikaze4299
No I have not, but I am starting it today. Here is my email clintonecooper4299@gmail.com
audiokid1
Copper - Posts: 143
Copper spacespace
Joined: March 17, 2003
Location: United States
Posted: January 30, 2022 at 10:28 AM / IP Logged Link to Post Post Reply Quote audiokid1
I sent you an email with a few details. I hope it helps
i am an idiot
Platinum - Posts: 13,680
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: January 30, 2022 at 2:31 PM / IP Logged Link to Post Post Reply Quote i am an idiot
Can you post those details here as well? It may help someone else in the future.
Let's Go Brandon Brown. Congratulations on your first Xfinity Series Win. LGBFJB
audiokid1
Copper - Posts: 143
Copper spacespace
Joined: March 17, 2003
Location: United States
Posted: January 30, 2022 at 5:40 PM / IP Logged Link to Post Post Reply Quote audiokid1

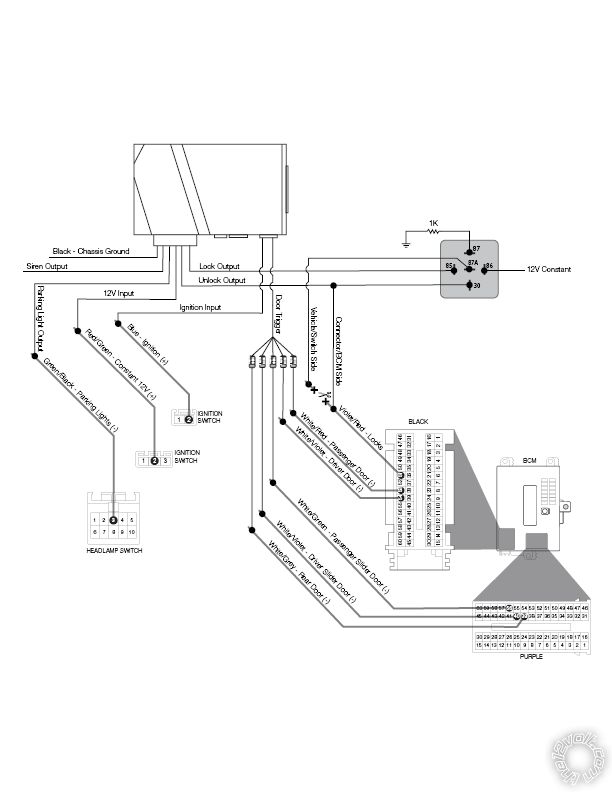

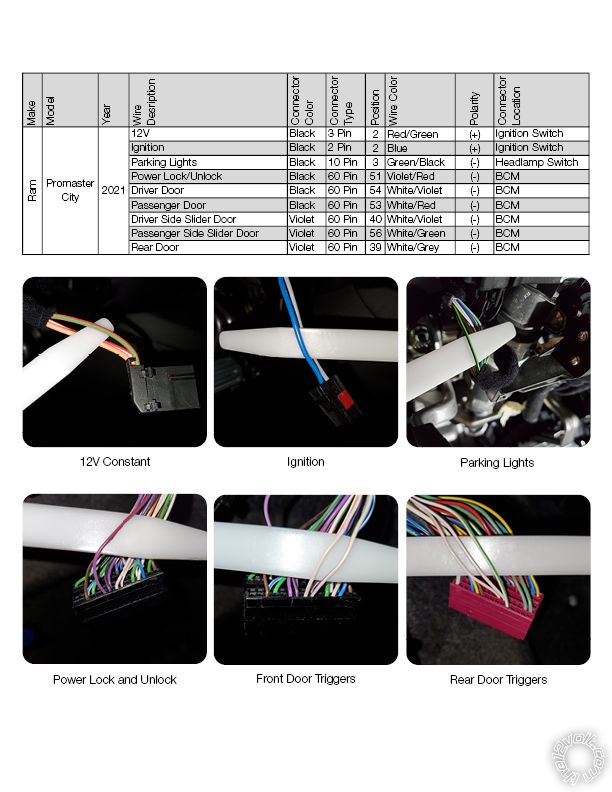

Please see attached photos
2021 Ram ProMaster City, Alarm Wiring -- posted image.
