Blade AL 20 Pin Harness

Home / the12volt's Install Bay / Car Security and Convenience / Blade AL 20 Pin Harness

Welcome Guest :)

Members

Search

Register

Login

< Prev Topic Next Topic >

20pin

Member - Posts: 2

Joined: January 16, 2022

Location: Ontario, Canada

Posted: January 17, 2022 at 12:22 PM / IP Logged

Thought I had everything ready to attempt my first install but ran into an issue. I purchased a new Blade AL to insert into an old but never used Compustar CM-5200. The problem I’m having is that the 5200’s 20 pin won’t accept the Blade 20 pin harness. Am I missing something? Is there maybe a new and old style connector? If so, are the old ones still available anywhere?

Thanks in advance

Back to Top

kreg357

Platinum - Posts: 7,783

This member has made a donation to the12volt.com. Click here for more info.

This member has been recognized as an authority in Electrical Theory. Click here for more info.

This member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.

Joined: January 30, 2009

Location: Pennsylvania, United States

Posted: January 17, 2022 at 1:23 PM / IP Logged

You are correct, there was an older style harness. The original harness didn't have a latch to keep it securely plugged in so they made the change. The wire colors and pin out is the same between them.

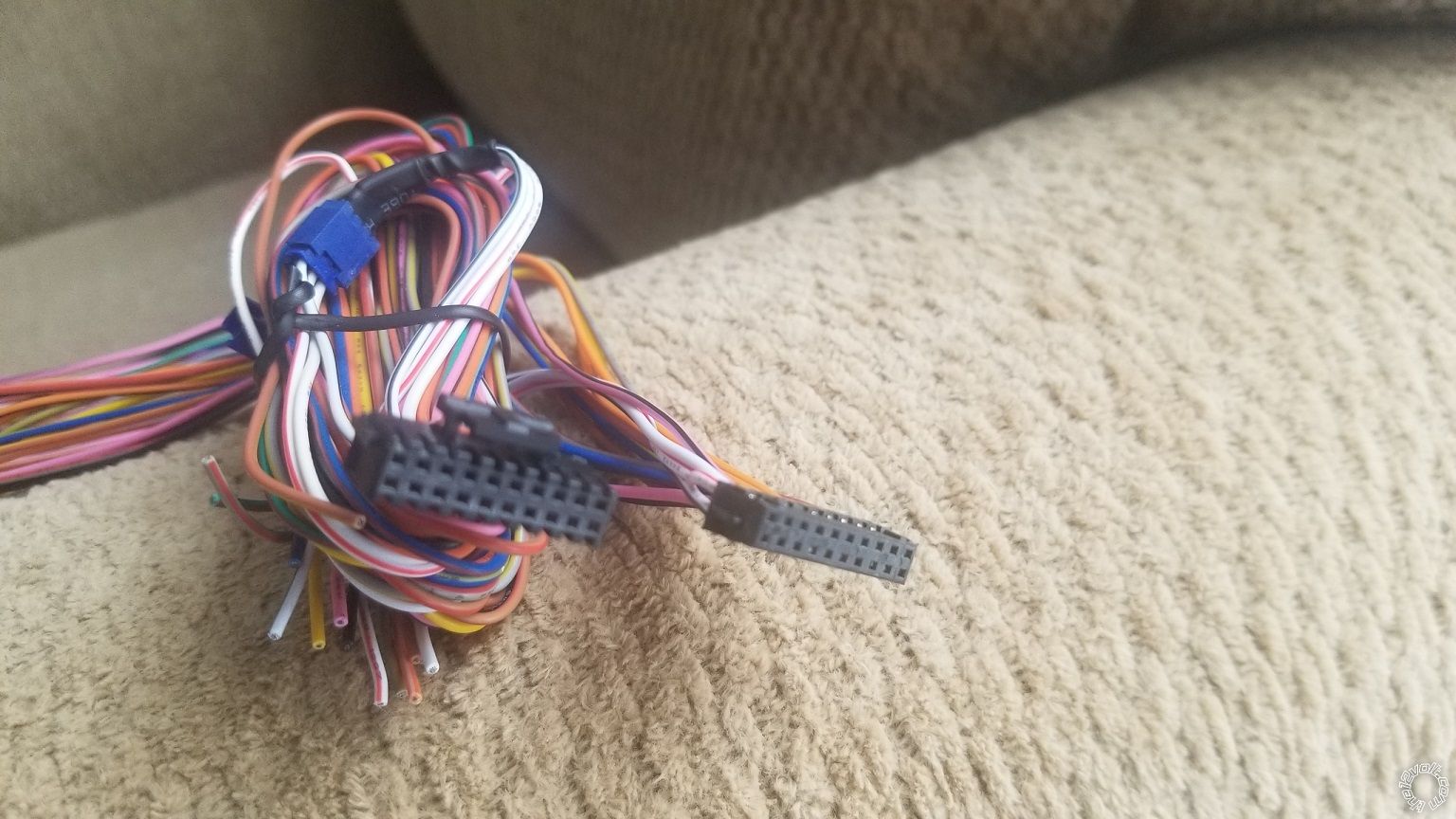

Here is a photo of the two types :

Blade AL 20 Pin Harness -- posted image.

I use a tie wrap to secure the harness in newer controllers. I've never tried it the other way, new cable in old controller.

I'll swap my old style one for your new style harness if you want. Just PM me with address, etc.

Soldering is fun!

Back to Top

20pin

Member - Posts: 2

Joined: January 16, 2022

Location: Ontario, Canada

Posted: January 17, 2022 at 2:15 PM / IP Logged

Your response is much appreciated. I couldn’t find any information regarding the two different connectors. And I guess I can stop loosing my mind trying to fit them together hahaha.

I’ll send you a PM later on.

Thank you very much!

Back to Top
