2015 Ford F-150, Alarm Wiring Diagram


Post ReplyPost New Topic
< Prev Topic Next Topic >
ghades
Member - Posts: 9
Member spacespace
Joined: August 19, 2022
Location: Texas, United States
Posted: September 28, 2022 at 1:22 PM / IP Logged Link to Post Post Reply Quote ghades
Does anyone have the wiring diagram for an alarm install on a 2015 Ford 150?
...
i am an idiot
Platinum - Posts: 13,597
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: September 28, 2022 at 7:53 PM / IP Logged Link to Post Post Reply Quote i am an idiot
Smart Key, Regular Key or Work Truck?
Let's Go Brandon Brown. Congratulations on your first Xfinity Series Win. LGBFJB
ghades
Member - Posts: 9
Member spacespace
Joined: August 19, 2022
Location: Texas, United States
Posted: September 28, 2022 at 8:44 PM / IP Logged Link to Post Post Reply Quote ghades
regular key 2015 ford f150 xlt 5.0
...
i am an idiot
Platinum - Posts: 13,597
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: September 28, 2022 at 10:30 PM / IP Logged Link to Post Post Reply Quote i am an idiot
Item      Wire Color      Polarity      Wire Location
12 Volts      green/red (50A)      +      BCM in passenger kick, 22 pin plug (G), pin 22
Ground      (chassis ground)
Starter      blue/white      +      ignition switch, black 7 pin plug, pin 7
Ignition      white/orange      +      ignition switch, black 7 pin plug, pin 1
Accessory      violet/green      +      ignition switch, black 7 pin plug, pin 6
Keysense      blue/gray      +      ignition switch, black 7 pin plug, pin 5
CAN Bus High      white/blue (HS CAN)      data      Gateway Module on data link connector, black 24 pin plug, pin 20
CAN Bus Low      white (HS CAN)      data      Gateway Module on data link connector, black 24 pin plug, pin 19
CAN Bus High 2      gray/orange (MS CAN)      data      Gateway Module on data link connector, black 24 pin plug, pin 23
CAN Bus Low 2      violet/orange (MS CAN)      data      Gateway Module on data link connector, black 24 pin plug, pin 22
CAN Bus High 3      green/orange (HS2 CAN)      data      Gateway Module on data link connector, black 24 pin plug, pin 18
CAN Bus Low 3      gray/blue (HS2 CAN)      data      Gateway Module on data link connector, black 24 pin plug, pin 17
IMMO Data      blue/white (LIN bus)      data      PATS Transceiver on ignition switch, black 4 pin plug, pin 3
Power Lock      gray/yellow      -      door lock switch in driver door, black 4 pin plug, pin 1 or black 8 pin plug, pin 7
Power Unlock      violet/gray      -      door lock switch in driver door, black 4 pin plug, pin 3 or black 8 pin plug, pin 8
Lock Motor      gray/brown      5 wire      driver kick or BCM in passenger kick, 36 pin plug (C), pin 35
Driver Unlock Motor      blue/green      5 wire      driver kick or BCM in passenger kick, 36 pin plug (C), pin 27
Passenger Unlock Motor      brown/green      5 wire      BCM in passenger kick, 36 pin plug (C), pin 32
Factory Alarm Arm      (arms on lock)
Factory Alarm Disarm      (see disarm no unlock)
Disarm No Unlock      (transponder and ignition)
Parking Lights      blue/gray (F); blue/gray (R)      +      BCM in passenger kick, 22 pin plug (G), pin 3; 36 pin plug (C), pin 12
Parking Lights -      gray      -      headlight switch, black 16 pin plug, pin 11
Note - Parking Lights -: See Tech Doc 1096
Parking Lights Interrupt      black/violet      cut      headlight switch, black 16 pin plug, pin 4
Note - Parking Lights Interrupt: See Tech Doc 1096
Hazards      brown      -      hazard switch or BCM in passenger kick, black 52 pin plug (B), pin 19
Turn Signal (Left)      blue/green (F); gray/orange (R)      +      BCM in passenger kick, 40 pin plug (F), pin 39; 52 pin plug (E), pin 26
Turn Signal (Right)      yellow/violet (F); green/orange (R)      +      BCM in passenger kick, 40 pin plug (F), pin 38; 52 pin plug (E), pin 52
Headlight      blue      -      headlight switch, black 16 pin plug, pin 12
AutoLights      violet      cut      headlight switch, black 16 pin plug, pin 13
Reverse Light      green/brown      +      driver kick or BCM in passenger kick, 36 pin plug (C), pin 11
Left Front Door Trigger      brown      - N.C.      driver kick, harness to rear or BCM in passenger kick, 52 pin plug (E), pin 33
Right Front Door Trigger      white      - N.C.      BCM in passenger kick, 52 pin plug (E), pin 21
Left Rear Door Trigger      green      - N.C.      BCM in passenger kick, 52 pin plug (E), pin 46
Right Rear Door Trigger      yellow      - N.C.      BCM in passenger kick, 52 pin plug (E), pin 19
Dome Light      gray/violet      +      BCM in passenger kick, 36 pin plug (C), pin 13
Trunk/Hatch Pin      brown/yellow or yellow/orange (tailgate ajar)      -      driver kick or BCM in passenger kick, 52 pin plug (E), pin 34
Hood Pin      blue/orange      - N.C.      BCM in passenger kick, 40 pin plug (F), pin 14
Trunk/Hatch Release      brown/yellow (tailgate release) (rear handle switch)      -      driver kick or BCM in passenger kick, 52 pin plug (E), pin 14
Trunk Release Motor      green/white (tailgate release motor)      5 wire      driver kick or BCM in passenger kick, 36 pin plug (C), pin 33
Tachometer      green/blue (fuel injector 1)      ac      PCM on passenger firewall, 95 pin plug, pin 84 (EcoBoost) or 1 (Ti-VCT)
Fuel Pump      yellow/violet      -      BCM in passenger kick, 40 pin plug (F), pin 26
Rear Defroster      brown      - latched      climate control switch, 26 pin plug, pin 7
Mirror Defroster      (same as rear defroster)
Left Front Heated Seat      (MS CAN)
Right Front Heated Seat      (MS CAN)
Speed Sense      yellow/orange      ac      PCM on passenger firewall, 95 pin plug, pin 12 (EcoBoost) or 26 (Ti-VCT)
Brake Wire      violet/white      +      brake switch or BCM in passenger kick, 22 pin plug (A), pin 1
Parking Brake      white/violet (without electric parking brake only)      -      parking brake switch or BCM in passenger kick, 52 pin plug (E), pin 47
Horn Trigger      green/white or lt. green/white      -      horn switch or BCM in passenger kick, black 52 pin plug (B), pin 18
Wipers      (LIN bus)
Left Front Window (Up/Down)      green - blue      A      Driver Door Module in door, 24 pin plug, pins 13 - 14
Right Front Window (Up/Down)      gray/yellow - green/white      A      Passenger Door Module in door, 24 pin plug, pins 13 - 14
Left Rear Window (Up/Down)      green/violet - brown      A      left rear window switch in door, 8 pin plug, pins 6 - 7
Right Rear Window (Up/Down)      white/violet - gray      A      right rear window switch in door, 8 pin plug, pins 6 - 7
Rear Sliding Window Open-Close      yellow - violet      +      window switch in roof, 6 pin plug, pins 3 - 2 or passenger kick, harness to rear
Sun Roof (Open/Close)      violet/brown - yellow/orange (function with ignition on only)      -      overhead console, 24 pin plug, pins 18 - 20
Memory Seat 1      violet/white      -      memory set switch in driver door, black 8 pin plug, pin 5
Memory Seat 2      yellow      -      memory set switch in driver door, black 8 pin plug, pin 4
Memory Seat 3      blue/orange      -      memory set switch in driver door, black 8 pin plug, pin 3
Let's Go Brandon Brown. Congratulations on your first Xfinity Series Win. LGBFJB
audiokid1
Copper - Posts: 120
Copper spacespace
Joined: March 17, 2003
Location: United States
Posted: October 01, 2022 at 7:42 AM / IP Logged Link to Post Post Reply Quote audiokid1
What system do you plan to install? You can run a CAN module with DL-FM8 firmware and bypass connecting MS CAN wires for programming.
Everything you'll need is available at the gateway and the headlamp switch.
ghades
Member - Posts: 9
Member spacespace
Joined: August 19, 2022
Location: Texas, United States
Posted: October 01, 2022 at 9:46 AM / IP Logged Link to Post Post Reply Quote ghades
sound good is there a guide for this ?
...
ghades
Member - Posts: 9
Member spacespace
Joined: August 19, 2022
Location: Texas, United States
Posted: October 06, 2022 at 11:05 AM / IP Logged Link to Post Post Reply Quote ghades
@i am an idiot
can you advice what can i use a trigger? from the info you provided thank you to install a shock sensor
...
ghades
Member - Posts: 9
Member spacespace
Joined: August 19, 2022
Location: Texas, United States
Posted: October 12, 2022 at 10:50 AM / IP Logged Link to Post Post Reply Quote ghades
i installed directed shock sensor and relay on 2015 ford f150 oem alarm its already install and working "but i don't know when should i install the resistor? im using has a trigger "Left Rear Door Trigger
...
i am an idiot
Platinum - Posts: 13,597
Platinum spaceThis member consistently provides reliable informationspace
Joined: September 21, 2006
Location: Louisiana, United States
Posted: October 12, 2022 at 7:39 PM / IP Logged Link to Post Post Reply Quote i am an idiot
If you are trying to add a shock sensor to the ford alarm system, I would suggest using an alarm system that will use your OEM keyfobs. Audiovox makes one that works great. I have one at the shop and will post a model number tomorrow.
Let's Go Brandon Brown. Congratulations on your first Xfinity Series Win. LGBFJB
audiokid1
Copper - Posts: 120
Copper spacespace
Joined: March 17, 2003
Location: United States
Posted: October 12, 2022 at 8:23 PM / IP Logged Link to Post Post Reply Quote audiokid1
I believe the Audiovox alarm module you are referring to is the VOXXSEC.
The VOXXSEC along with an FLCART module that is flashed with DL-FM8 firmware will make for a clean and fairly easy install.

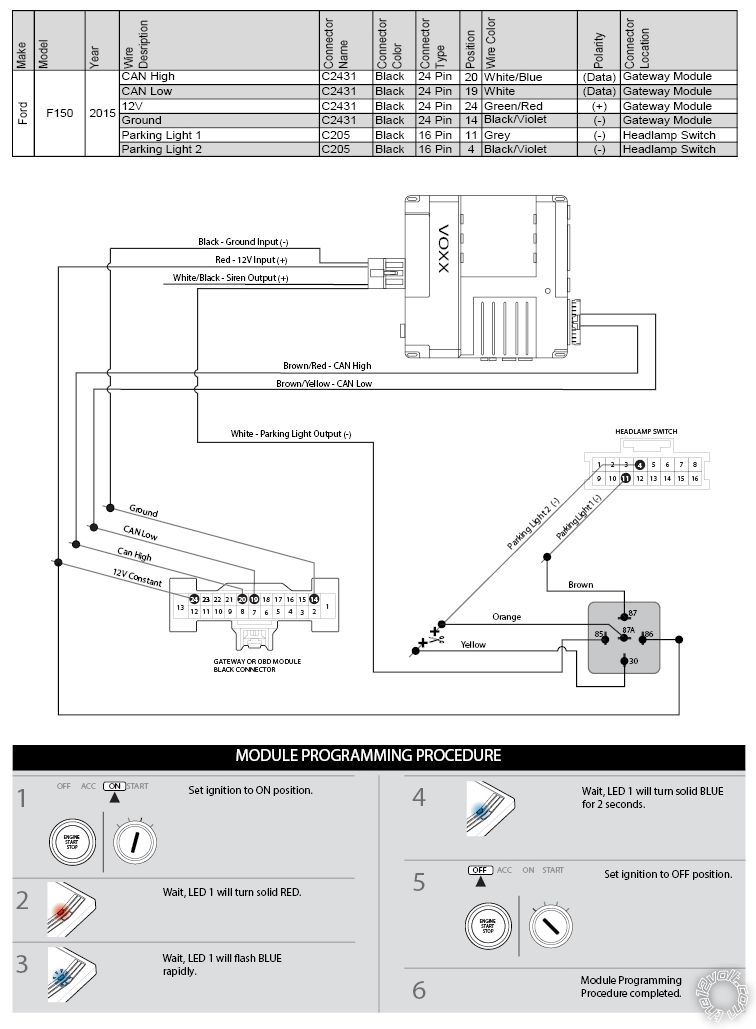

Wire chart, diagram, and programming instructions for the FLCART module after wiring connections are complete
2015 Ford F-150, Alarm Wiring Diagram -- posted image.

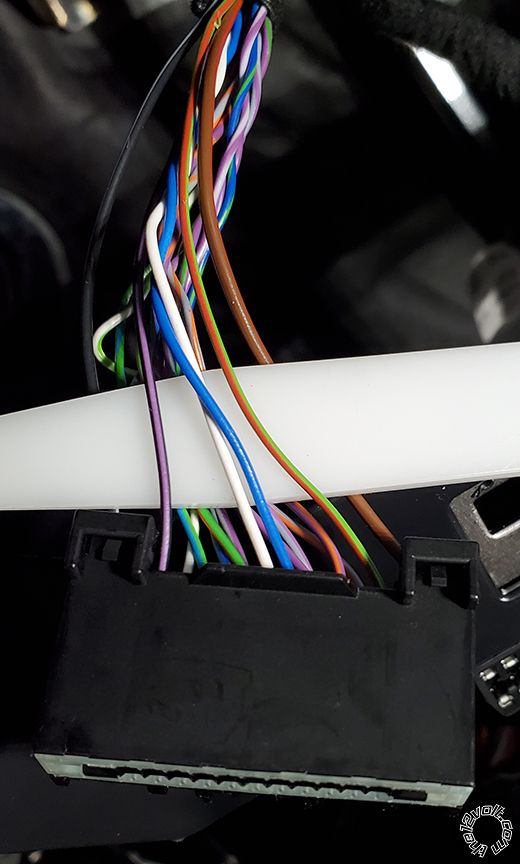

Gateway Connector
Note: The Blue wire in this photo will be White/Blue on your truck
2015 Ford F-150, Alarm Wiring Diagram -- posted image.

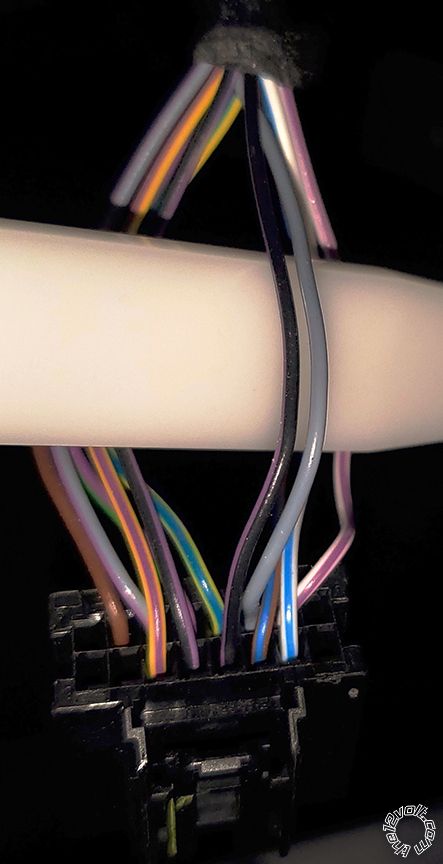

Headlamp Connector
2015 Ford F-150, Alarm Wiring Diagram -- posted image.

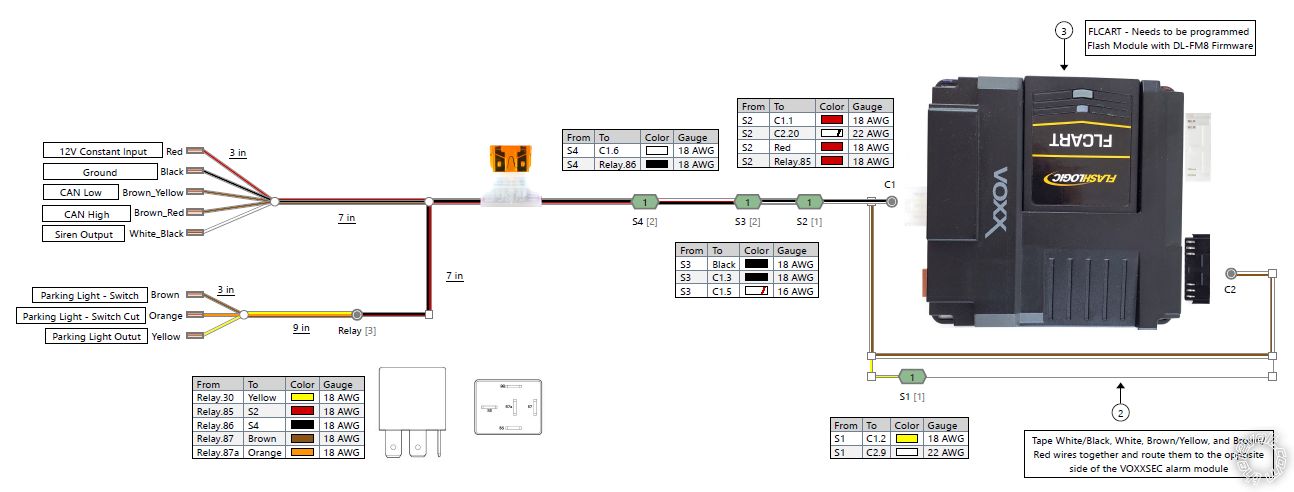

Diagram of how to prep the alarm for this application
2015 Ford F-150, Alarm Wiring Diagram -- posted image.
