2007 Chrysler 300, Window Wiring


Post ReplyPost New Topic
< Prev Topic Next Topic >
jsnali13
Member - Posts: 36
Member spacespace
Joined: June 21, 2012
Location: Ontario, Canada
Posted: December 09, 2022 at 2:15 PM / IP Logged Link to Post Post Reply Quote jsnali13
Hi everyone,
Im looking to put in DEI 535t for the windows in a 2007 chrysler 300.
Would anyone know what the wires are for the 4 windows and where they are?
Most of the wires are on the passenger side of the vehicle, but there is a bunch on the driverside. Im guessing the wires should be there since the driverside does controll 4 windows.
Thanks
mgoetz74
Silver - Posts: 424
Silver spaceThis member consistently provides reliable informationspace
Joined: February 15, 2012
Location: United States
Posted: December 10, 2022 at 9:20 AM / IP Logged Link to Post Post Reply Quote mgoetz74
Left Front Window (Up/Down)     orange/white - orange/lt. green (base models)     A     power window main switch, lt. gray 8 pin plug, pins 6 and 7
Right Front Window (Up/Down)     orange/gray - orange/tan (base models)     A     driver kick, door harness
Left Rear Window (Up/Down)     orange/gray - orange/white     A     driver kick, door harness
Right Rear Window (Up/Down)     orange/dk. blue - orange/lt. blue     A     driver kick, door harness
33 years as a installer now just a retired old guy. Favorite thing to install/topic are remote starts/car alarms. Stop using test lights!!!
jsnali13
Member - Posts: 36
Member spacespace
Joined: June 21, 2012
Location: Ontario, Canada
Posted: December 22, 2022 at 11:26 PM / IP Logged Link to Post Post Reply Quote jsnali13
Thank you!
jsnali13
Member - Posts: 36
Member spacespace
Joined: June 21, 2012
Location: Ontario, Canada
Posted: February 21, 2023 at 10:45 PM / IP Logged Link to Post Post Reply Quote jsnali13
mgoetz74 wrote:
Left Front Window (Up/Down)     orange/white - orange/lt. green (base models)     A     power window main switch, lt. gray 8 pin plug, pins 6 and 7
Right Front Window (Up/Down)     orange/gray - orange/tan (base models)     A     driver kick, door harness
Left Rear Window (Up/Down)     orange/gray - orange/white     A     driver kick, door harness
Right Rear Window (Up/Down)     orange/dk. blue - orange/lt. blue     A     driver kick, door harness
So im lost. I cant finds a orange/light green in the grey plug.
Grey plug has 7 wires, front windows has 5 wires and is a black plug.
I can control both front windows with the grey unplugged.
I did find a schematic and the wires you provided are correct.. did it change for the touring?
I have a 2007 300 touring base model. So no sound system. Regular chip key. Not sure if any of that helps or matters.
Will try to post pics of the wires
jsnali13
Member - Posts: 36
Member spacespace
Joined: June 21, 2012
Location: Ontario, Canada
Posted: February 21, 2023 at 10:53 PM / IP Logged Link to Post Post Reply Quote jsnali13
2007 Chrysler 300, Window Wiring -- posted image.
2007 Chrysler 300, Window Wiring -- posted image.

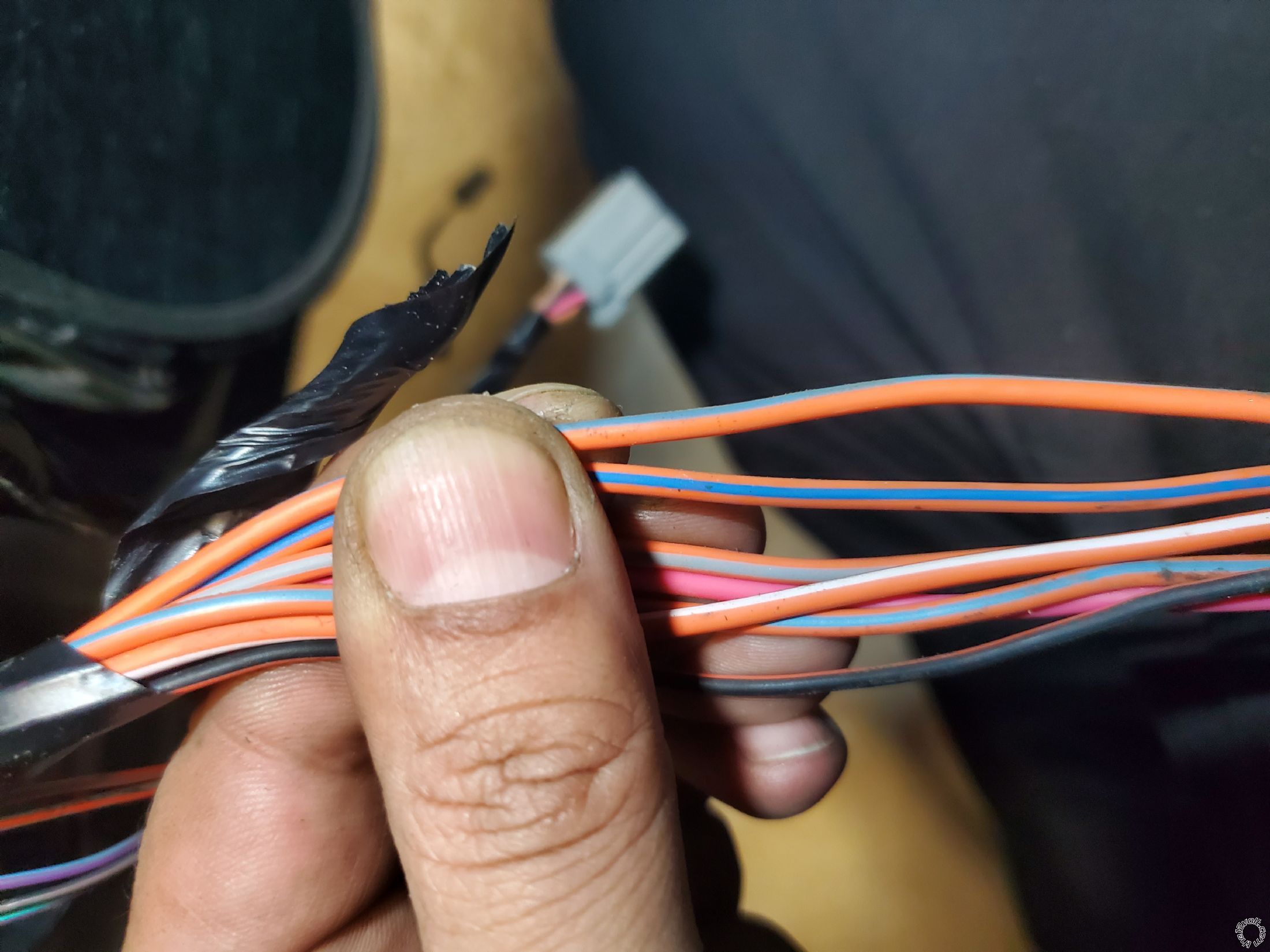

First is the grey plug wires.

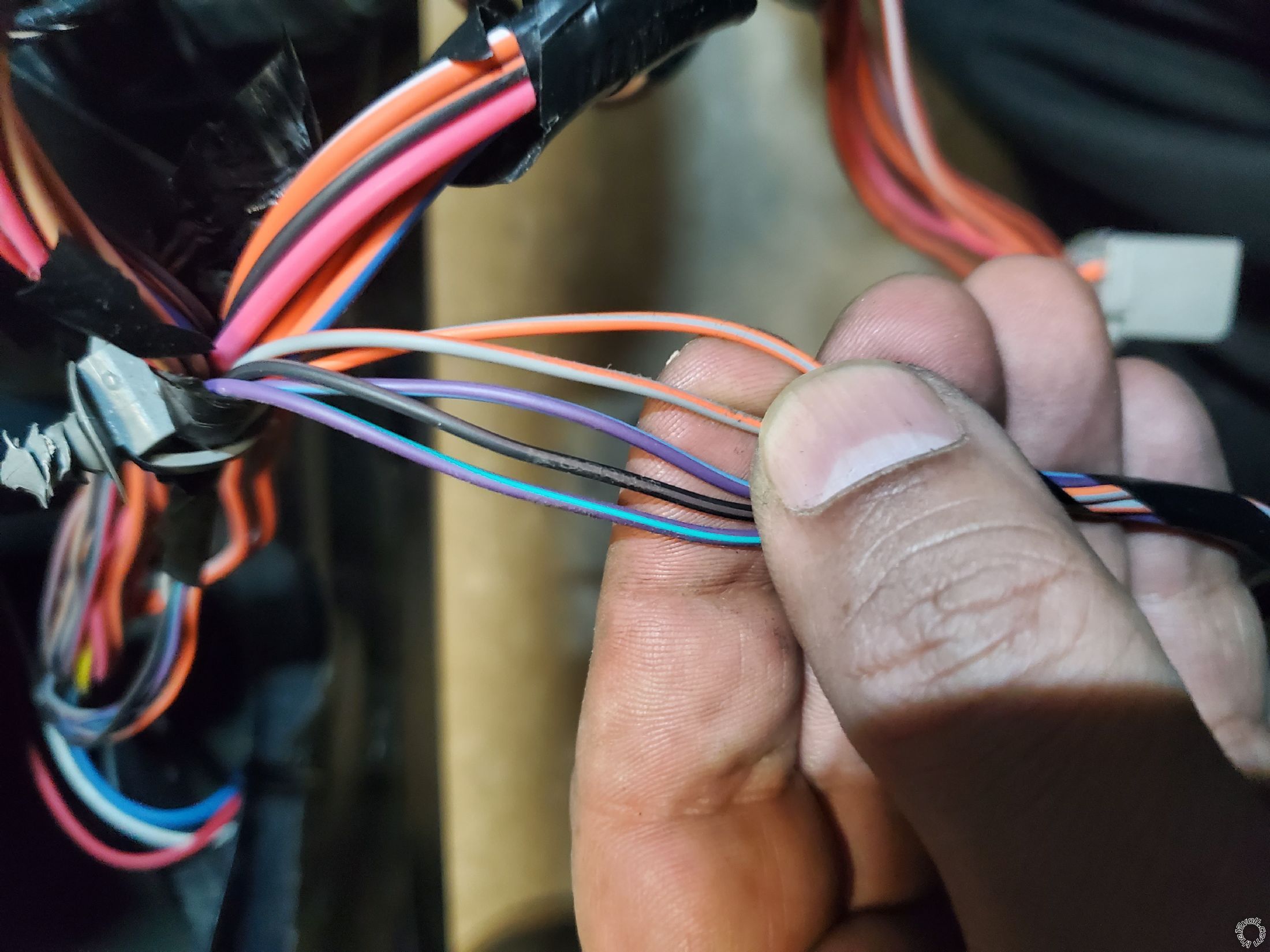

2nd is the black plug wires.
