2008 Chevrolet Trailblazer, Alarm, Remote Start Wiring


Post ReplyPost New Topic
< Prev Topic Next Topic >
greg7793
Member - Posts: 7
Member spacespace
Joined: October 25, 2024
Location: Indiana, United States
Posted: October 25, 2024 at 12:08 PM / IP Logged Link to Post Post Reply Quote greg7793
Looking for wiring diagrams to install alarm with remote start on 08 trailblazer or that match it.
gsb
lee.lopez
Copper - Posts: 95
Copper spacespace
Joined: September 02, 2024
Location: Texas, United States
Posted: October 25, 2024 at 12:57 PM / IP Logged Link to Post Post Reply Quote lee.lopez
greg7793
Member - Posts: 7
Member spacespace
Joined: October 25, 2024
Location: Indiana, United States
Posted: November 09, 2024 at 9:49 AM / IP Logged Link to Post Post Reply Quote greg7793
Can someone help with this? I'm using flcart and prestige 997z. I've flashed it using the web link but after that I needed to modify some settings. It saved everything but I'm not sure if I need to reflash it again. Thanks for any help
gsb
greg7793
Member - Posts: 7
Member spacespace
Joined: October 25, 2024
Location: Indiana, United States
Posted: November 09, 2024 at 3:57 PM / IP Logged Link to Post Post Reply Quote greg7793
i'm working on an 08 chevy trailblazer and have everything but the tach signal wire. Any help would be appreciated. I'm installing a prestige aps997Z with a flcart. I wasn't sure if any other options would work for the tach especially when it gets cold. Thanks again for any help,
gsb
lee.lopez
Copper - Posts: 95
Copper spacespace
Joined: September 02, 2024
Location: Texas, United States
Posted: November 09, 2024 at 8:12 PM / IP Logged Link to Post Post Reply Quote lee.lopez
For tach, check for a white wire at the instrument cluster.

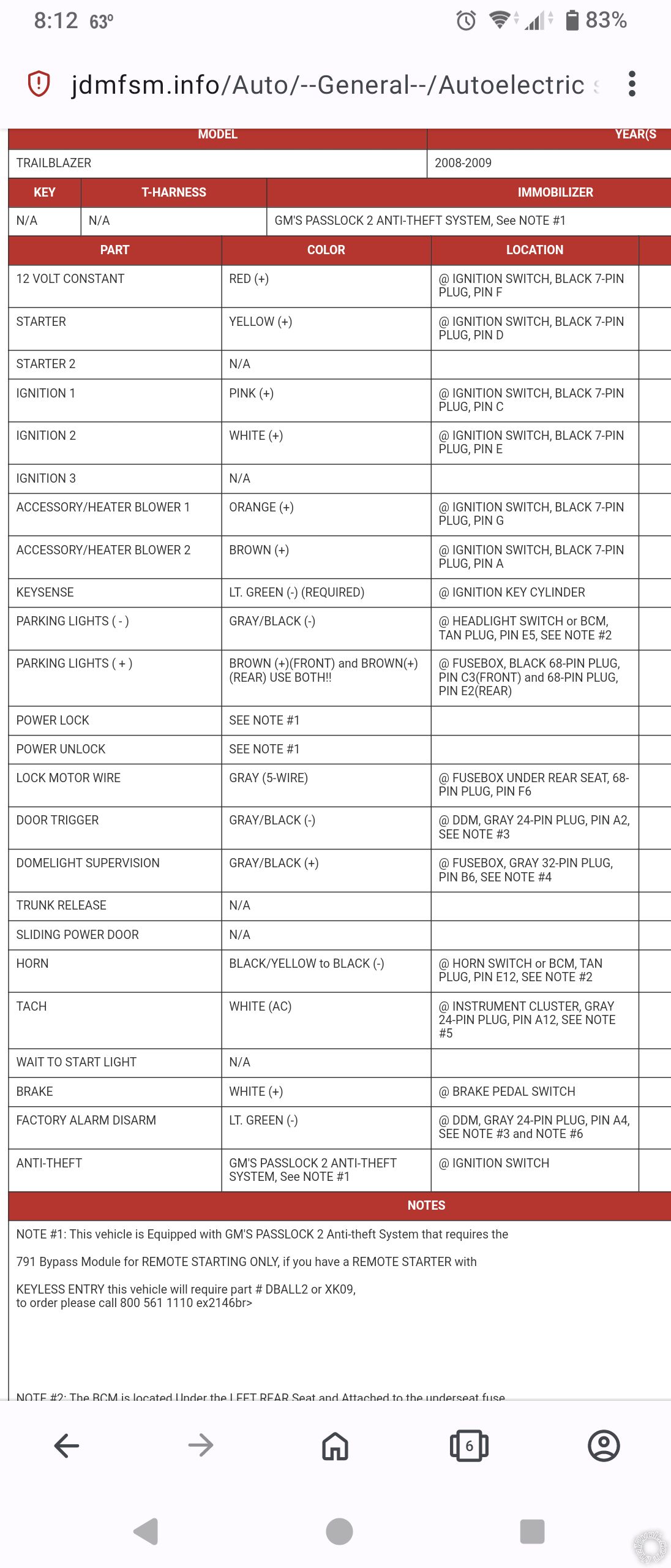

2008 Chevrolet Trailblazer, Alarm, Remote Start Wiring -- posted image.
greg7793
Member - Posts: 7
Member spacespace
Joined: October 25, 2024
Location: Indiana, United States
Posted: November 10, 2024 at 5:27 AM / IP Logged Link to Post Post Reply Quote greg7793
Thanks, I've been looking for a green wire. Can't remember if I read it or someone said it. But I've got the white one, took about 10 minutes. Wish I had found this site a lot sooner, would have saved so much time. Thanks for the reply and info.
gsb
