Hello everyone... I'm new to this forum. I have been told I need to wire in relays to my power windows I installed in my car. I just haven't used any relays before - so I need to know how to wire it up using the common 5 pin relays...

I have two 6 pin rocker switches (power + & - into middle pins and outputting power at either end of switch) and the 12v motors just have the two wires. (the switches are momentary ones - so I'll just hold them down when using the window). Any help appreciated - I need a diagram if possible because I'm not familiar with the terminal names!

cyborg666

Member - Posts: 9

Joined: May 24, 2004

Location: United States

Posted: May 25, 2004 at 1:46 PM / IP Logged

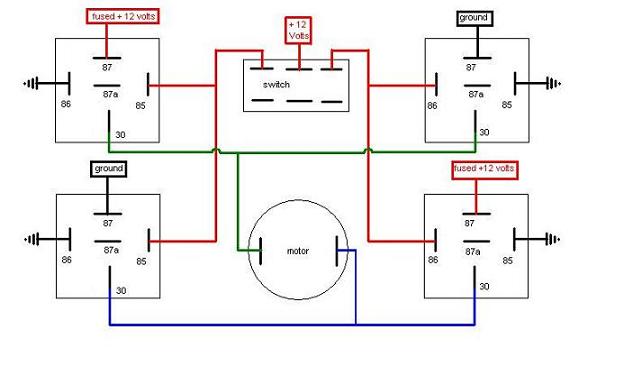

Here is a diagram for one motor with one switch, just copy it for the other motor and switch.

red a9x

Member - Posts: 5

Joined: May 21, 2004

Location: Australia

Posted: May 25, 2004 at 3:48 PM / IP Logged

Thanks heaps for that cyborg666 Relay wiring for two windows -- posted image.

now all I have to do is wire the rest of my car up!

the12volt

Administrator - Posts: 3,955

This member has made a donation to the12volt.com. Click here for more info.

This member has been recognized as an authority in Electrical Theory. Click here for more info.

This member has been recognized as an authority in Mobile Audio and Video. Click here for more info.

This member has been recognized as an authority in Mobile Security and Convenience. Click here for more info.

Joined: March 07, 2002

Location: Louisiana, United States

Posted: May 25, 2004 at 4:40 PM / IP Logged

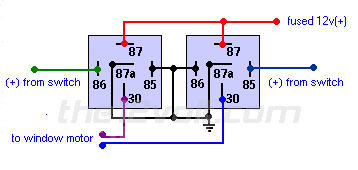

You only need two relays to control each window motor with each switch. It will also be easier to add window modules, if you decide to in the future, with this configuration by having each leg of each window motor resting at ground.

Relay wiring for two windows -- posted image.

the12volt • Support the12volt.com

red a9x

Member - Posts: 5

Joined: May 21, 2004

Location: Australia

Posted: May 26, 2004 at 1:05 AM / IP Logged

Thankyou for that too....
