If anyone can help I installed a 8" flip down monitor and a indash dvd player in a 2002 Dodge grancaravan sport. This is the problem I have lines(noise) going through the monitor when the van is on and the cooling fan is running, if the cooling fans turn off the line go away and monitor looks great. I have changed it's power source & grounds several of times in the van and have the same results, But if I use a outside power source the monitor is fine I also changed the video cable and ran it a different direction.  If anyone can shine of light on this problem I'm open to all suggestion.

toyota_gs400
Member - Posts: 10
Member spacespace
Joined: June 16, 2004
Location: United States
Posted: June 16, 2004 at 12:00 PM / IP Logged
It sounds like your have feedback from your cooling fan.  You can do a quick fix by installing a ground loop isolator on the video line.  You can probably get one at radio shack or an electronics store.  It's pretty much just a 1 to 1 transformer.  Hope that helps.
all tune
Member - Posts: 10
Member spacespace
Joined: June 15, 2004
Location: United States
Posted: June 17, 2004 at 8:40 AM / IP Logged
is there  2 types of isolators?  because when i installed it, the screen would go blank and fuzzy.
toyota_gs400
Member - Posts: 10
Member spacespace
Joined: June 16, 2004
Location: United States
Posted: June 17, 2004 at 8:45 AM / IP Logged
I don't think you installed it correctly.  What wires did you put where?
all tune
Member - Posts: 10
Member spacespace
Joined: June 15, 2004
Location: United States
Posted: June 17, 2004 at 2:26 PM / IP Logged

The Iec gli ground isolator I installed has 2 female inputs and 2 male outputs 1 red ,1 white and 2 ground leads. I installed it between the dvd and monitor video rca, by the way I don't have any noise in my audio. I have also ran just has a test power and ground to my honda battery vehicle running fan on, and in the van the monitor looks good clear no lines. when I move the power and ground back to the vans battery and fan running I get the lines back on the monitor and thats not having any audio, fm mod. plugged in. I will try any thing @ this time

toyota_gs400
Member - Posts: 10
Member spacespace
Joined: June 16, 2004
Location: United States
Posted: June 18, 2004 at 7:46 AM / IP Logged

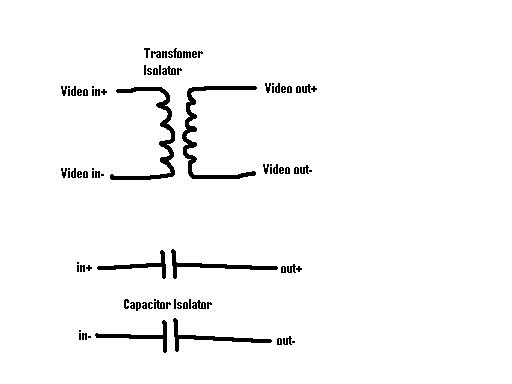

You've got some kind of complicated ground isolator.  When you hooked up the isolator, did you also hook up the two ground leads?  Find out, if you can the wireing for the isolator.  It should be like this:

video noise -- posted image.

Hope that helps.

toyota_gs400
Member - Posts: 10
Member spacespace
Joined: June 16, 2004
Location: United States
Posted: June 18, 2004 at 7:53 AM / IP Logged
video noise -- posted image.
all tune
Member - Posts: 10
Member spacespace
Joined: June 15, 2004
Location: United States
Posted: June 18, 2004 at 9:50 AM / IP Logged
yes i did hook up the ground leads. I'm going to try to get a different isolator, any certain type you suggest. Thank for trying to help me troubleshoot.
sparkie
Platinum - Posts: 2,061
Platinum spacespace
Joined: November 06, 2003
Location: Canada
Posted: June 22, 2004 at 7:00 PM / IP Logged
The problem may be with the fan's gound. Try hooking the fan to the battery's terminals with temporary wires (fuse the positive side for safety) You could have a bad power or ground to the fan or the fan may be bad. You can also try using a power line filter on the screen's power line.
sparky
