Im trying to install a remotestart/arlarm in my s-10 2001 Jimmy.  I have searched the forums and found this so far:

3pin doorlock:

1 blue  negative unlock- 500mA   Tan-Left Steering Column
2 red  (n/a) +500mA for plugin relay  -
3 green  negative lock- 500mA   Gray-Left Steering Column

6pin starter:

1 red  12V+     Red-Ignition Switch Harness
2 red  (n/a) 12V backup+   -
3 brown  (n/a) 2nd ignition output+  ?
4 orange  accessory output+   Orange-Ignition Switch Harness
5 yellow  Ignition output+   Pink-Ignition Switch Harness
6 violet  starter output+    Yellow-Ignition Switch Harness

20pin main harness:

1 grn/wht  Brake Input+    White-Brake Switch
2 blk/gry  (n/a) tach input   -
3 wht/red  (n/a) aux 2 output- 500 mA  -
4 blk/wht  dome light output- 500 mA  Yellow-Light Switch
5 yellow  Ignition input-    ?
6 blue/yel (n/a) parking break input  -
7 blu/wht  Passenger unlock output- 500mA  Tan-Left Steering Column
8 blu/org  (n/a) ground when running  ?
9 blk  ground-     ground
10 red  12v+     Red-Ignition Switch Harness
11 violet  positive door input+   ?
12 green  negative door input-   White (-) Courtesy Light/BCM Front of Console
13 wht/blk  (n/a)negative hood input-  -(works with dome lights)
14 orange  armed output- 500mA   ?
15 vlt/wht  factory disarm output- 500mA  ?
16 wht/vlt  factory rearm output- 500mA  ?
17 brown  Siren output+    Red-Siren wire
18 grey  (n/a) aux 1 output- 500mA  -
19 white  Parking light relay   Light Blue (+) Light Switch
20 brn/wht  Horn output- 500mA   Black Steering Column

Is this acurate knowledge?

I also have a few questions:

Do i need to connect the 2nd ignition output?
Where should i connect the Ignition input?
Will i use the ground when running wire?
Do i need the positive door input wire?

Are there any factory alarms systems i have to worry about?

Should i connect the armed output, factory disarm, and factory rearm wires?

mo12v
Platinum - Nominee - Posts: 2,748
Platinum - Nominee spaceThis member consistently provides reliable informationspace
Joined: September 30, 2003
Location: Afghanistan
Posted: October 08, 2004 at 10:03 AM / IP Logged

That is for your Alarm?????

Do U need wiring for Vehicle?
<<<<<<Do i need to connect the 2nd ignition output?>>>>
YES
<<<<<<Where should i connect the Ignition input?>>>>>>
Ignition Switch
<<<<<<Will i use the ground when running wire?>>>>>>>
YES for PassLock
<<<<<<<Do i need the positive door input wire?>>>>>>>
NO

Constant 12 voltsRED (2)IGNITION SWITCH HARNESS
Ignition 12 voltsPINKIGNITION SWITCH HARNESS
StarterYELLOWIGNITION SWITCH HARNESS
Dome LightWHITE (-)AT COURTESY LIGHT ABOVE THE DASH *
Trunk Pin SwitchDOME LIGHTAT COURTESY LIGHT ABOVE THE DASH
Parking LampL BLUE (+)AT LIGHT SWITCH HARNESS
Power LockL BLUE (+)

AT MODULE ABOVE DRIVER KICK PANEL

Power UnlockWHITE (+)AT MODULE ABOVE DRIVER KICK PANEL
* At The BCM Located Behind The Driver's Dash In Front Of The Center Console, Tan Covers Driver's Doors,Orange Covers Passenger's Door,Blue/White Covers Rear Doors, And Pink/Black Covers The Hatch.Diode Isolation Needed Cathode (Band) Side Of Diode Faces OEM Wires.  Positive Pulse Door Locks

Accessories
Window UpD\ D BLUE P\ L BLUE D\ D GREEN P\ L GREEN @ MAIN SWITCH
Window DownF/ BROWN F/ TAN R/ VIOLET R/ VIOLET
Ign Key WarnL GREEN (-)STEERING COLUMN HARNESS
Trunk ReleaseBLACK (-)AT RELEASE SWITCH IN DASH
OEM HornBLACK (-)STEERING COLUMN HARNESS
HeadlightsWHITE (+)AT LIGHT SWITCH HARNESS (+)
OEM Alarm ArmTAN (-)AT BODY CONTROL MODULE IN FRONT OF
OEM Alarm DisarmL GREEN (-)CENTER CONSOLE
Reversal Rest At Ground Power Window Circuit

Remote Start
Tach SignalWHITEAT IGNITION CONTROL MODULE *
Ignition #2WHITEIGNITION SWITCH HARNESS
Ignition #3ORANGEIGNITION SWITCH HARNESS
AccessoryWHITEIGNITION SWITCH HARNESS
Neutral SafetyNOT GROUNDING TYPE -OEM SWITCH OPENS STARTER CIRCUIT
Brake LightWHITE (+)AT SWITCH ABOVE BRAKE PEDAL
Reverse LightL GREEN (+)AT UNDER HOOD FUSE BOX
Rear Window DefrostN/ATIMER BUILT INTO SWITCH
* Ignition Control Module Is Located On The Passenger Side Of The Engine Compartment. Wire Can Also Be Found As WHITE At Inst Cluster Or PCM On Passenger Side Of Engine Copmartment.
G.M. PASSLOCK II Diagram.
MO
Don't Learn from Others Mistakes
You Might Be the One That Knows.
pancoaster
Member - Posts: 6
Member spacespace
Joined: October 07, 2004
Posted: October 08, 2004 at 11:38 AM / IP Logged

thanx

pancoaster
Member - Posts: 6
Member spacespace
Joined: October 07, 2004
Posted: October 08, 2004 at 2:54 PM / IP Logged

i have two more questions concerning a couple wires.

ground when running (-) 500mA: ?

Connect to an optional factory security bypass module if needed.

armed output- 500mA: ?

Provides a ground output while armed to activate a relay for starter defeat and anti-grind protection.

should i use these wires from my unit?

also, the unit i bought only has first and second ignition output wires.  what should i connect to the third ignition wire?

mo12v
Platinum - Nominee - Posts: 2,748
Platinum - Nominee spaceThis member consistently provides reliable informationspace
Joined: September 30, 2003
Location: Afghanistan
Posted: October 08, 2004 at 4:52 PM / IP Logged

<<<<<ground when running (-) 500mA: ?

Connect to an optional factory security bypass module if needed.>>>>>
Connect to the PASSLock unit for this vehicle

<<<<<armed output- 500mA: ?

Provides a ground output while armed to activate a relay for starter defeat and anti-grind protection.>>>>>>
Goes to Relay for Starter Kill  ( U don't really need it )

should i use these wires from my unit?

<<<<also, the unit i bought only has first and second ignition output wires.  what should i connect to the third ignition wire?>>>>>

U will need a SPDT Relay to hook to your Remote Start and 3rd Ignition wire.
( If U R not sure on how to install, U probably shoul seek professional help ) Serious damage may result

MO
Don't Learn from Others Mistakes
You Might Be the One That Knows.
pancoaster
Member - Posts: 6
Member spacespace
Joined: October 07, 2004
Posted: October 09, 2004 at 5:58 PM / IP Logged

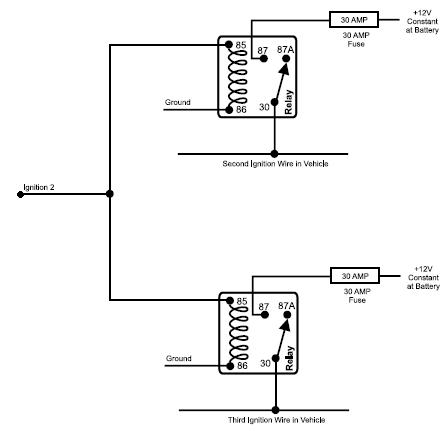

is this the correct diagram for making a 3rd ignition wire:

2001 jimmy remote start/alarm -- posted image.

pancoaster
Member - Posts: 6
Member spacespace
Joined: October 07, 2004
Posted: October 09, 2004 at 6:03 PM / IP Logged

image wont work, typing it:

2nd ignition wire to (85) on two separate relays.  12v to (87) on each relay.  ground to (86) on both relays. 2nd ignition wire to (30) on one relay.  3rd ignition wire to (30) on other relay.

mo12v
Platinum - Nominee - Posts: 2,748
Platinum - Nominee spaceThis member consistently provides reliable informationspace
Joined: September 30, 2003
Location: Afghanistan
Posted: October 09, 2004 at 8:50 PM / IP Logged
If U don't have an Extra - Output from your Module, that will work.
Make sure U use 12 Guage wire on Pin 30 & Pin 87
MO
Don't Learn from Others Mistakes
You Might Be the One That Knows.
