mono subs, dual speaker posts, drop ohms?


Post ReplyPost New Topic
< Prev Topic Next Topic >
dudek38
Copper - Posts: 250
Copper spaceThis member has made a donation to the12volt.com. Click here for more info.spacespace
Joined: March 28, 2004
Location: United States
Posted: October 26, 2004 at 9:53 PM / IP Logged
ok, i remember a similar topic a month ago, but no one touched on if u use both sides, if it drops the ohms or must you wire in parallel? the manual says there is two sets of terminals for wiring flexibility.
owner of
Motion Marine & Car Audio
the florida keys
jstruckman
Copper - Posts: 465
Copper spacespace
Joined: May 03, 2004
Posted: October 26, 2004 at 10:15 PM / IP Logged

it wont matter which posts you use as long as the are single voice coil subs, if in fact they are dual voice coil subs then you will have to use both sets of posts. The old school Kicker Comps always had two sets of posts and i am sure those are the not the only subs that did, it has been so long since i have used an SVC subwoofer.

Jazzy

Rushman
Silver - Posts: 380
Silver spacespace
Joined: September 28, 2004
Location: United States
Posted: October 26, 2004 at 10:55 PM / IP Logged
I know this isnt the right way to hook up DVCs but a person I know has a pair of 10" Audiobahn (Audiobreaks)DVCs on an old school Punch 60 amp. Strange thing is he has them hooked up as SVCs only on one set of the terminals and they do play but Ive heard doing this can damage the speaker over time. Can anyone Veryfy this?
99 F-one fitty
Pioneer Premier H/U
Alpine EQ
Kicker 1200 amp
4 Kicker comp 10s
6 kicker SS65.2 components
stevdart
Platinum - Posts: 5,816
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Mobile Audio and Video. Click here for more info.spaceThis member consistently provides reliable informationspace
Joined: January 24, 2004
Location: Pennsylvania, United States
Posted: October 26, 2004 at 11:38 PM / IP Logged

dudek38 wrote:
ok, i remember a similar topic a month ago, but no one touched on if u use both sides, if it drops the ohms or must you wire in parallel? the manual says there is two sets of terminals for wiring flexibility.

Yes, just like parallel-wiring voice coils or two subwoofers.  The load that is wired to one set of terminals is paralleled within the amp to the load on the second set.  Take my little diagram below:  say the subs are DVC 4 ohm.  You would get the same results from each way of wiring shown.  The top sub has coils individually connected to the amp terminals, so the coils are paralleled down to 2 ohms at the amp.

The bottom sub has the coils wired on the sub in parallel.  Then one set of wires goes to the amp.  They can attach to either red and either black.  Normally, an amp should have a diagram showing to use a red on one side and a black on the other side...so later you don't forget and wire another sub to it.

Likewise, two subs can be connected to the amp using the two sets of terminals, and the amp will parallel the subs.  e.g. two 4 ohm subs will become a 2 ohm load.

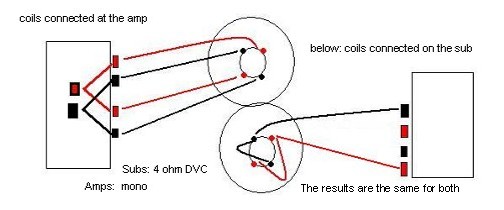

mono subs, dual speaker posts, drop ohms? -- posted image.

Build the box so that it performs well in the worst case scenario and, in return, it will reward you at all times.
stevdart
Platinum - Posts: 5,816
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Mobile Audio and Video. Click here for more info.spaceThis member consistently provides reliable informationspace
Joined: January 24, 2004
Location: Pennsylvania, United States
Posted: October 26, 2004 at 11:55 PM / IP Logged

Rushman wrote:
I know this isnt the right way to hook up DVCs but a person I know has a pair of 10" Audiobahn (Audiobreaks)DVCs on an old school Punch 60 amp. Strange thing is he has them hooked up as SVCs only on one set of the terminals and they do play but Ive heard doing this can damage the speaker over time. Can anyone Veryfy this?

I'm trying to picture that.  A total of 4 voice coils all wired to the same two terminals?  That would be parallel/parallel.  If the subs are 4 ohm DVC, then each sub becomes 2 ohm, then the two subs are paralleled together for 1 ohm.  One set of terminals on a mono amp is all that is required for hookup.  Just know that everything connected to the terminals is paralleled.

Now if you're saying he is using only one coil on each sub, then yes the subs will be destroyed.  He must have been trying to avoid too low of a load on the amp.  He would have gotten the same output by using only one sub and wiring it correctly.

Build the box so that it performs well in the worst case scenario and, in return, it will reward you at all times.
Rushman
Silver - Posts: 380
Silver spacespace
Joined: September 28, 2004
Location: United States
Posted: October 27, 2004 at 12:07 AM / IP Logged
Yes He's only using one coil on each sub and thank you for confirming about damaging the sub. I try to tell him that but some poeple are stuborn. Its his money and his car. The Odd part is This system has been running like that for several months and I keep waiting for the subs to go out but they still hit. Beats me?
99 F-one fitty
Pioneer Premier H/U
Alpine EQ
Kicker 1200 amp
4 Kicker comp 10s
6 kicker SS65.2 components
stevdart
Platinum - Posts: 5,816
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Mobile Audio and Video. Click here for more info.spaceThis member consistently provides reliable informationspace
Joined: January 24, 2004
Location: Pennsylvania, United States
Posted: October 27, 2004 at 12:19 AM / IP Logged
Sorry, it's not a real confirmation because I haven't ever destroyed a sub doing that.  Maybe your friend can confirm this, eh?
Build the box so that it performs well in the worst case scenario and, in return, it will reward you at all times.
Francious70
Silver - Posts: 629
Silver spacespace
Joined: July 26, 2004
Location: United States
Posted: October 27, 2004 at 12:39 AM / IP Logged

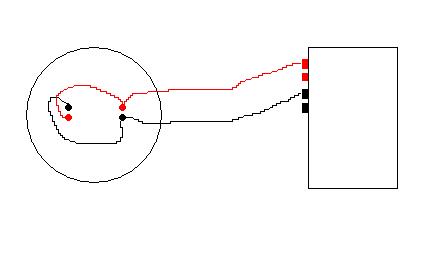

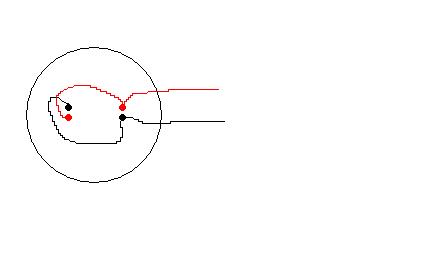

So, Steve, what you are saying is if I have a DVC 4 ohm sub wired in parallel like so, mono subs, dual speaker posts, drop ohms? -- posted image.
I would have a 2 ohm load. Now, if I connected it to a mono-block amp internally wired in parallel (not bridged) like so,

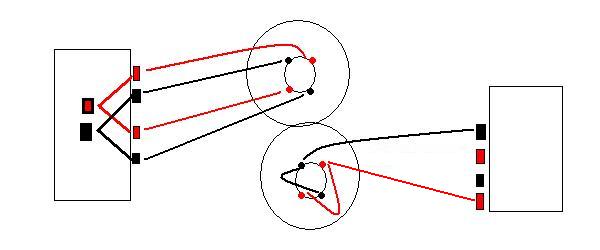

mono subs, dual speaker posts, drop ohms? -- posted image.
that I would now have a 1 ohm load?? If so, that dangerous.
stevdart
Platinum - Posts: 5,816
Platinum spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Mobile Audio and Video. Click here for more info.spaceThis member consistently provides reliable informationspace
Joined: January 24, 2004
Location: Pennsylvania, United States
Posted: October 27, 2004 at 7:33 AM / IP Logged

I didn't say that.  Your wiring to the amp is just one + and one -, so the amp is not paralleling anything.  That's a 2 ohm load you show.  Now, if another sub just like that one were connected to the amp's two free terminals, it would get connected with the first one at the amp...and then the amp would have a 1 ohm load.

Same diagram as my first one but with added labelling:

mono subs, dual speaker posts, drop ohms? -- posted image.

Build the box so that it performs well in the worst case scenario and, in return, it will reward you at all times.
Steven Kephart
Platinum - Posts: 1,737
Platinum spaceThis member has been recognized as an authority in Mobile Audio and Video. Click here for more info.spaceThis member consistently provides reliable informationspace
Joined: November 06, 2003
Location: Oregon, United States
Posted: October 27, 2004 at 11:47 AM / IP Logged

Actually running only one set of voice coils in a dual voice coil sub will not damage it.  It will reduce your power handling, so you will want to be careful.  What changes is the Qts of the speaker.  Here's a link to a tech paper on this topic: http://www.adireaudio.com/Files/TechPapers/DualVoiceCoilDrivers.pdf

Steven Kephart

Adire Audio

Page of 2
