2004 Subaru WRX STI Neutral Safety Switch - Tip


Post ReplyPost New Topic
< Prev Topic Next Topic >
mps446
Member - Posts: 7
Member spacespace
Joined: November 22, 2002
Location: United States
Posted: November 24, 2004 at 7:08 AM / IP Logged
Hello, I recented got a hold of the WRX / STI service repair manual
For those of you looking for the location of the neutral safety switch is is located at the ecm connecter B137 pin D9
The ecm is located under the passanger seat carpet toward the front of the car, if you need help locating it and getting to it let me know
If you have any other request, let me know. i might be able to locate something in the manual for you

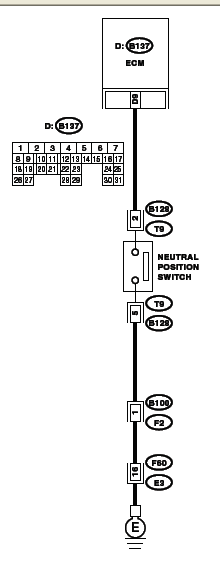

2004 Subaru WRX STI Neutral Safety Switch - Tip -- posted image.
