hi,

I have a 98 Plymouth Neon and here on the CD of 12Volt show me : ignition #1, ignition #2 and Ignition #. what is it?

I want to find the color for: +12v ; ACC ; ON ; START

please can anyone help me before I make any mistake?

thank you

draasch

Gold - Posts: 2,172

Joined: February 07, 2003

Location: Florida, United States

Posted: November 26, 2004 at 9:51 PM / IP Logged

Make: Plymouth

Model: Neon

Year: 1998

This Database Was Last Updated On: 9/16/2004

Index #: 1205

Alarm

Constant 12 volts PINK/BLACK & RED IGNITION SWITCH HARNESS

Ignition 12 volts D BLUE IGNITION SWITCH HARNESS

Starter YELLOW IGNITION SWITCH HARNESS

Dome Light YELLOW (-) AT ANY PIN SWITCH *

Trunk Pin Switch GRAY/BLACK (-) AT LIGHT IN TRUNK

Parking Lamp BLACK / YELLOW (+) AT HEADLIGHT SWITCH **

Power Lock PINK/VIOLET BLUE 16 PIN CONNECTOR #203

Power Unlock ORANGE / VIOLET IN DRIVER KICK PANEL

* YELLOW (-) Wire Is Also Located In A GRAY 20 Pin Connector Behind The Driver Dash. ** BLACK / YELLOW (+) Wire Is Also Located In A GRAY 20 Pin Connector Behind The Driver Dash. #203- See Reversal Rest At Ground Door Lock Diagram.

Remote Start

Tach Signal GRAY/L BLUE AT POWERTRAIN CONTROL MODULE *

Ignition #2 BLACK/ ORANGE IGNITION SWITCH HARNESS

Ignition #3 N/A

Accessory BLACK/ WHITE IGNITION SWITCH HARNESS

Neutral Safety NOT GROUNDING TYPE - OEM SWITCH OPENS STARTER CIRCUIT

Brake Light WHITE/ TAN (+) AT SWITCH ABOVE BRAKE PEDAL

Reverse Light VIOLET/BLACK (+) AT SWITCH ON TRANSMISSION

Rear Window Defrost N/A TIMER BUILT INTO SWITCH

* Powertrain Control Module Is Located On Driver Strut Tower

Good Luck

David

Ace Security

813-376-9778

Tampa

Donate to the 12volt

richardic

Member - Posts: 4

Joined: November 26, 2004

Location: United States

Posted: November 26, 2004 at 10:03 PM / IP Logged

can you fill the right color here for me please?

+12v =

ACC =

ON =

START =

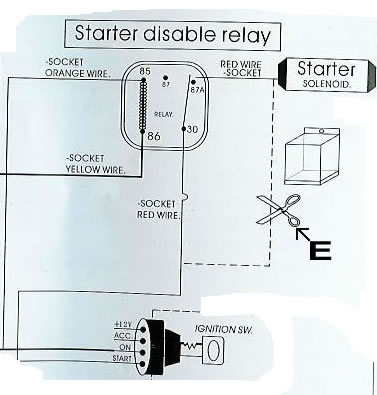

and on starter (motor) which wire sould I get from the relay?

thank you

draasch

Gold - Posts: 2,172

Joined: February 07, 2003

Location: Florida, United States

Posted: November 26, 2004 at 10:09 PM / IP Logged

+12v =Ignition #2 BLACK/ ORANGE IGNITION SWITCH HARNESS

ACC =Accessory BLACK/ WHITE IGNITION SWITCH HARNESS

ON =Ignition 12 volts D BLUE IGNITION SWITCH HARNESS

START=Starter YELLOW IGNITION SWITCH HARNESS

Good Luck

David

Ace Security

813-376-9778

Tampa

Donate to the 12volt

richardic

Member - Posts: 4

Joined: November 26, 2004

Location: United States

Posted: November 27, 2004 at 12:17 PM / IP Logged

thank you very much

the 87a and the 30 on Relay they go to the same function?

because the Start (on ignition) goes to the STARTER (motor) right or wrong?

because on STARTER (motor) have 3 diferents wires and I don't know which one to chose, and if on ignition the Start is the same as on STARTER (motor) will save me time ? right or wrong?

I'm just trying to sntall by my self!! its easy but before ask then make any mistakes

thank you guys

richardic

Member - Posts: 4

Joined: November 26, 2004

Location: United States

Posted: November 27, 2004 at 1:05 PM / IP Logged

thank you very much David
