Box Design with WinISD help


Post ReplyPost New Topic
< Prev Topic Next Topic >
mrdragon
Copper - Posts: 121
Copper spacespace
Joined: October 08, 2003
Location: Australia
Posted: January 11, 2005 at 2:57 PM / IP Logged
Hi guys,
Try to design my Pioneer TSW305C with WinISD....and this is results:
Box Design with WinISD help - Last Post -- posted image.
From what i heard the graph "yellow" line need to be with 0db to -3db, as it show on this design the line is way over, wat r another alternatives so that the yellow line r within 0db to -3db???
Cheers :)
Drewt
Copper - Posts: 183
Copper spacespace
Joined: January 04, 2005
Location: United States
Posted: January 11, 2005 at 3:53 PM / IP Logged
put it in a sealed box
mrdragon
Copper - Posts: 121
Copper spacespace
Joined: October 08, 2003
Location: Australia
Posted: January 11, 2005 at 4:02 PM / IP Logged
Nope seal is even worse!!!
DYohn
Moderator - Posts: 10,741
Moderator spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Electrical Theory. Click here for more info.spaceThis member has been recognized as an authority in Mobile Audio and Video. Click here for more info.spacespace
Joined: April 22, 2003
Location: Arizona, United States
Posted: January 11, 2005 at 4:34 PM / IP Logged
Looks to me like your enclosure is too large.  Why did you use 78.4 litres when the Pioneer recomendation for a ported enclosure is 49.7 litres?
Support the12volt.com
mrdragon
Copper - Posts: 121
Copper spacespace
Joined: October 08, 2003
Location: Australia
Posted: January 11, 2005 at 5:24 PM / IP Logged
Ok this is what Pioneer recommended...i see not much of a diff :(
Box Design with WinISD help - Last Post -- posted image.
DYohn
Moderator - Posts: 10,741
Moderator spaceThis member has made a donation to the12volt.com. Click here for more info.spaceThis member has been recognized as an authority in Electrical Theory. Click here for more info.spaceThis member has been recognized as an authority in Mobile Audio and Video. Click here for more info.spacespace
Joined: April 22, 2003
Location: Arizona, United States
Posted: January 11, 2005 at 5:56 PM / IP Logged

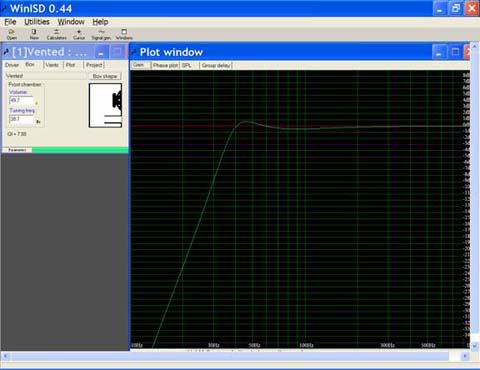

Here's the curve I get from WIN ISD using the correct driver parameters (that I posted in your other thread.)

Box Design with WinISD help - Last Post -- posted image.

Support the12volt.com
mrdragon
Copper - Posts: 121
Copper spacespace
Joined: October 08, 2003
Location: Australia
Posted: January 11, 2005 at 9:53 PM / IP Logged
DYohn here is the Pioneer sub TWS-305C (SVC)Thiele/Small specs of the driver....
Pioneer TS-W305C
Size: 12"
Nominal Power: 400W
Max Power: 800W
Impredance: 4 Ohms
Sensivity: 89dB/W
Frequency: 18-2,000Hz
Displacement: 0.083cu.ft
Recv: 3.0
Levc: 2.107
Fs: 32.7
Qes: 0.348
Qts: 0.340
Vas: 1.875cu.ft
Rms: 1.875
Mms: 138.20
Cms: 1.717x10 -4
Diam: 242cm
BL: 15.988
Xmas: 9.2mm
Pioneer recommend enclousure volume for sealed is: 1.5cu.ft
and vented is 1.65cu.ft + 3" port x 6" length
Can you double check for me????
Thanks :)
